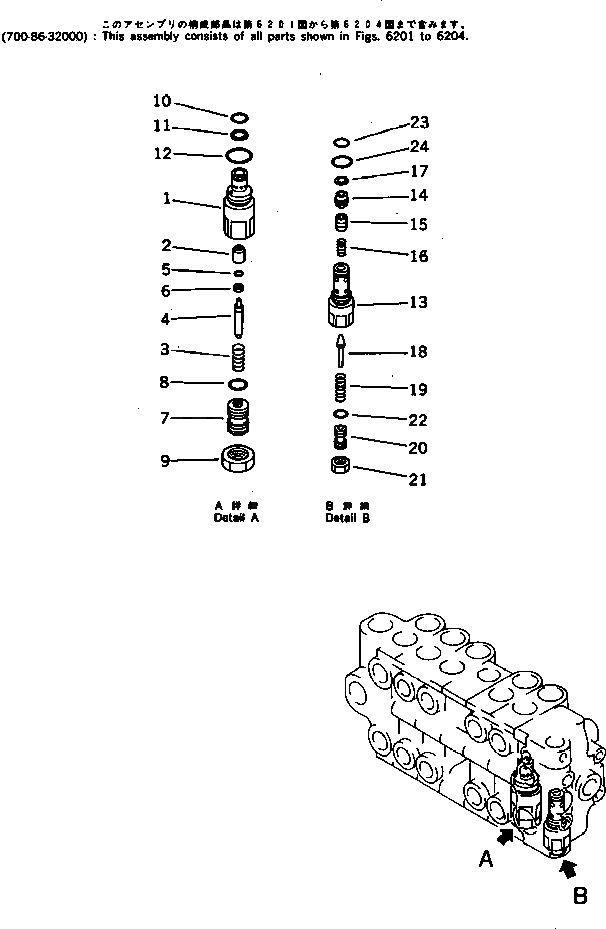

Запчасти Komatsu PF3-1 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-32000

VALVE ASS'Y,CONTROL

|1

700-81-71001

SAFETY VALVE ASS'Y,SAFETY

1

SLEEVE

2

POPPET

3

SPRING

4

PISTON

5

O-RING

6

SEAL

7

SCREW

8

O-RING

9

NUT

10

700-22-11410

O-RING

11

700-80-64220

RING,BACK-UP

12

07002-03034

O-RING

|13

700-26-53000

VALVE ASS'Y,RELIEF

13

SLEEVE

14

700-20-51540

RETAINER

15

VALVE

16

700-20-51610

SPRING

17

700-20-51550

RING,SNAP

18

700-80-61190

POPPET

19

700-20-51580

SPRING

20

700-20-51340

SCREW

21

01582-11411

NUT

22

07000-02011

O-RING

23

700-22-11410

O-RING

24

07002-02434

O-RING
