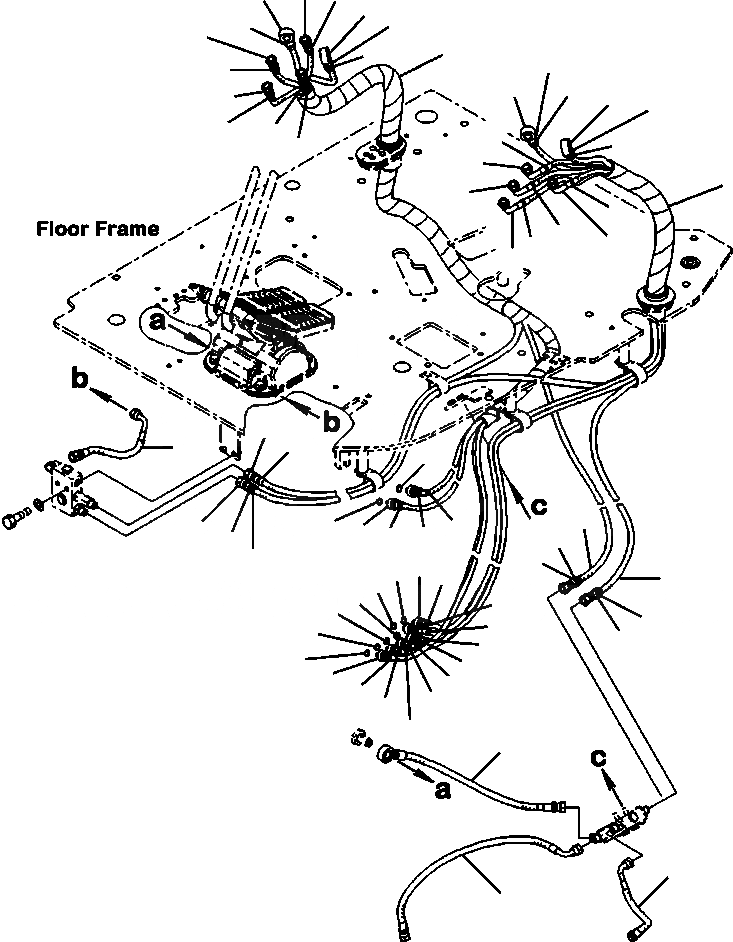

Запчасти Komatsu PC88MR-8 K-7 ГИДРАВЛИКА РАБОЧЕЕ ОБОРУДОВАНИЕ УПРАВЛ-Е PROPORTION PRESSURE УПРАВЛ-Е (PPC) КОНТУР OPERATOR\XD S ОБСТАНОВКА И СИСТЕМА УПРАВЛЕНИЯ

1

22P-62-15151

HOSE, L=460 MM

2

22P-62-15371

HOSE, L=240 MM

3

22P-62-15201

HOSE

4

22P-62-15331

HOSE, L=1610 MM

5

20U-62-22190

O-RING

6

22P-62-15291

HOSE, L=1600 MM

7

20U-62-22190

O-RING

8

22P-62-15231

HOSE, L=1580 MM

9

20U-62-22190

O-RING

10

22P-62-15331

HOSE, L=1610 MM

11

20U-62-22190

O-RING

12

22P-62-15211

HOSE, L=1300 MM

13

22P-62-15121

HOSE, L=2040 MM

14

20Y-62-22860

BAND, BROWN

15

20Y-62-22850

BAND, GREEN

16

20Y-62-22830

BAND, WHITE

17

20Y-62-22820

BAND, BLUE

18

21U-62-34740

BAND, ORANGE

19

20Y-62-22790

BAND, RED

20

22P-62-15101

HOSE

21

22P-62-15141

HOSE, L=2100 MM

22

20U-62-22190

O-RING

23

22P-62-15131

HOSE, L=2090 MM

24

20U-62-22190

O-RING

25

22P-62-15141

HOSE, L=2100 MM

26

20U-62-22190

O-RING

27

22P-62-15281

HOSE, L=2120 MM

28

20U-62-22190

O-RING

29

22P-62-15111

HOSE, L=1650 MM

30

22P-62-15191

HOSE, L=2330 MM

31

20Y-62-22840

BAND, BLACK

32

20Y-62-22820

BAND, BLUE

33

20Y-62-22810

BAND, YELLOW

34

20Y-62-22790

BAND, RED

35

22P-62-15261

HOSE, L=250MM

36

02761-00205

HOSE, FACE SEAL TYPE
