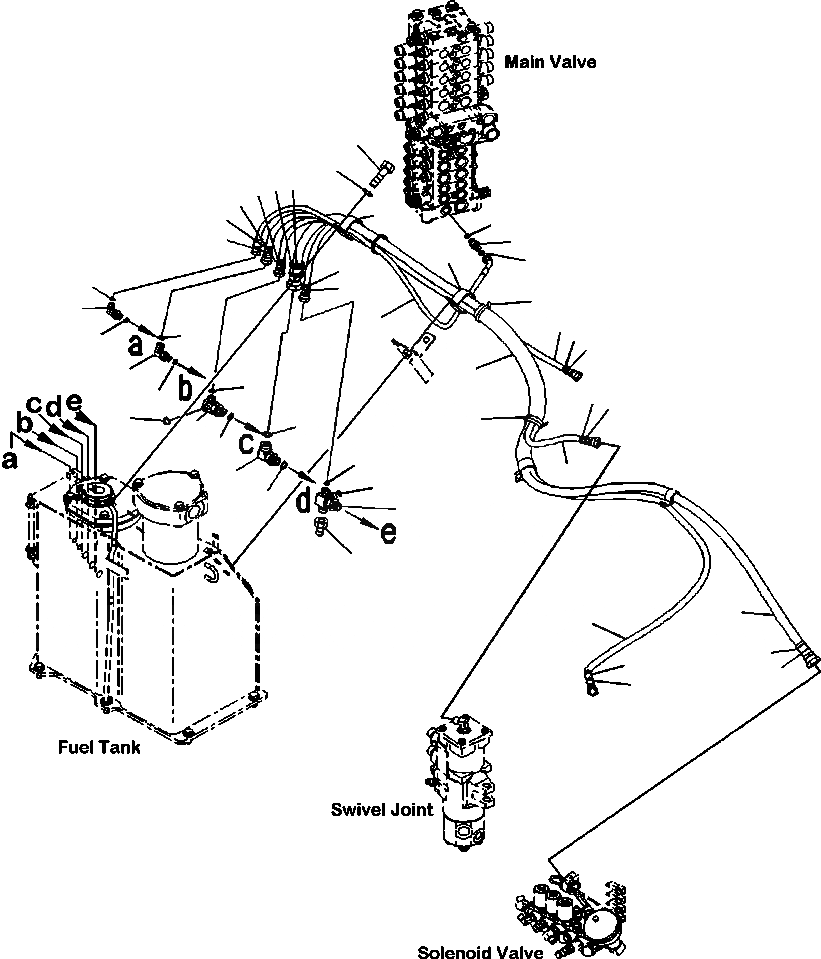

Запчасти Komatsu PC88MR-8 H- ГИДРОЛИНИЯ ДРЕНАЖН. КОНТУР - С ДОПОЛН. АКТУАТОРS И СТРЕЛА HOLDING КЛАПАН (/) ГИДРАВЛИКА

1

22P-62-12111

HOSE ASSEMBLY

2

22P-62-11461

HOSE, L=2390 MM

3

22P-62-11471

HOSE, L=1060 MM

4

22P-62-11481

HOSE, L=1420 MM

5

22P-62-11611

HOSE, L=2540 MM

6

08034-20519

BAND

7

21U-62-34720

BAND, BLACK

8

21U-62-34730

BAND, GREEN

9

21U-62-34750

BAND, BLUE

10

21U-62-34770

BAND, WHITE

11

20Y-62-45690

TEE

12

21W-62-46240

ELBOW

13

02896-11012

O-RING

14

02789-10422

PLUG, FACE SEAL TYPE

15

07002-12034

O-RING

16

02896-11009

O-RING

17

02896-11008

O-RING

18

02781-0021D

UNION

19

07002-11423

O-RING

20

02896-11008

O-RING

21

22P-62-11430

HOSE ASSEMBLY, L=800 MM

22

20Y-62-15950

CLIP

23

01010-81220

BOLT

24

01643-31232

WASHER

25

02782-10311

ELBOW

26

07002-11423

O-RING

27

02896-11009

O-RING

28

02782-10210

ELBOW

29

07002-11423

O-RING

30

02896-11008

O-RING

31

02782-10516

ELBOW

32

07002-12034

O-RING

33

02896-11015

O-RING
