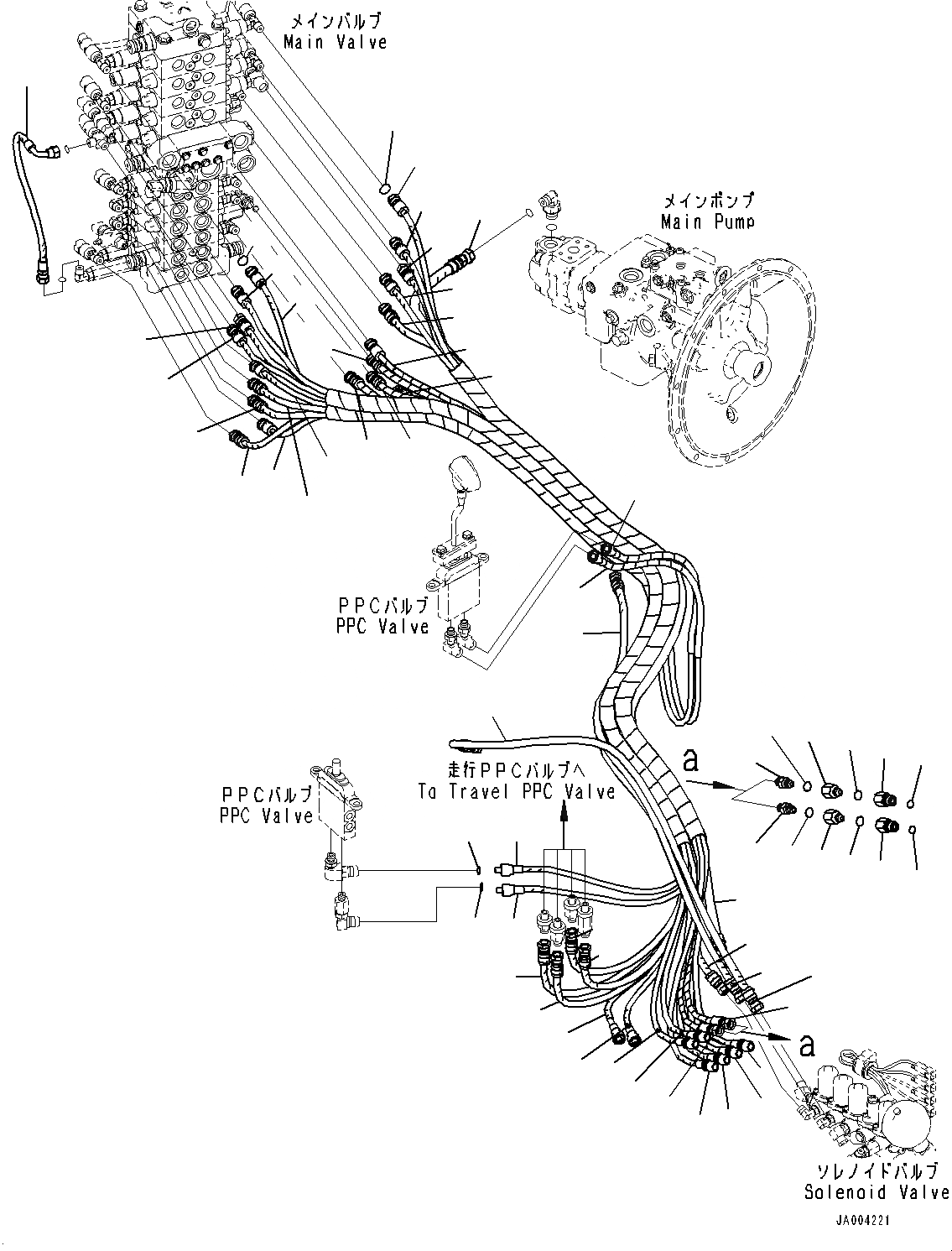

Запчасти Komatsu PC88MR-8 ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) КЛАПАН ТРУБЫ, ОСНОВН. ТРУБЫ (/) (№-) ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) КЛАПАН ТРУБЫ, ДЛЯ MACHINE С SHIFT PATTERN (ISO/ЭКСКАВАТ.) КЛАПАН СЕЛЕКТОРА, С ОТВ. С ИЗМ. УГЛОМ
№
Артикул
Название
Примечание
Количество
|$0
22P-910-1811
Hose Assembly
|$1
21U-62-34710
Band, Yellow
|$2
21U-62-34740
Band, Orange
|$3
21U-62-34760
Band, Red
|$4
21U-62-34770
Band, White
|$5
21U-62-34750
Band, Blue
1
22P-62-11680
Hose
2
22P-62-11680
Hose
3
22P-62-11711
Hose
4
22P-910-1831
Hose
5
20U-62-22190
O-ring
5
22P-62-11631
Hose Assembly
6
22P-62-11440
Hose
7
20U-62-22190
O-ring
8
22P-62-11641
Hose
9
22P-62-11650
Hose
10
22P-62-11650
Hose
11
22P-62-11671
Hose
11
21U-62-34710
Band, Yellow
11
21U-62-34720
Band, Black
11
21U-62-34730
Band, Green
11
21U-62-34740
Band, Orange
11
21U-62-34750
Band, Blue
11
21U-62-34770
Band, White
11
21U-62-34780
Band, Brown
11
21W-60-43200
Valve Assembly
12
21W-62-43930
Nipple
13
21W-62-44750
Body
14
21W-62-42940
Nipple
15
07002-11423
O-ring
16
02896-11008
O-ring
|$31
22P-910-1821
Hose Assembly
|$32
21U-62-34720
Band, Black
|$33
21U-62-34730
Band, Green
|$34
21U-62-34750
Band, Blue
17
21W-62-41521
Hose
18
21W-62-51140
Hose
19
22P-62-11761
Hose
20
22P-62-11780
Hose
21
22P-910-1841
Hose
22
20U-62-22190
O-ring
22
22P-62-11881
Hose Assembly
23
22P-62-11451
Hose
24
20U-62-22190
O-ring
25
22P-62-11721
Hose
26
22P-62-11731
Hose
27
22P-62-11741
Hose
28
22P-62-11751
Hose
28
21W-60-43200
Valve Assembly
29
21W-62-43930
Nipple
30
21W-62-44750
Body
31
21W-62-42940
Nipple
32
07002-11423
O-ring
32
21U-62-34710
Band, Yellow
32
21U-62-34720
Band, Black
32
21U-62-34760
Band, Red
32
21U-62-34770
Band, White
32
21U-62-34780
Band, Brown
33
02896-11008
O-ring
33
22P-910-1700
Hose Assembly
33
21U-62-34710
Band, Yellow
33
21U-62-34730
Band, Green
33
21U-62-34760
Band, Red
34
22P-62-11791
Hose
35
22M-62-16420
Hose
36
22P-62-11851
Hose
37
02761-00204
Hose, Face Seal Type
Выбрано товаров: 67
