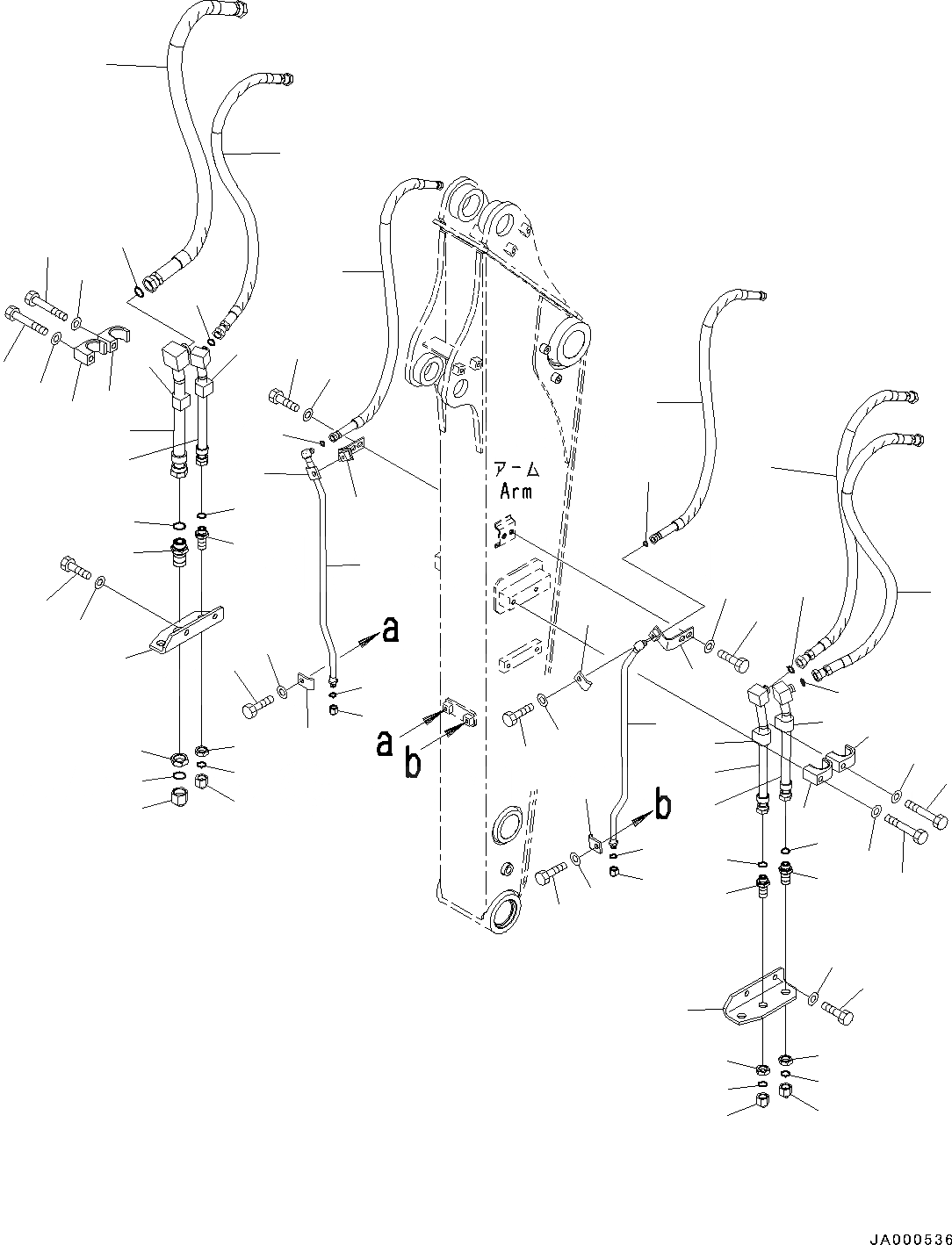

Запчасти Komatsu PC88MR-8 РУКОЯТЬ, ТРУБЫ (№-) РУКОЯТЬ, MM, С -ДОПОЛН. АКТУАТОР ТРУБЫ

1

02765-20410

Hose, Face Seal Type

2

21W-973-4630

Hose

3

22P-973-1280

Tube

4

22P-973-1220

Tube

5

22B-62-19410

Clamp

6

01010-81270

Bolt

7

01643-31232

Washer

8

203-62-43380

Cushion

9

203-62-43390

Cushion

10

22P-62-12960

Union

11

22P-62-12990

Nipple

12

22P-973-1120

Bracket, (L.H.)

13

01010-81225

Bolt

14

01643-31232

Washer

15

22P-973-1130

Bracket, (R.H.)

16

01010-81225

Bolt

17

01643-31232

Washer

18

02789-10628

Plug

19

02789-10422

Plug

20

02896-11012

O-ring

21

02896-11018

O-ring

22

02765-20410

Hose, Face Seal Type

23

22P-973-1260

Tube

24

22B-62-19410

Clamp

25

01010-81270

Bolt

26

01643-31232

Washer

27

203-62-43390

Cushion

28

22P-62-12960

Union

29

02789-10422

Plug

30

02896-11012

O-ring

31

02777-202A9

Hose, Face Seal Type

32

22P-62-12940

Tube

33

22P-62-12950

Tube

34

02896-11008

O-ring

35

02789-10210

Plug

36

22P-62-13110

Bracket

37

22P-62-13320

Bracket

38

20Y-62-K5780

Clamp

39

01010-81020

Bolt

40

01643-31032

Washer
