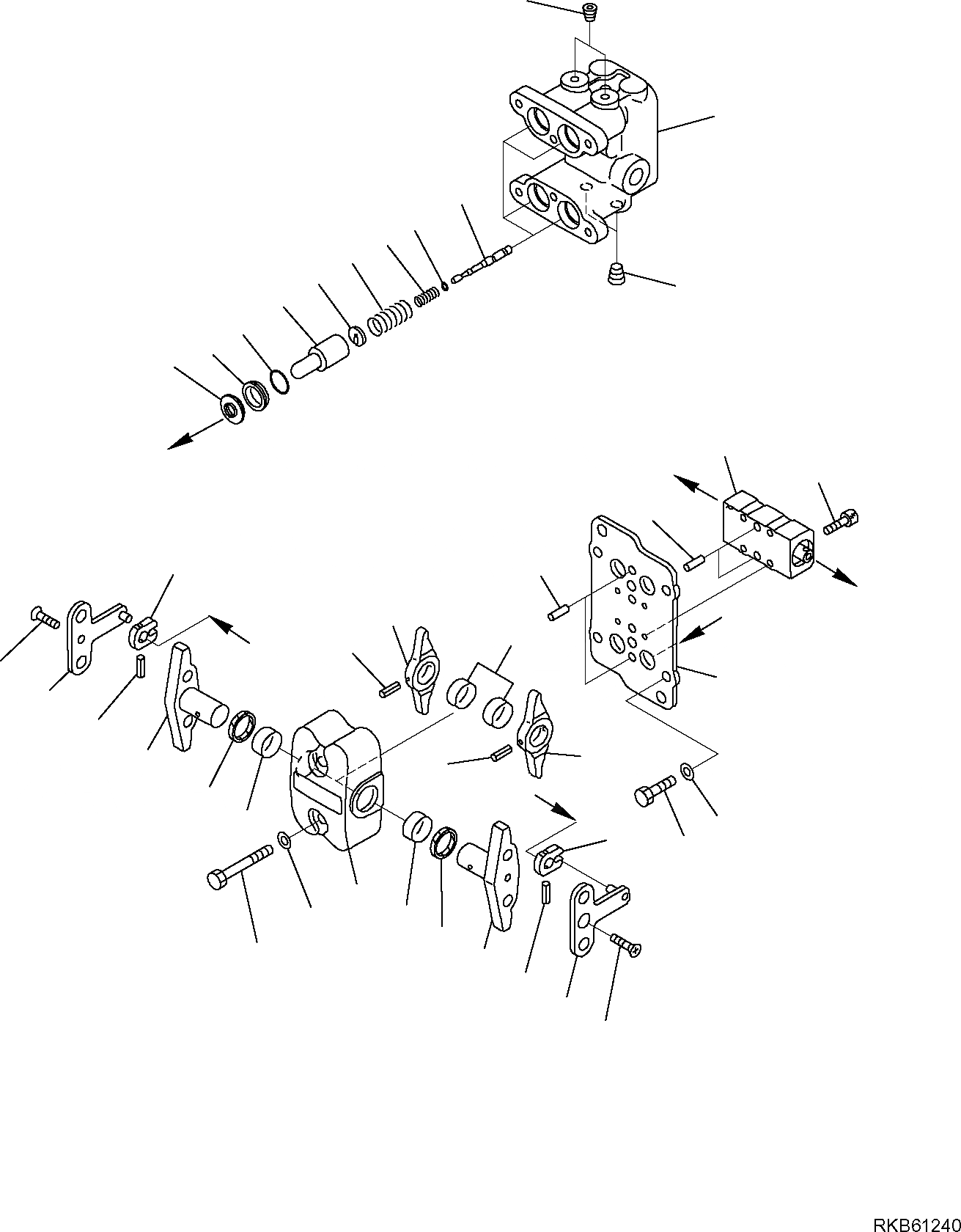

Запчасти Komatsu PC88MR-6 КЛАПАН PPC(ХОД) РАБОЧЕЕ ОБОРУДОВАНИЕ ГИДРАВЛИКА

\0

702-16-03361

PPC VALVE, ASSEMBLY

1

BODY VALVE

2

SPOOL

3

702-16-51140

SHIM, 0.300 mm

4

702-16-53420

SPRING

5

702-16-53140

RETAINER

6

702-16-55630

SPRING

7

702-16-53170

PISTON

8

702-16-51270

SPRING, GUIDE

9

07000-12020

O-RING

10

702-16-54170

COLLAR

11

702-16-54311

COVER

12

LEVER

13

SHAFT

14

PLATE

15

01010-80855

BOLT

16

01643-30823

WASHER

17

01010-80816

BOLT

18

702-16-54331

WASHER, 1.60 mm

18

702-16-54341

WASHER, 1.30 mm

18

702-16-54351

WASHER, 1.00 mm

19

04025-00432

PIN

20

702-16-54430

SLEEVE

21

702-16-54280

SEAL, DUST

22

702-16-54506

VALVE

23

01252-60525

BOLT, HEXAGON SOCKET HEAD

24

702-16-54511

PLATE

25

04025-00420

PIN

26

LEVER

27

01224-40612

SCREW

28

706-86-51180

PLUG

29

708-18-12570

PLUG

30

04022-04016

PIN

31

04022-04010

PIN
