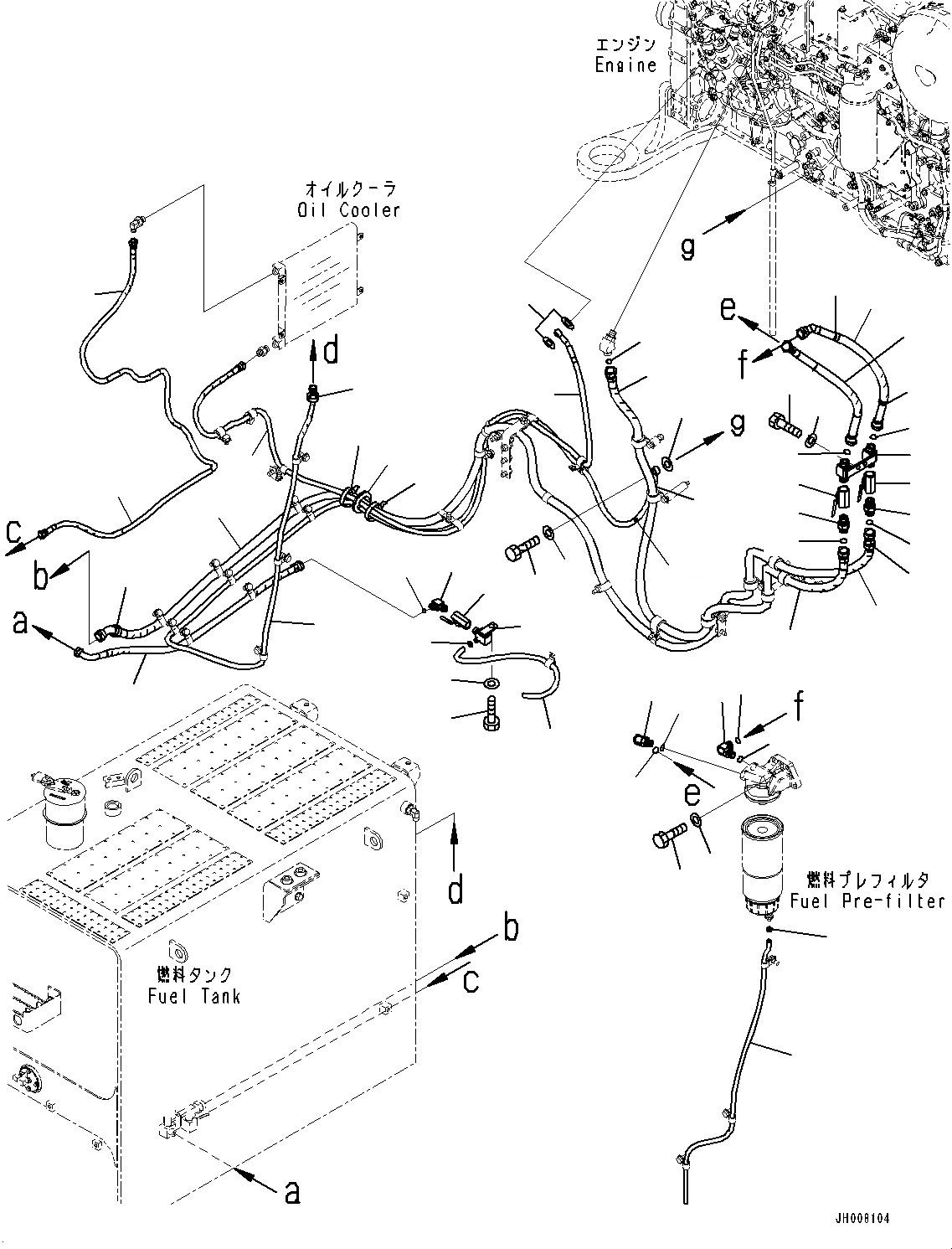

Запчасти Komatsu PC850SE-8E0 ТОПЛИВН. ПОДАЮЩ. ТРУБЫ, ФИЛЬТР. ТРУБЫ (№-) ТОПЛИВН. ПОДАЮЩ. ТРУБЫ

1

01010-81040

Bolt

2

01643-31032

Washer

3

02782-10516

Elbow

4

07002-12034

O-ring

5

02896-11015

O-ring

6

02764-00505

Hose

7

209-04-42270

Hose

8

20Y-62-22790

Band, Red

9

209-04-41670

Bracket

10

01010-81225

Bolt

11

01643-31232

Washer

12

02896-11015

O-ring

13

07700-40661

Valve, Fuel Drain

14

209-04-42150

Union

15

02896-11015

O-ring

16

07287-00815

Hose

17

07285-00125

Clip

18

02764-00547

Hose, Face Seal Type

19

20Y-62-22790

Band, Red

20

209-04-42170

Hose Assembly

21

02896-11015

O-ring

22

209-04-41661

Hose Assembly

23

07206-31014

Bolt, Joint

24

07005-01412

Seal, Washer

25

209-04-42251

Hose

26

20Y-62-22810

Band, Yellow

27

209-04-45240

Hose Assembly

28

21T-06-73320

Grommet

29

08034-20536

Band

30

07700-40460

Valve, Fuel Drain

31

209-04-41320

Elbow

32

01010-81230

Bolt

33

01643-31232

Washer

34

21N-64-36520

Elbow

35

02896-11012

O-ring

36

02763-00410

Hose, Face Seal Type

37

07270-61210

Tube

38

07285-00125

Clip
