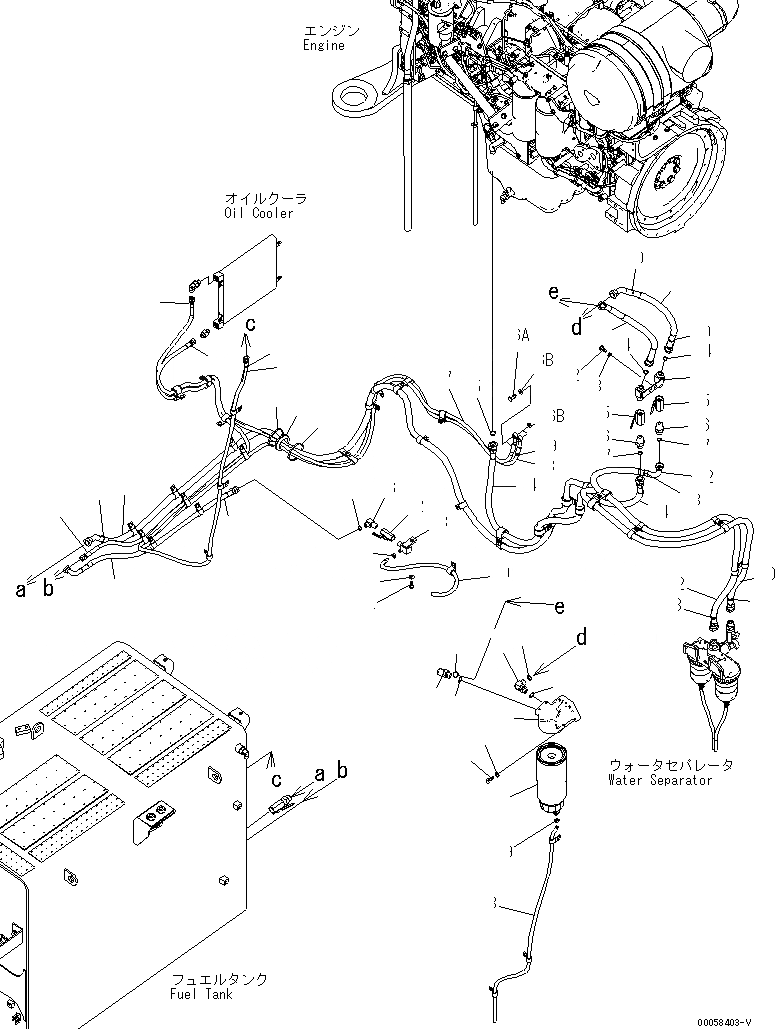

Запчасти Komatsu PC850-8R ТОПЛИВОПРОВОД. (ФИЛЬТР. И ШЛАНГИ) ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

1

6261-71-6430

HEAD

2

01010-81040

BOLT

3

01643-31032

WASHER

4

600-311-4500

FILTER ASS'Y

4

600-311-3400

FILTER ASS'Y

5

02782-10516

ELBOW

6

07002-12034

O-RING

7

02896-11015

O-RING

8

02764-00505

HOSE

9

02764-005A5

HOSE

10

20Y-62-22790

BAND, RED

11

209-04-41670

BRACKET

12

01010-81225

BOLT

13

01643-31232

WASHER

14

02896-11015

O-RING

15

07700-40661

VALVE

16

209-04-42150

UNION

17

02896-11015

O-RING

18

07287-00815

HOSE

19

07285-00125

CLIP

20

02764-00561

HOSE

21

20Y-62-22820

BAND, BLUE

22

02763-00519

HOSE

23

20Y-62-22790

BAND, RED

24

209-04-41630

HOSE ASS'Y, 2000MM

25

02896-11015

O-RING

26

209-04-41661

HOSE ASS'Y, 3100MM

26A

07206-31014

BOLT

26B

07005-01412

SEAL, WASHER

27

209-04-41651

HOSE ASS'Y, 2500MM

28

209-04-42250

HOSE, 4300MM

29

20Y-62-22810

BAND, YELLOW

30

21T-06-73320

GROMMET

31

08034-20536

BAND

32

07700-40460

VALVE

33

209-04-41320

ELBOW

34

01010-81230

BOLT

35

01643-31232

WASHER

36

21N-64-36520

ELBOW

37

02896-11012

O-RING

38

02763-00410

HOSE

39

07270-61210

TUBE

40

07285-00125

CLIP
