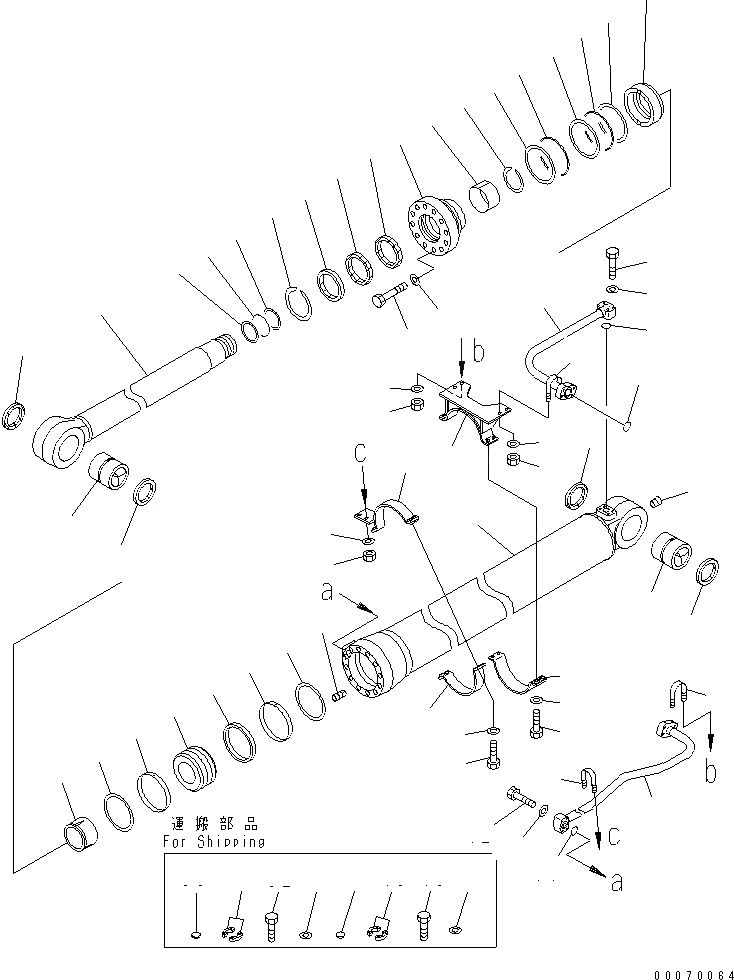

Запчасти Komatsu PC850-8 ЦИЛИНДР КОВША (SE И HD)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XP290

CYLINDER GROUP,(FINAL COATING)

|$3

707-01-0K290

CYLINDER ASS'Y

1

707-13-18990

CYLINDER

2

707-58-13270

ROD,PISTON

3

707-76-11130

BUSHING

4

07145-00110

SEAL,DUST (KIT)

5

07043-00108

PLUG

6

707-76-11130

BUSHING

7

07145-00110

SEAL,DUST (KIT)

8

707-71-35060

COLLAR

9

707-35-91840

RING,BACK-UP (KIT)

10

07000-15175

O-RING (KIT)

11

707-71-61430

PLUNGER

12

707-27-18180

HEAD,CYLINDER

13

707-56-13520

SEAL,DUST (KIT)

14

07179-14146

RING

15

707-51-13030

PACKING,ROD (KIT)

16

707-51-13650

RING,BUFFER (KIT)

17

707-52-91070

BUSHING

18

707-35-91840

RING,BACK-UP (KIT)

19

07000-15175

O-RING (KIT)

20

07179-13136

RING,SNAP

21

01011-82400

BOLT

22

707-88-75410

WASHER

23

707-36-18530

PISTON

24

07001-05120

RING,BACK-UP (KIT)

25

07000-B5120

O-RING (KIT)

26

707-44-18290

RING,PISTON (KIT)

27

707-39-18510

RING,WEAR (KIT)

28

707-44-18920

RING

29

01310-01225

SCREW

30

707-88-33040

CAP,FOR SHIPPING

31

07371-31049

FLANGE,FOR SHIPPING

32

07372-21035

BOLT,FOR SHIPPING

33

01643-51032

WASHER,FOR SHIPPING

34

707-86-13470

TUBE

35

209-63-73582

TUBE

36

707-88-28440

BRACKET

37

707-88-28450

BRACKET

38

707-88-26170

BAND

39

707-88-26180

BAND

40

07372-21250

BOLT

41

01643-51232

WASHER

42

07372-21060

BOLT

43

01643-51032

WASHER

44

07000-13035

O-RING (KIT)

45

07283-33442

CLIP

46

01597-01009

NUT

47

01643-31032

WASHER

48

07371-51260

FLANGE,FOR SHIPPING

49

01010-81245

BOLT,FOR SHIPPING

50

01643-31232

WASHER,FOR SHIPPING

51

07378-11210

HEAD,FOR SHIPPING

52

07000-13038

O-RING

|$60

707-99-69540

SERVICE KIT
