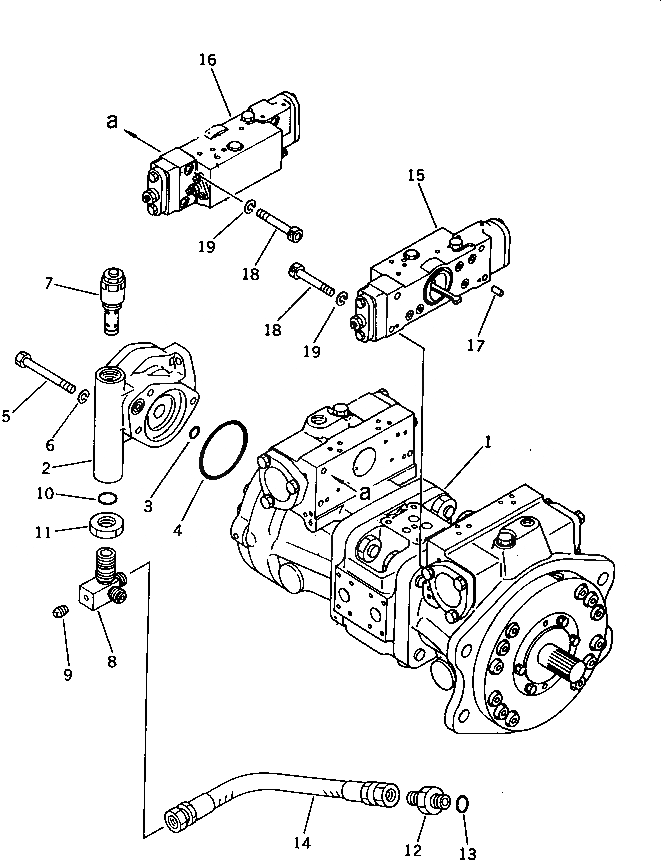

Запчасти Komatsu PC80LC-3 ГИДР. НАСОС. БЛОК (БЕЗ ВЫБОР РЕЖИМА OLSS)(№9-) ГИДРАВЛИКА

|1

708-21-01040

PUMP ASS'Y,(HPV35+35)

|$$2

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6201A TO 6231.

|1

PUMP SUB ASS'Y

1

708-21-01220

PUMP SUB ASS'Y

2

704-24-24401

GEAR PUMP ASS'Y

3

07000-02018

O-RING

4

07000-02085

O-RING

5

01010-51080

BOLT

6

01602-21030

WASHER,SPRING

7

708-23-14801

VALVE ASS'Y

8

708-23-19110

ELBOW

9

07042-30108

PLUG

10

07002-02434

O-RING

11

07239-12410

NUT

12

07230-10315

UNION

13

07002-02034

O-RING

14

07102-20303

HOSE

15

708-21-15901

SERVO VALVE ASS'Y,FRONT

16

708-21-16901

SERVO VALVE ASS'Y,REAR

17

04020-00616

PIN,DOWEL

18

708-25-19130

BOLT

19

01602-20825

WASHER,SPRING
