Артикул
Название
Примечание
Количество
|1
20X-60-27101

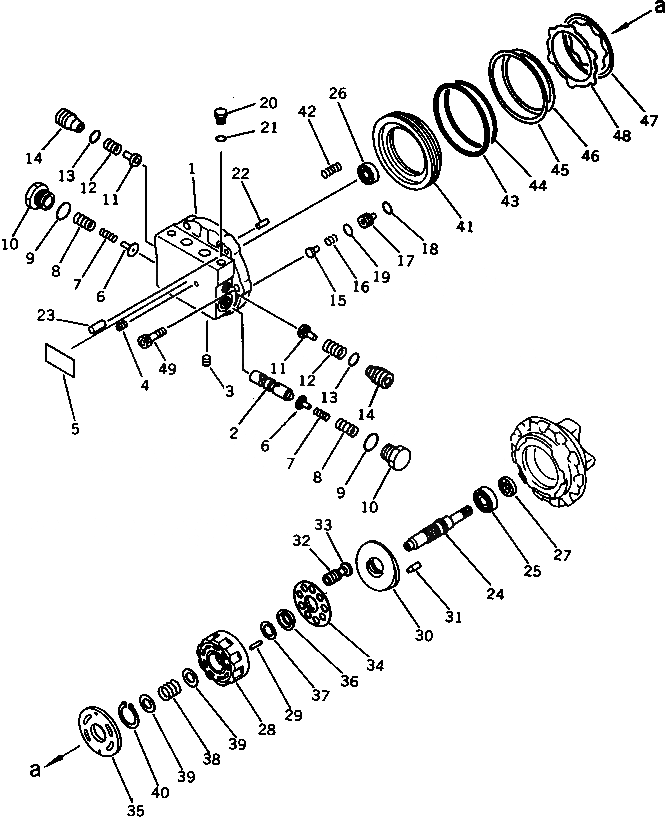

TRAVEL MOTOR ASS'Y
|$$2
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6101AAND 6103A.
|1
TZ110A210100-E
FLANGE SPOOL ASS'Y
1
FLANGE
2
SPOOL
3
TZMB700-050
PLUG
4
TZGM1-8
PLUG
5
TZ850A0006-00
PLATE¤ NAME
6
TZ200A2052-00
STOPPER
7
TZ200A2056-00
SPRING
8
TZ100A2055-00
SPRING
9
07000-13032
O-RING (KIT)
10
TZ100A2051-00
PLUG
11
TZ100A2054-01
VALVE
12
TZ100A2057-01
SPRING
13
07000-12020
O-RING (KIT)
14
TZ100A2053-01
PLUG
15
TZ430F2019-00
VALVE
16
TZ100A2020-00
SPRING
17
TZ100A2018-00
SEAT,VALVE
18
TZ100A2022-00
RING
19
07000-11009
O-RING (KIT)
20
TZ100A2021-00
PLUG
21
07002-02034
O-RING (KIT)
22
TZJB1354-5-12
PIN
23
TZJB1354-10-28
PIN
24
TZ110A2002-00
SHAFT
25
TZJB1521-62-32
BEARING
26
06000-06005
BEARING
27
TZTCN-32-52-11
SEAL,OIL (KIT)
28
BLOCK,CYLINDER
29
TZJB15063-16-8
ROLLER,NEEDLE
30
TZ100A200300-C
PLATE,SWASH
31
TZ100A2017-00
PIN
|32
PISTON SHOE ASS'Y
32
SHOE ASS'Y
33
SHOE,PISTON
34
PLATE,RETAINER
35
PLATE
36
BALL,THRUST
37
WASHER KIT
38
TZ100A2014-00
SPRING
39
TZ150A2010-00
WASHER
40
TZIRTW-55
RING,SNAP
41
TZ231F2012-00
PISTON
42
TZ100A2013-00
SPRING
43
07000-15170
O-RING (KIT)
44
07000-15145
O-RING (KIT)
45
TZSUN-2BG170
RING,BACK-UP (KIT)
46
TZ231F2023-00
RING,BACK-UP (KIT)
47
TZ100A2015-00
DISC
48
TA100A2016-00
PLATE
49
01252-31440
BOLT
Выбрано товаров: 53
