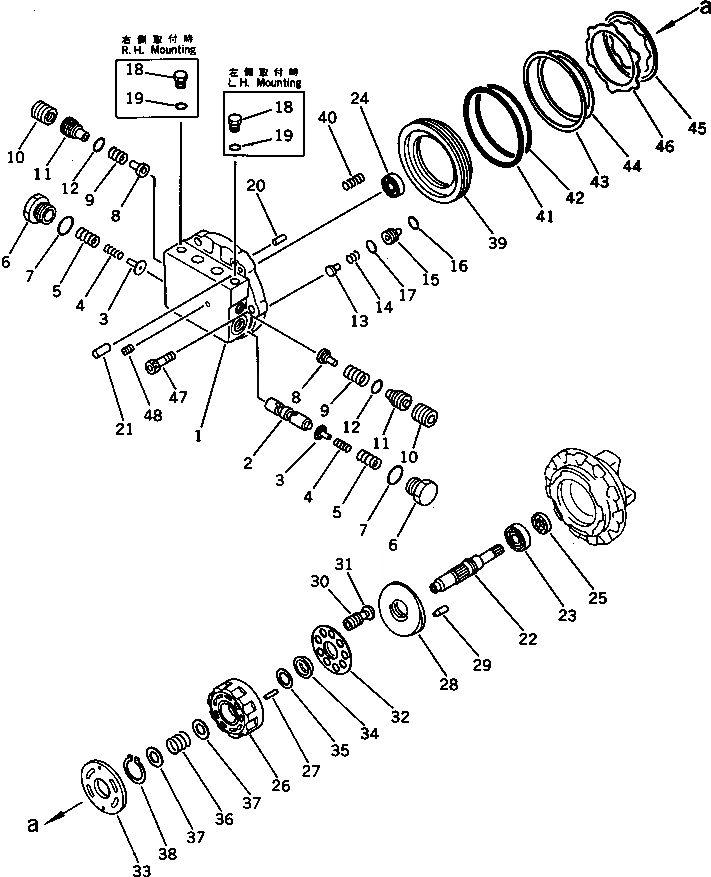

Запчасти Komatsu PC80LC-3 МОТОР ХОДА (/)(№-7) ГИДРАВЛИКА

|1

20X-60-27101

TRAVEL MOTOR ASS'Y

|1

20X-60-27100

TRAVEL MOTOR ASS'Y

|$$3

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6101 AND 6103.

|1

TZ110A2101-A

FLANGE SPOOL ASS'Y

1

FLANGE,REAR

2

SPOOL

3

TZ200A2052-00

STOPPER

4

TZ200A2022-00

SPRING

5

TZ100A2055-00

SPRING

6

TZ100A2051-00

PLUG

7

07000-13032

O-RING (KIT)

8

TZ100A2054-01

VALVE

9

TZ100A2057-01

SPRING

10

TZ150A2053-00

PLUG

11

GUIDE

12

07000-12020

O-RING (KIT)

13

TZ430A2019-00

VALVE

14

TZ100A2020-00

SPRING

15

TZ100A2018-00

SEAT,VALVE

16

TZ100A2022-00

RING

17

07000-11009

O-RING (KIT)

18

TZ100A2021-00

PLUG

19

07002-02034

O-RING (KIT)

20

TZPP0050-12

PIN,DOWEL

21

TZPP0100-28

PIN,DOWEL

22

TZ110A2002-00

SHAFT

23

TZBB0062-32

BEARING,BALL

24

06000-06005

BEARING,BALL

25

TZ03205211

SEAL,OIL (KIT)

26

BLOCK,CYLINDER

27

TZNR030168

ROLLER,NEEDLE

28

TZ100A2003-00-

PLATE,SWASH

29

TZ100A2017-00

PIN

|30

TZ100A2102-00

PISTON SHOE ASS'Y

30

SHOE ASS'Y

31

SHOE,PISTON

32

TZ100A2007-00

PLATE,RETAINER

33

TZ210A2009-00

PLATE,TIMING

34

TZ100A2008-00

BALL,THRUST

35

TZ100A2011-00

WASHER KIT

36

TZ100A2014-00

SPRING

37

TZ150A2010-00

WASHER

38

TZIRTW-05520

RING,SNAP

39

TZ231F2012-00

PISTON

40

TZ100A2013-00

SPRING

41

07000-15170

O-RING (KIT)

42

07000-15145

O-RING (KIT)

43

TZ002BG170

RING,BACK-UP (KIT)

44

TZ231F2023-00

RING,BACK-UP (KIT)

45

TZ100A2015-00

DISC

46

TZ100A2016-00

PLATE

47

01252-31440

BOLT

48

TZHP00001-8

PLUG
