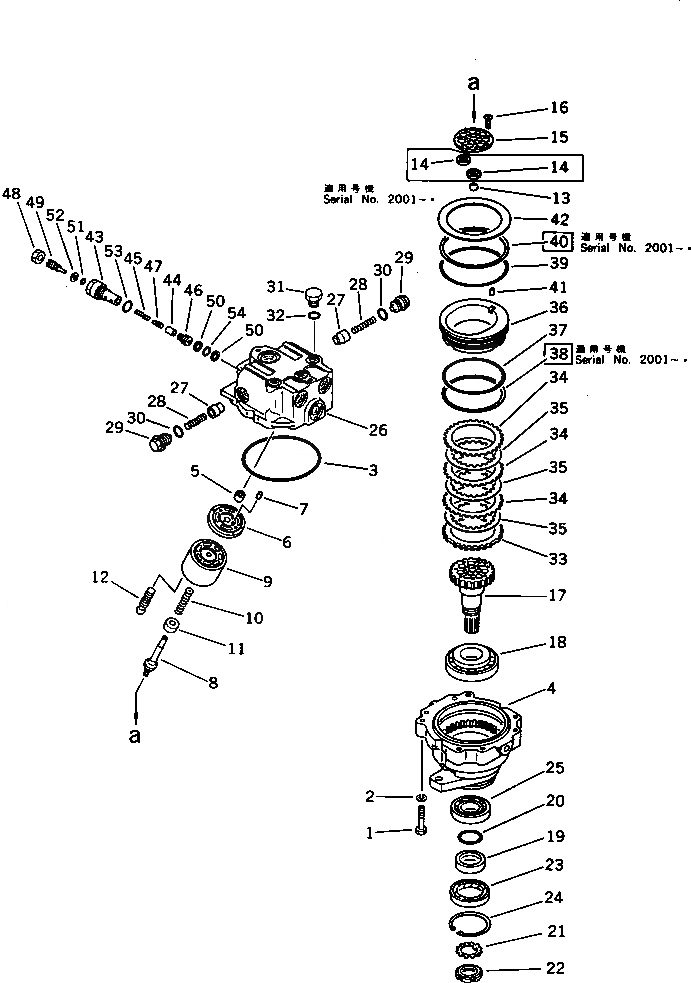

Запчасти Komatsu PC80LC-3 МОТОР ПОВОРОТА ГИДРАВЛИКА

|1

706-73-01041

SWING MOTOR ASS'Y

|1

706-73-01040

SWING MOTOR ASS'Y

|1

MOTOR SUB ASS'Y

|1

706-73-03100

MOTOR SUB ASS'Y

1

01010-51055

BOLT

2

01602-21030

WASHER,SPRING

3

706-73-42370

O-RING

4

706-73-42030

CASE,BRAKE

5

706-73-40010

BEARING

6

706-73-42840

PLATE,VALVE

7

04020-00616

PIN,DOWEL

8

706-73-42080

SHAFT,CENTER

9

706-73-41091

BLOCK,CYLINDER

10

706-73-41110

SPRING

11

706-73-41130

RING,CENTER

12

706-73-41163

PISTON ASS'Y

13

706-73-41220

BALL,CENTER

14

706-73-41251

HOLDER

15

706-73-42260

RETAINER

|15

706-73-41263

RETAINER

16

706-73-42270

SCREW

|16

706-73-41271

SCREW

17

706-73-42760

SHAFT,DRIVE

18

706-74-41880

BEARING

19

706-75-40910

RING

20

07000-03040

O-RING

21

01658-03618

WASHER

22

01530-03610

NUT,LOCK

23

706-75-90180

SEAL,OIL

24

04065-08225

RING,SNAP

25

706-75-40890

BEARING

26

706-73-72140

HOUSING

27

706-73-72420

VALVE

28

706-73-72440

SPRING

29

706-73-72430

PLUG

30

07002-12434

O-RING

31

07040-12012

PLUG

32

07002-12034

O-RING

33

706-73-91430

PLATE

34

706-73-91440

PLATE

35

706-75-90050

DISK

36

706-73-91481

PISTON,BRAKE

|36

706-73-91480

PISTON,BRAKE

37

07000-15130

O-RING

38

706-74-90130

RING,BACK-UP

39

07000-15145

O-RING

40

706-73-91320

RING,BACK-UP

41

706-73-42820

PIN,DOWEL

42

706-73-91350

SPRING

|43

706-73-86100

VALVE ASS'Y

43

SLEEVE

44

VALVE

45

SPRING

46

SEAT,VALVE

47

PISTON

48

NUT

49

SCREW

50

07001-02016

RING,BACK-UP

51

O-RING

52

RING,BACK-UP

53

07002-12434

O-RING

54

07000-22016

O-RING
