Запчасти Komatsu PC80LC-3 ГУСЕНИЦЫ ХОДОВАЯ

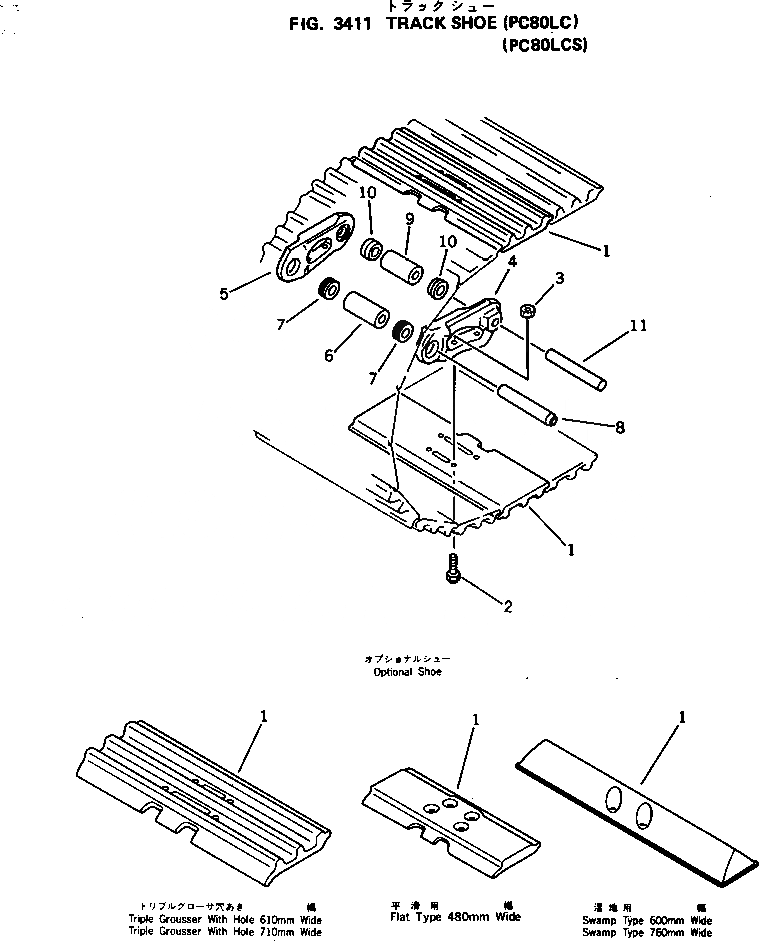

Схема запчастей Komatsu PC80LC-3 - ГУСЕНИЦЫ ХОДОВАЯ

Артикул

Название

Примечание

Количество

|$$1

TRIPLE 480MM{WITH HOLE}

|1

202-32-00018

TRACK SHOE ASS'Y

|1

202-32-00017

TRACK SHOE ASS'Y

1

202-32-11112

SHOE,TRACK

2

203-32-21210

BOLT¤ SHOE

3

01803-01420

NUT,SHOE

|4

202-32-00116

TRACK LINK ASS'Y

|4

202-32-00115

TRACK LINK ASS'Y

4

110-32-11322

LINK,TRACK¤ L.H.

5

110-32-11332

LINK,TRACK¤ R.H.

6

203-32-11342

BUSHING,REGULAR

|6

203-32-11341

BUSHING,REGULAR

7

203-32-11360

SEAL,DUST¤ REGULAR¤ W-TYPE

8

203-32-11351

PIN,REGULAR

9

203-32-11372

BUSHING,MASTER

|9

203-32-11371

BUSHING,MASTER

10

203-32-11380

SEAL,DUST¤ MASTER¤ W-TYPE

11

203-32-11391

PIN,MASTER

|$$19

TRIPLE 610MM{WITH HOLE}

|1

202-32-00054

TRACK SHOE ASS'Y

|1

202-32-00053

TRACK SHOE ASS'Y

1

202-32-11280

SHOE,TRACK

2

203-32-21210

BOLT¤ SHOE

3

01803-01420

NUT,SHOE

4

202-32-00116

TRACK LINK ASS'Y

|4

202-32-00115

TRACK LINK ASS'Y

|$$27

TRIPLE 710MM{WITH HOLE}

|1

202-32-00028

TRACK SHOE ASS'Y

|1

202-32-00027

TRACK SHOE ASS'Y

1

202-32-11292

SHOE,TRACK

2

203-32-21210

BOLT¤ SHOE

3

01803-01420

NUT,SHOE

4

202-32-00116

TRACK LINK ASS'Y

|4

202-32-00115

TRACK LINK ASS'Y

|$$35

FLAT 480MM

|1

202-32-00047

TRACK SHOE ASS'Y

|1

202-32-00046

TRACK SHOE ASS'Y

1

202-32-11311

SHOE,TRACK

2

203-32-21210

BOLT¤ SHOE

3

01803-01420

NUT,SHOE

4

202-32-00116

TRACK LINK ASS'Y

|4

202-32-00115

TRACK LINK ASS'Y

|$$43

SERVICE KIT

|1

203-32-05010

SHOE BOLT AND NUT K.

2

203-32-21210

BOLT¤ SHOE

3

01803-01420

NUT,SHOE

|$$47

SWAMP 600MM

|1

202-32-00065

TRACK SHOE ASS'Y

|1

202-32-00064

TRACK SHOE ASS'Y

1

11G-32-21120

SHOE,TRACK

2

203-32-21220

BOLT¤ SHOE

3

01803-01420

NUT,SHOE

4

202-32-00116

TRACK LINK ASS'Y

|4

202-32-00115

TRACK LINK ASS'Y

|$$55

SWAMP 760MM

|1

202-32-00037

TRACK SHOE ASS'Y

|1

202-32-00036

TRACK SHOE ASS'Y

1

202-32-11270

SHOE,TRACK

2

203-32-21220

BOLT¤ SHOE

3

01803-01420

NUT,SHOE

4

202-32-00116

TRACK LINK ASS'Y

|4

202-32-00115

TRACK LINK ASS'Y

|$$63

SERVICE KIT

|1

203-32-05020

SHOE BOLT AND NUT K.,(FOR SWAMP)

2

203-32-21220

BOLT¤ SHOE

3

01803-01420

NUT,SHOE

|$$67

OVERSIZE PARTS

|$$68

0.10MM OVERSIZE

6

202-98-09112

BUSHING,REGULAR

|6

202-98-09111

BUSHING,REGULAR

8

202-98-09011

PIN,REGULAR

9

202-98-09142

BUSHING,MASTER

|9

202-98-09141

BUSHING,MASTER

11

202-98-09041

PIN,MASTER

|$$75

0.18MM OVERSIZE

6

202-98-09132

BUSHING,REGULAR

|6

202-98-09131

BUSHING,REGULAR

8

202-98-09031

PIN,REGULAR

9

202-98-09162

BUSHING,MASTER

|9

202-98-09161

BUSHING,MASTER

11

202-98-09061

PIN,MASTER

Выбрано товаров: 81
