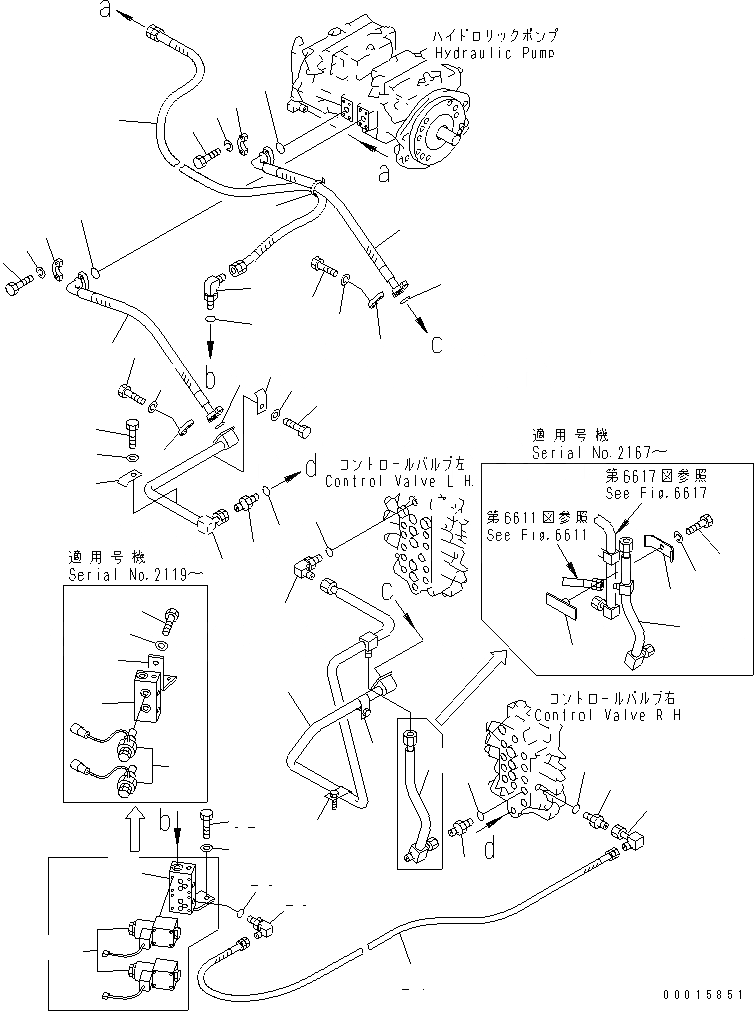

Запчасти Komatsu PC80LC-3 ГИДРОЛИНИЯ (ИЗ НАСОСА В КЛАПАН) (БЕЗ ВЫБОР РЕЖИМА OLSS) ГИДРАВЛИКА

1

20X-62-21910

HOSE

2

20X-62-21920

HOSE

3

07000-13022

O-RING

4

07371-30500

FLANGE,SPLIT

5

01010-50830

BOLT

6

01602-20825

WASHER,SPRING

7

20X-62-21142

TUBE

8

20X-62-21132

TUBE

9

201-62-51210

TUBE

|9

20X-62-21151

TUBE

10

07230-10422

UNION

11

07002-12034

O-RING

12

07230-10522

UNION

13

07235-10522

ELBOW

14

07002-12434

O-RING

15

07102-20313

HOSE

16

07235-10315

ELBOW

17

07002-02034

O-RING

18

201-62-21890

CLAMP

19

01010-51025

BOLT

20

01643-31032

WASHER

21

201-62-21890

CLAMP

22

01010-51025

BOLT

23

01643-31032

WASHER

24

20G-62-15470

HOSE

25

07235-10210

ELBOW

26

07002-01423

O-RING

27

20X-62-21590

ELBOW

28

07230-10210

UNION

29

07002-01423

O-RING

30

203-60-42240

SOLENOID VALVE ASS'Y

|30

21K-60-12301

SOLENOID VALVE ASS'Y

|$$33

(203-60-42240(2){20X-62-21892)}

31

20X-62-21892

BLOCK ASS'Y

|31

20X-62-21890

BLOCK

|$$36

(203-60-42240(2){20X-62-21892)}

32

01010-51020

BOLT

33

01643-31032

WASHER

34

08034-00823

BAND

35

201-62-51230

CLAMP

36

201-62-51240

PLATE

37

01010-51225

BOLT

38

01602-21236

WASHER

39

20X-62-21980

BRACKET

40

01010-51025

BOLT

41

01643-31032

WASHER
