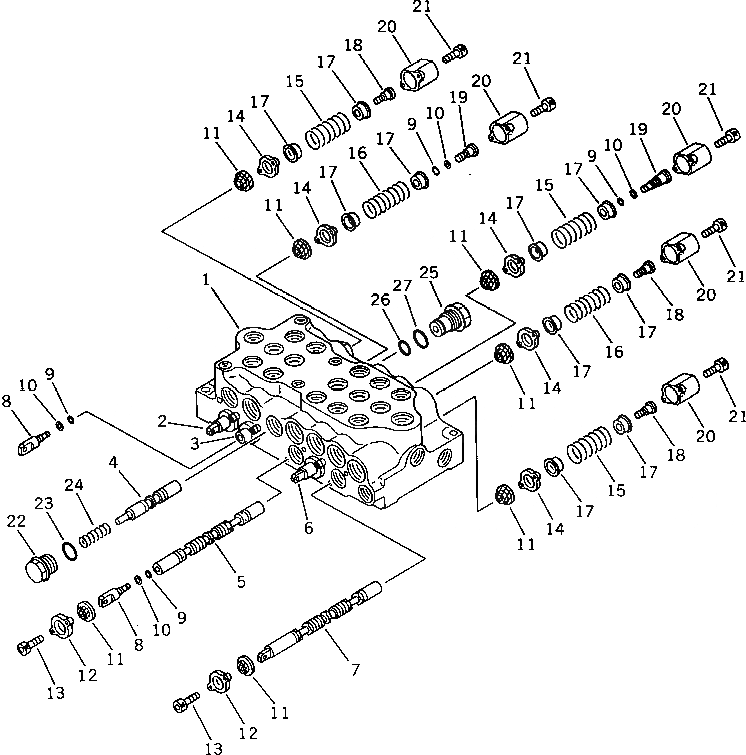

Запчасти Komatsu PC80LC-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) ГИДРАВЛИКА

|1

709-26-11102

VALVE ASS'Y,L.H.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6501 TO 6505.

|1

709-26-00020

BODY ASS'Y

1

709-26-11111

BODY,VALVE

2

SPOOL,L.H. TRAVEL

3

SPOOL,ARMLOW

4

SPOOL,SWING PRIORITY

5

SPOOL,SWING

6

SPOOL,BOOM HIGH

7

SPOOL,SERVICE

8

709-25-11340

JOINT

9

07000-11003

O-RING

10

07001-01003

RING,BACK-UP

11

709-25-11290

SEAL

12

709-25-11320

PLATE

13

01252-30616

BOLT

14

709-25-11310

PLATE

15

700-23-13130

SPRING

16

700-22-11311

SPRING

17

700-22-11291

RETAINER

18

700-22-11321

PLUG

19

709-25-11330

PLUG

20

700-22-11331

COVER

21

01252-30616

BOLT

22

709-25-11430

PLUG

23

07002-02434

O-RING

24

709-25-11410

SPRING

25

709-25-11460

NIPPLE

26

07000-02015

O-RING

27

07002-02434

O-RING,BACK-UP
