Запчасти Komatsu PC80LC-3 МОТОР ХОДА (/)(№-7) ГИДРАВЛИКА

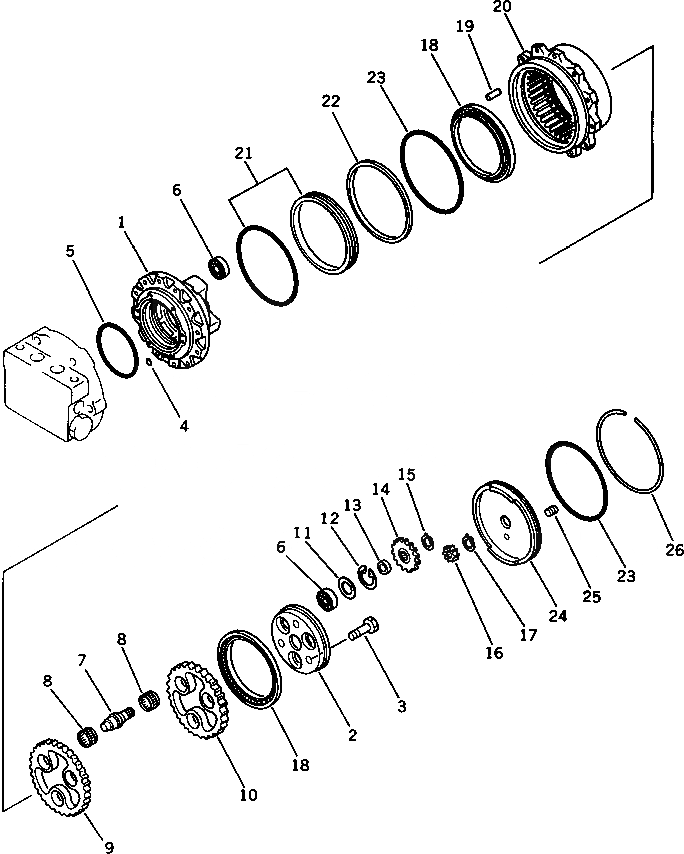

Схема запчастей Komatsu PC80LC-3 - МОТОР ХОДА (/)(№-7) ГИДРАВЛИКА

Артикул

Название

Примечание

Количество

|$0

20X-60-27101

TRAVEL MOTOR ASS'Y

|$1

20X-60-27100

TRAVEL MOTOR ASS'Y

|$$3

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6101 AND 6103.

|$3

TZ110A1001-00

SPINDLE ASS'Y

1

SPINDLE

2

FLANGE,HOLD

3

BOLT,REAMER

4

07000-11106

O-RING (KIT)

5

TZOWG-13184

O-RING (KIT)

|$9

TZ100A1104-00

RV GEAR ASS'Y

6

BEARING

7

SHAFT,CRANK

8

BEARING

9

GEAR

10

GEAR

11

TZ100A1013-00

PIECE ASS'Y,DISTANCE

12

04065-05220

RING,SNAP

13

TZ100A1014-00

PIECE,DISTANCE

14

TZ113A1007-00

SPUR GEAR ASS'Y

15

04064-02515

RING,SNAP

16

TZ113A1006-01

GEAR,INPUT

17

04064-02515

RING,SNAP

18

TZ100A1021-00

BEARING

19

TZ100A1017-00

PIN

20

TZ100A1001-00

HUB

21

TZES220A00

SEAL,FLOATING (KIT)

22

TZ100A1010-00

PIECE,DISTANCE

23

07000-15260

O-RING (KIT)

24

TZ100A1008-00

COVER

25

TZHP00001-2

PLUG

26

TZ100A1018-00

RING

|$$32

SERVICE KIT

K1

TZ112A9000-00

SEAL KIT

|$33

07000-15260

O-RING

|$34

TZOWG-13184

O-RING

|$35

TZES220A00

SEAL,FLOATING

|$36

07000-11106

O-RING

|$37

TZ03205211

SEAL,OIL

|$38

07000-11009

O-RING

|$39

07000-15145

O-RING

|$40

07000-13032

O-RING

|$41

07000-12020

O-RING

|$42

07002-02034

O-RING

|$43

07000-15170

O-RING

|$44

TZ002BG170

RING,BACK-UP

|$45

TZ231F2023-00

RING,BACK-UP

Выбрано товаров: 46
