Артикул
Название
Примечание
Количество
|$0
201-54-00510
OPERATOR'S CAB ASS'Y
|$$2
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5341 TO 5351.
|$2

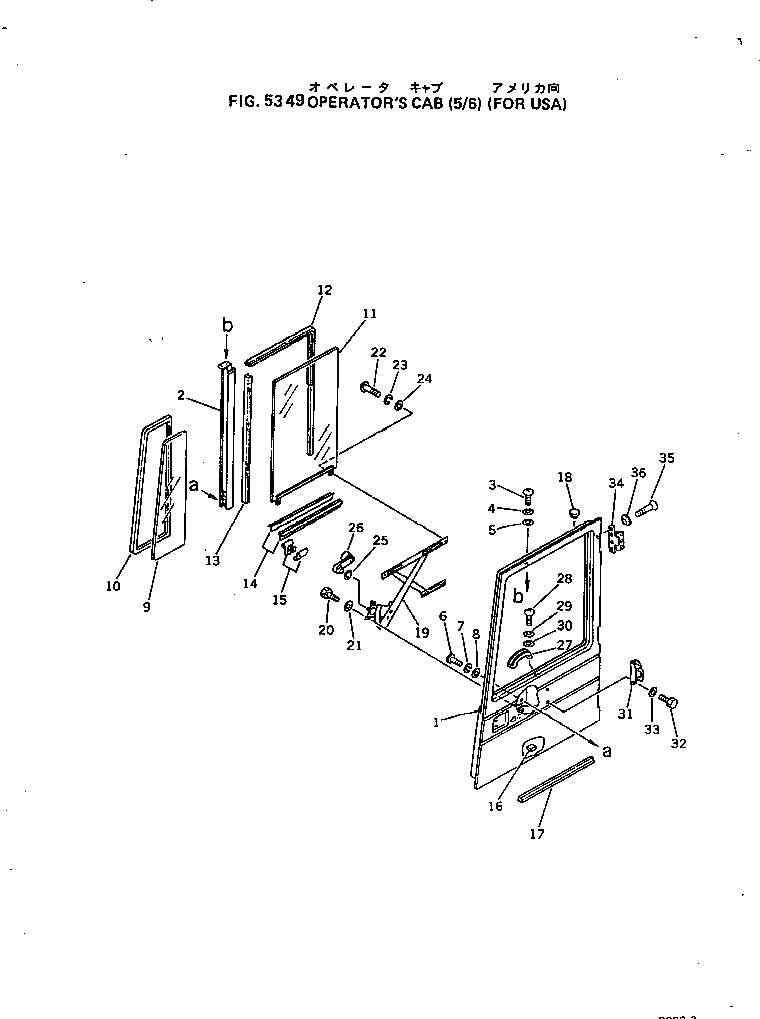

201-54-00520
DOOR ASS'Y
|$$4
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5349 AND 5351.
1
205-54-71122
DOOR
2
205-54-71651
DEVISION BAR ASS'Y
3
01220-40410
SCREW
4
01601-20410
WASHER,SPRING
5
01641-20405
WASHER
6
01220-40610
SCREW
7
01602-20619
WASHER,SPRING
8
01641-20608
WASHER
9
205-54-71252
GLASS
10
205-54-71592
STRIP,WEATHER
11
205-54-72252
GLASS ASS'Y
12
205-54-71571
SEAL
13
205-54-72231
SEAL
14
205-54-71581
SEAL
15
205-54-72740
CLIP
16
205-54-71910
STOPPER
17
205-54-72210
SHEET
18
205-54-71611
CAP
19
205-54-71631
REGULATOR ASS'Y
20
01010-50610
BOLT
21
01643-30623
WASHER
22
01220-40608
SCREW
23
01602-20619
WASHER,SPRING
24
01641-20608
WASHER
25
566-54-24270
ESCUTCHEON
26
205-54-71970
HANDLE
27
205-54-72220
HANDLE
28
01220-40610
SCREW
29
01602-20619
WASHER,SPRING
30
01641-20608
WASHER
31
205-54-72691
BRACKET
32
01010-50820
BOLT
33
01643-30823
WASHER
34
205-54-72760
HINGE ASS'Y
35
01224-40830
SCREW
36
205-54-72750
WASHER,LOCK
