Артикул
Название
Примечание
Количество
|$0
201-54-00500

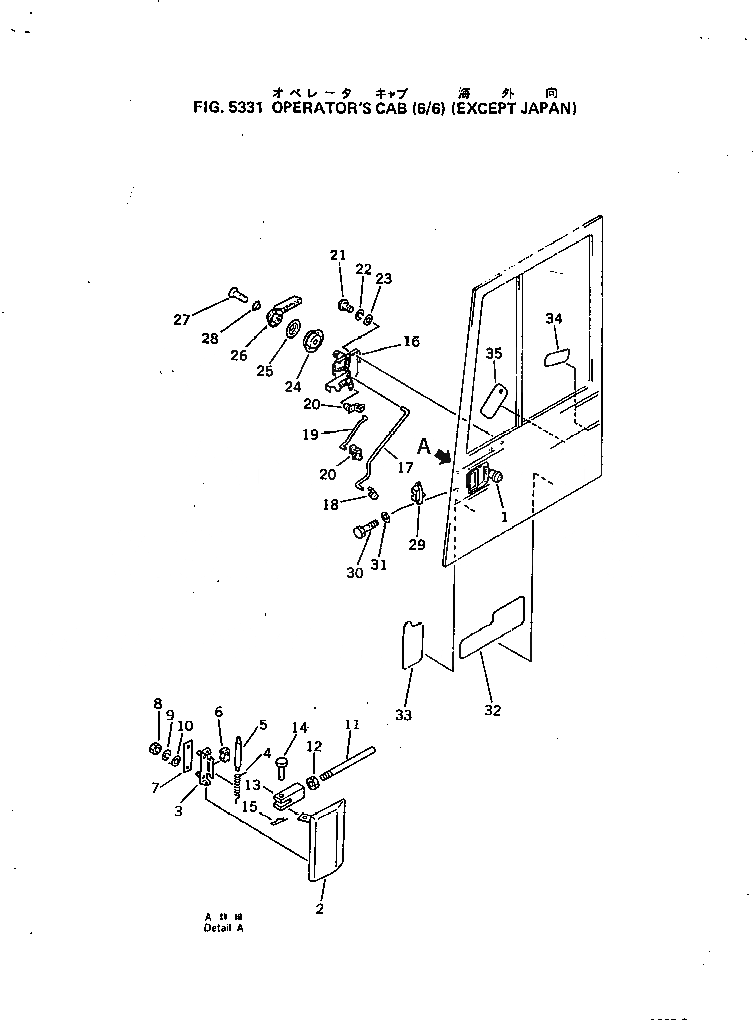

OPERATOR'S CAB ASS'Y
|$$2
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5321 TO 5331.
|$2
201-54-00520
DOOR ASS'Y
|$$4
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5329 AND 5331.
1
205-54-71642
LOCK ASS'Y
|$5
205-54-72101
HANDLE ASS'Y
2
205-54-72111
HANDLE
3
205-54-72121
BRACKET
4
205-54-72130
SPRING
5
205-54-72140
PIN
6
205-54-72150
CUSHION
7
205-54-72160
PACKING
8
01580-10605
NUT
9
01602-20619
WASHER,SPRING
10
01641-20608
WASHER
11
205-54-76290
ROD
12
01580-10605
NUT
13
04211-20634
YOKE
14
04205-10620
PIN
15
04052-00633
PIN,SNAP
|$20
205-54-71803
CONTROL ASS'Y
16
205-54-71812
CONTROL
17
205-54-71721
ROD
18
205-54-71840
SNAP
19
205-54-71822
ROD
20
205-54-71830
SNAP
21
01220-40610
SCREW
22
01602-20619
WASHER,SPRING
23
01641-20608
WASHER
24
566-54-24260
BASE
25
566-54-24270
ESCUTCHEON
26
205-54-71760
HANDLE
27
01225-40510
SCREW
28
205-54-71880
WASHER,LOCK
29
205-54-71710
LOCK ASS'Y
30
01010-50616
BOLT
31
01643-30623
WASHER
32
205-54-72481
SEAL
33
205-54-72491
SEAL
34
205-54-71790
SEAL
35
205-54-71780
SEAL
Выбрано товаров: 41
