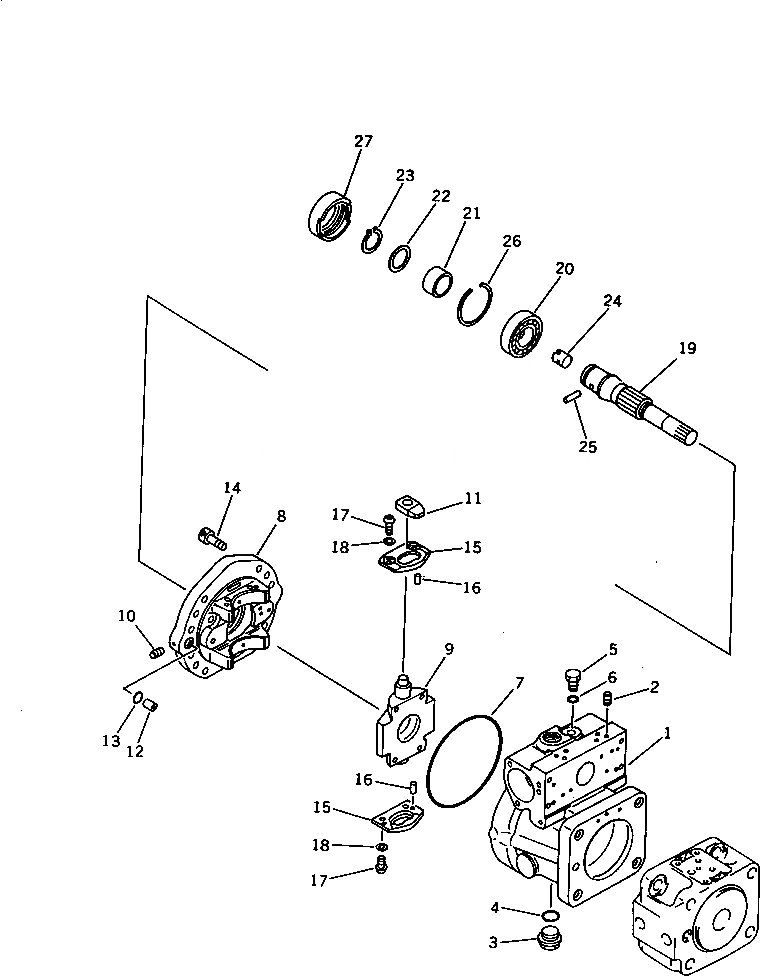

Запчасти Komatsu PC80LC-3 ГИДР. НАСОС.¤ ЗАДН. (/) (БЕЗ ВЫБОР РЕЖИМА OLSS)(№9-) ГИДРАВЛИКА

|$0

708-21-01040

PUMP ASS'Y,(HPV35+35)

|$$2

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6201A TO 6231.

|$2

PUMP SUB ASS'Y

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6203A TO 6211A.

|$4

708-21-01220

PUMP SUB ASS'Y

|$5

708-21-00020

CASE ASS'Y,REAR

1

CASE,REAR

2

PLUG

3

07044-12412

PLUG

4

07002-02434

O-RING

5

720-68-19870

PLUG

6

07002-01223

O-RING

7

O-RING

|$13

CRADLE ASS'Y

8

CRADLE,REAR

9

CAM,CAM

10

706-86-51180

PLUG

11

708-21-14220

SLIDER

12

708-21-12330

JOINT

13

07000-12012

O-RING

14

708-21-12380

BOLT

15

708-21-12340

PLATE

16

708-23-12370

PIN

17

708-21-12350

SCREW

18

708-21-12360

WASHER

19

708-21-12720

SHAFT

20

708-21-12751

BEARING

21

708-21-12670

COLLAR

22

708-21-05010

WASHER KIT

22

WASHER

22

WASHER

22

WASHER

22

WASHER

23

708-25-22830

RING,SNAP

24

708-21-12931

COUPLING

25

708-21-12940

PIN

26

708-21-12660

RING

27

708-21-12650

RETAINER
