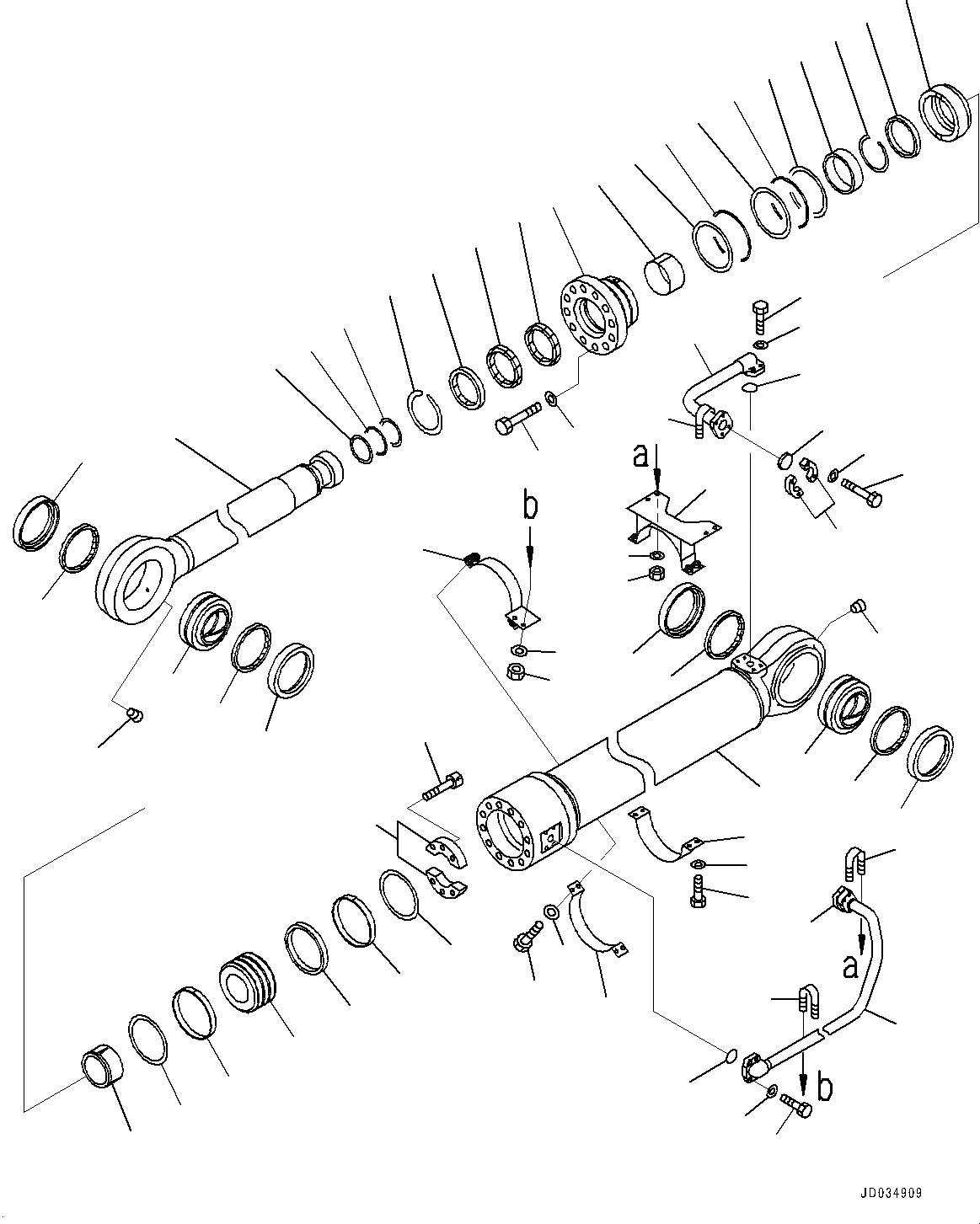

Запчасти Komatsu PC800SE-8R1 ЦИЛИНДР КОВША (№7-) ЦИЛИНДР КОВША, 9MM РУКОЯТЬ

|$0

707-01-0AW00

Cylinder Assembly

1

707-13-22550

Cylinder

2

707-58-16230

Rod

3

707-46-14010

Bushing

4

21T-72-15860

Bushing

5

21T-72-15870

Seal, Dust, (Kit : K10)

6

07043-00108

Plug, Taper

7

707-46-14010

Bushing

8

21T-72-15860

Bushing

9

21T-72-15870

Seal, Dust, (Kit : K10)

10

07043-00108

Plug, Taper

11

707-71-31430

Collar

12

707-71-31780

Collar

13

707-71-11750

Ring

14

07000-15220

O-ring, (Kit : K10)

15

07001-05220

Ring, Back-up, (Kit : K10)

16

707-71-51760

Plunger

17

707-27-22720

Head

18

707-56-16740

Seal, Dust, (Kit : K10)

19

07179-14180

Ring, Snap

20

707-51-16030

Packing, Rod, (Kit : K10)

21

707-51-16650

Ring, Buffer, (Kit : K10)

22

707-52-91351

Bushing

23

07000-15220

O-ring, (Kit : K10)

24

07001-05220

Ring, Back-up, (Kit : K10)

25

01011-83010

Bolt

26

01643-33080

Washer

27

707-75-16110

Ring, Snap

28

707-36-22300

Piston

29

707-44-22250

Ring, Piston, (Kit : K10)

30

707-39-22800

Ring, Wear, (Kit : K10)

31

707-44-22920

Ring

32

707-40-22870

Spacer

33

01252-61670

Bolt

34

07000-B5135

O-ring, (Kit : K10)

35

707-35-91440

Ring, Back-up, (Kit : K10)

36

707-86-14340

Tube

37

07000-13048

O-ring, (Kit : K10)

38

209-63-73381

Tube

39

07000-13048

O-ring, (Kit : K10)

40

209-63-73391

Bracket

41

707-88-22090

Bracket

42

07283-34346

Clip

43

01643-31032

Washer

44

01597-01009

Nut

45

07372-21240

Bolt

46

01643-51232

Washer

47

01010-81245

Bolt

48

01643-31232

Washer

49

01010-81450

Bolt

50

01643-31445

Washer, Flat

51

707-88-21070

Band

52

707-88-33050

Cap

53

07371-51260

Flange, Split
