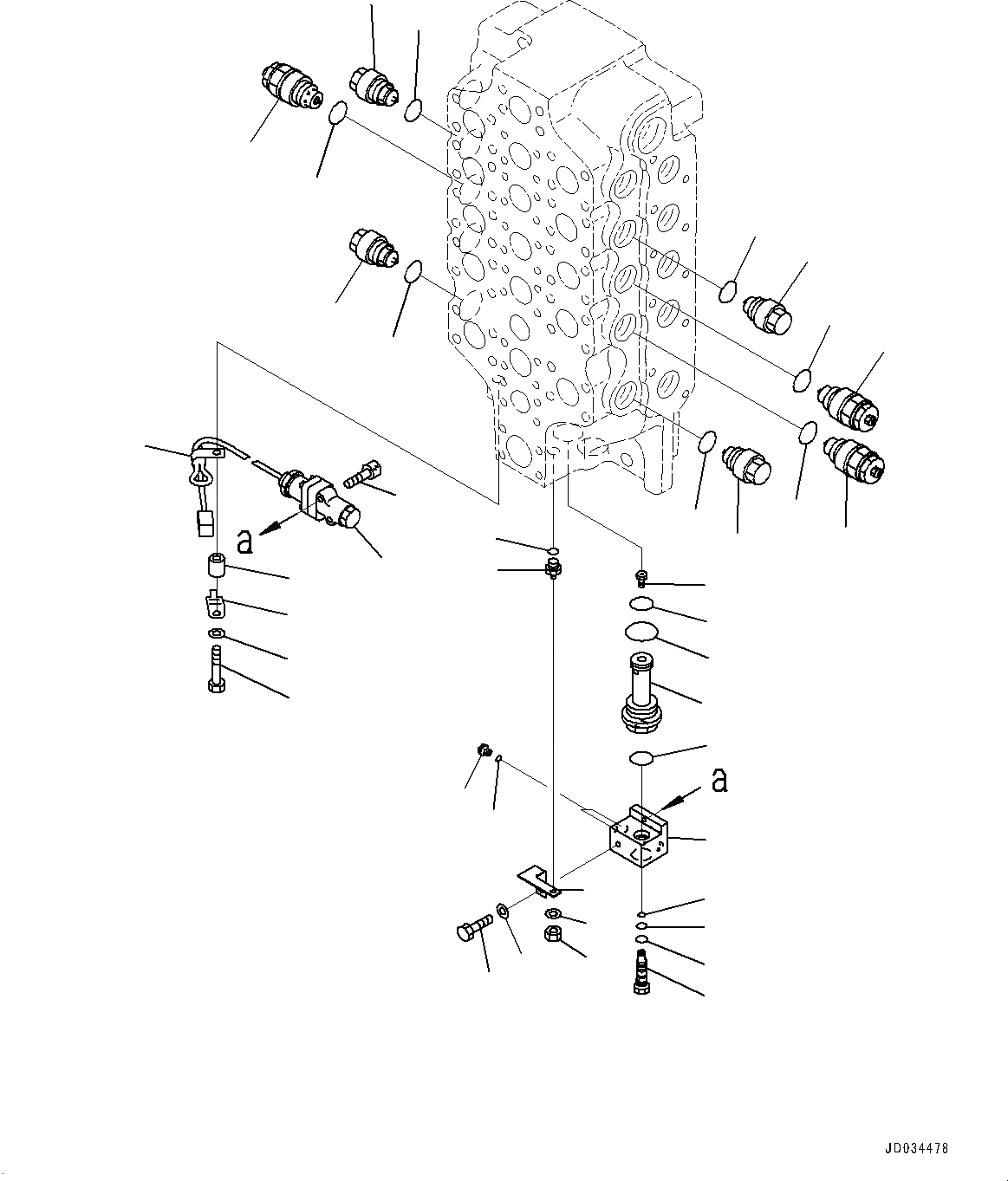

Запчасти Komatsu PC800SE-8E0 УПРАВЛЯЮЩ. КЛАПАН, 5-СЕКЦИОНН. (/) (№-) УПРАВЛЯЮЩ. КЛАПАН, АНГЛ., США И PUERTO RICO

|$0

709-15-95600

Valve, Control

1

709-90-74300

Valve Assembly, Suction and Relief

2

07002-13634

O-ring

3

709-90-71100

Valve Assembly, Suction and Relief, Suction and Safety

4

07002-03634

O-ring

5

723-60-23800

Valve Assembly, Suction

6

07002-13634

O-ring

6

709-10-92400

Orifice Assembly

7

709-10-91370

Orifice

8

709-14-11660

Orifice

9

700-93-11320

O-ring

10

07002-13634

O-ring

11

07000-11007

O-ring

12

709-14-12450

Block

13

07000-12010

O-ring

14

07000-12012

O-ring

15

709-14-12460

Plug

16

708-8E-16160

Plug

17

07002-11023

O-ring

18

01643-30623

Washer

19

01580-10605

Nut

20

709-14-12470

Plug

21

07002-11423

O-ring

22

709-14-12490

Plate

23

01643-31032

Washer

24

01010-81016

Bolt

25

08193-20010

Clip

26

01010-81045

Bolt

27

6112-21-6960

Spacer

28

04435-50810

Clip

29

01643-31032

Washer

30

729-13-01110

Sensor Assembly

31

01252-60835

Bolt, Hexagon Socket Head
