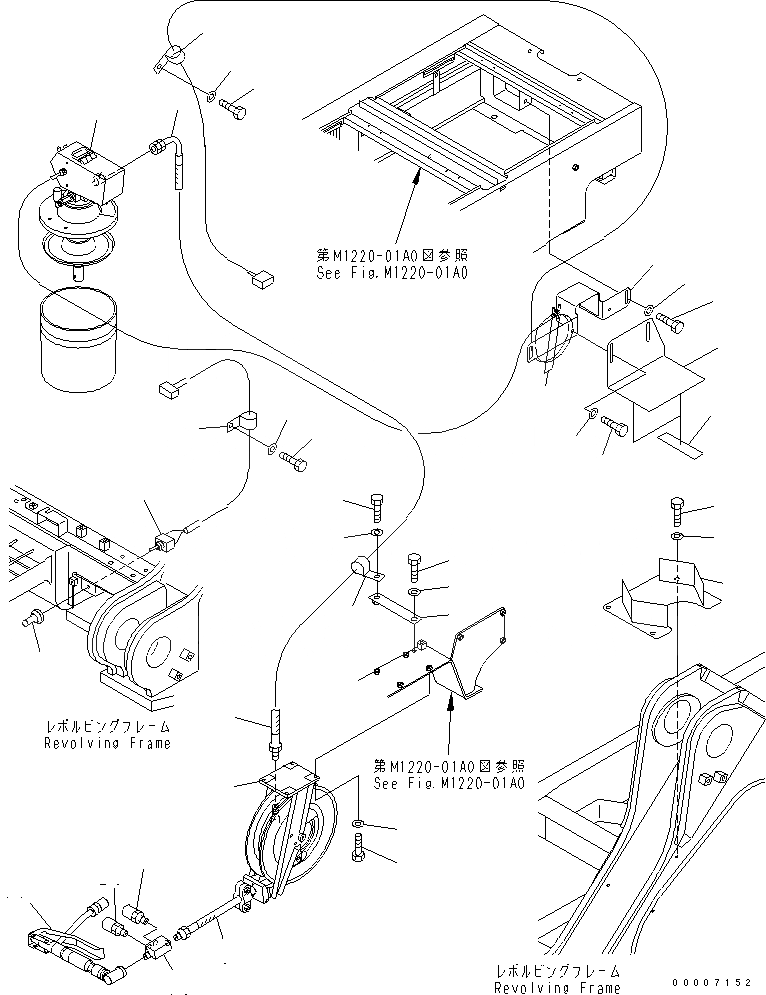

Запчасти Komatsu PC800SE-7 НАСОС СМАЗКИ РАЗНОЕ

1

21M-98-11110

GREASE PUMP ASS'Y,(SEE FIG. Y1680-01A0)

2

209-98-77110

HOSE

3

209-68-51241

HOSE REEL ASS'Y,(SEE FIG. Y1680-03A0)

4

01010-81030

BOLT

5

01643-31032

WASHER

6

21T-68-72450

HOSE

7

207-977-5120

BRACKET

8

01010-81230

BOLT

9

01643-31232

WASHER

10

04434-51912

CLIP

11

01010-81230

BOLT

12

01643-31232

WASHER

13

04434-51012

CLIP

13

04434-50812

CLIP

14

01010-81220

BOLT

15

01643-31232

WASHER

16

08058-00825

CLIP

17

209-68-11230

GREASE GUN ASS'Y,(SEE FIG. Y1680-02A0)

18

21M-98-11130

TEE

19

21M-98-11140

INDICATOR

20

21M-98-11150

INDICATOR

21

209-54-77891

BRACKET

22

01010-81230

BOLT

23

01643-31232

WASHER

24

209-53-11611

BRACKET

25

01010-81225

BOLT

26

175-54-34170

WASHER

27

209-53-11640

BRACKET

28

209-53-11650

SHEET

29

01010-81225

BOLT

30

175-54-34170

WASHER

31

209-06-77240

SWITCH

32

203-06-41610

CAP

33

04434-51012

CLIP

34

01010-81225

BOLT

35

01643-31232

WASHER
