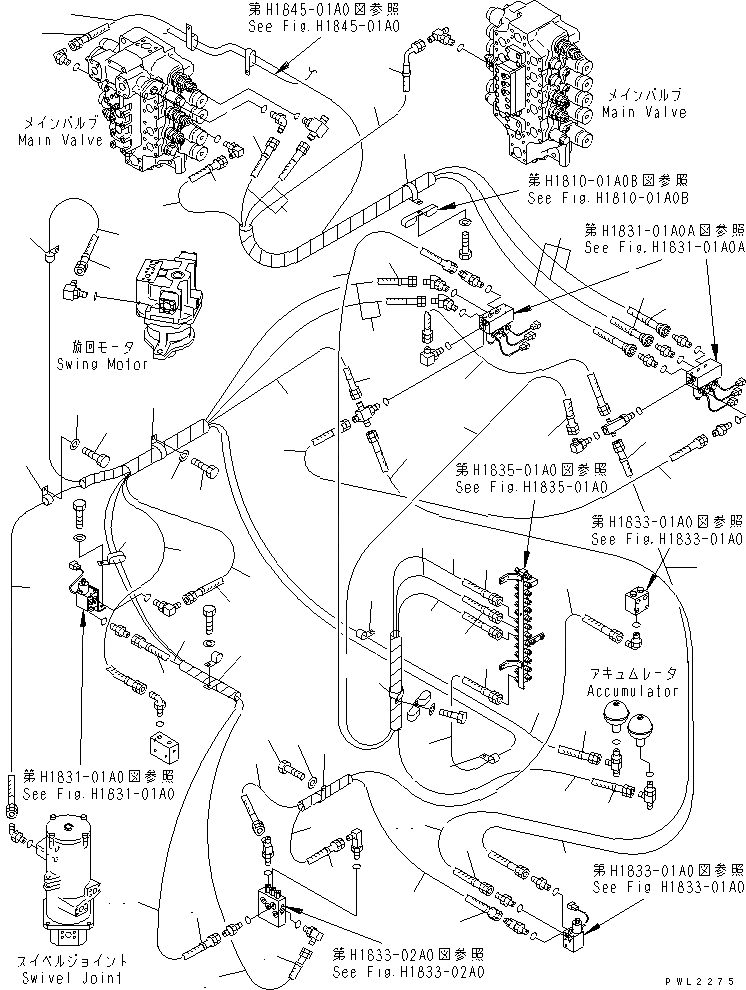

Запчасти Komatsu PC800SE-6 СОЛЕНОИДНЫЙ КЛАПАН ЛИНИЯ(№7-999) ГИДРАВЛИКА

1

209-62-77640

HOSE

2

201-62-72320

HOSE, 300MM

3

20Y-62-22790

BAND, RED

4

20Y-62-22810

BAND, YELLOW

5

20Y-62-22820

BAND, BLUE

6

20Y-62-22830

BAND, WHITE

7

20Y-62-22840

BAND, BLACK

8

207-62-16950

HOSE, 800MM

9

20Y-62-23920

HOSE, 2200MM

10

209-62-77730

HOSE, 2100MM

11

203-62-62790

HOSE, 1300MM

12

20Y-62-15951

CLIP

13

01010-81225

BOLT

14

01643-31232

WASHER

15

04434-51512

CLIP

16

04435-51512

CLIP

17

01010-81225

BOLT

18

01643-31232

WASHER

19

04435-51612

CLIP

20

20Y-62-22790

BAND, RED

21

20Y-62-22850

BAND, GREEN

22

20Y-62-22910

HOSE, 1050MM

23

203-62-62790

HOSE, 1300MM

24

113-899-7950

CLIP

25

20Y-62-22790

BAND, RED

26

20Y-62-22830

BAND, WHITE

27

20Y-62-22850

BAND, GREEN

28

209-62-77751

HOSE

29

209-62-77810

HOSE

30

113-899-7950

CLIP

31

20Y-62-22790

BAND, RED

32

209-62-77820

HOSE

33

20Y-62-22910

HOSE, 1050MM

34

04435-51612

CLIP

35

01010-81225

BOLT

36

01643-31232

WASHER

37

20Y-62-22790

BAND, RED

38

07184-00305

HOSE

38

201-62-72320

HOSE, 300MM

39

07184-00303

HOSE

39

209-62-77720

HOSE
