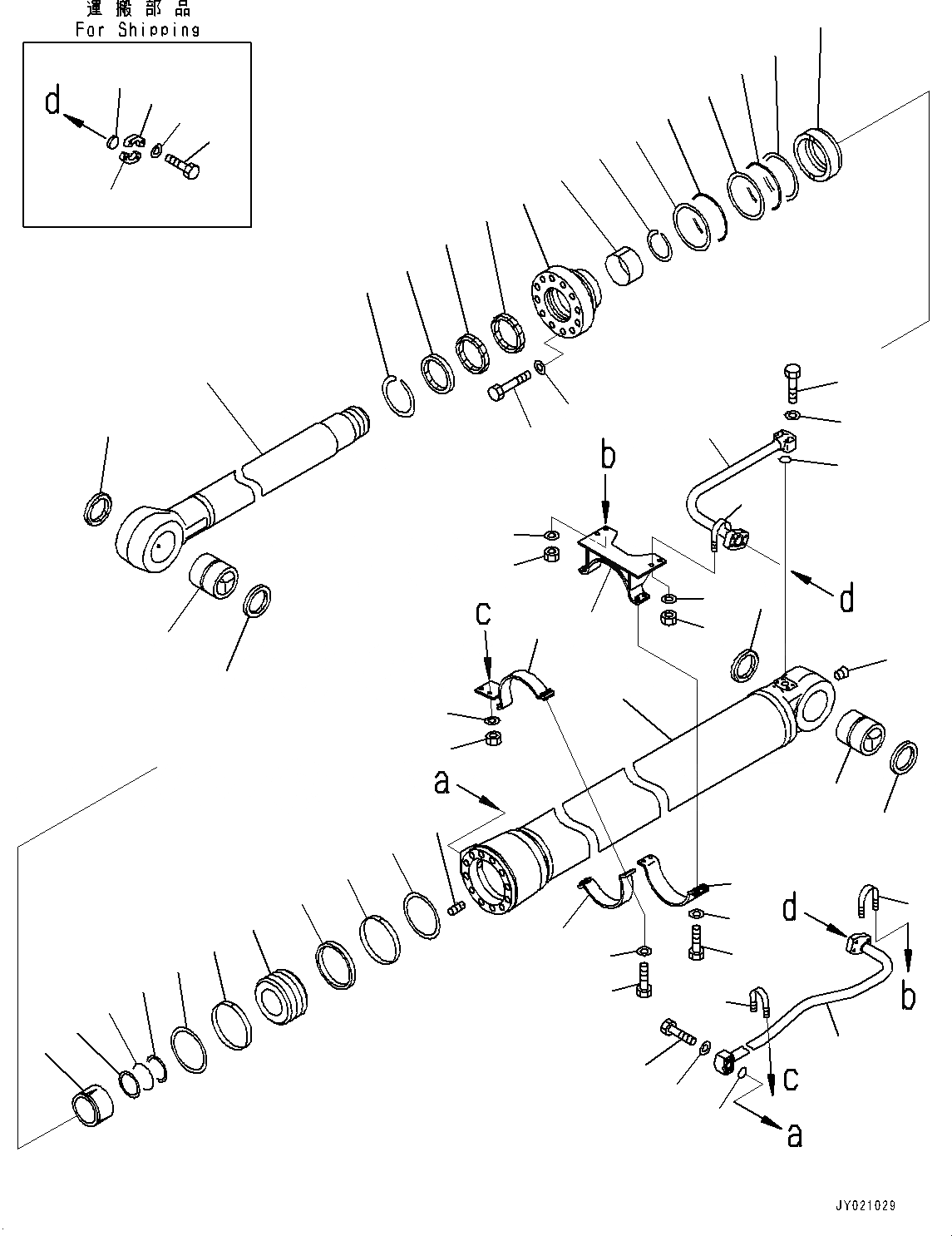

Запчасти Komatsu PC800LC-8R1 ЦИЛИНДР КОВША (№7-) ЦИЛИНДР КОВША, MM РУКОЯТЬ, MM РУКОЯТЬ, MM РУКОЯТЬ

|$0

707-01-0AU50

Cylinder Assembly

1

721-13-18250

Cylinder

2

707-58-13350

Rod, Piston

3

707-76-11130

Bushing

4

07145-00110

Seal, Dust, (Kit : K09)

5

07043-00108

Plug, Taper

6

707-76-11130

Bushing

7

07145-00110

Seal, Dust, (Kit : K09)

8

707-71-35060

Collar

9

707-35-91840

Ring, Back-up, (Kit : K09)

10

07000-15175

O-ring, (Kit : K09)

11

707-71-61430

Plunger

12

707-27-18180

Head, Cylinder

13

707-56-13740

Seal, Dust, (Kit : K09)

14

07179-14146

Ring, Snap

15

707-51-13030

Packing, Rod, (Kit : K09)

16

707-51-13650

Ring, Buffer, (Kit : K09)

17

707-52-91071

Bushing

18

707-35-91840

Ring, Back-up, (Kit : K09)

19

07000-15175

O-ring, (Kit : K09)

20

07179-13136

Ring, Snap

21

01011-82400

Bolt

22

707-88-75410

Washer

23

707-36-18530

Piston

24

07001-05120

Ring, Back-up, (Kit : K09)

25

07000-B5120

O-ring, (Kit : K09)

26

707-44-18250

Ring, Piston, (Kit : K09)

27

707-39-18510

Ring, Wear, (Kit : K09)

28

707-44-18920

Ring

29

01310-01225

Screw

30

707-86-00480

Tube

31

209-63-73582

Tube

32

707-88-50690

Bracket

33

707-88-50700

Bracket

34

707-88-26530

Band

35

707-88-26540

Band

36

07372-21250

Bolt

37

01643-51232

Washer

38

07372-21060

Bolt

39

01643-51032

Washer

40

07000-13035

O-ring, (Kit : K09)

41

07283-33442

Clip, Pipe

42

01597-01009

Nut

43

01643-31032

Washer

44

07371-51260

Flange, Split

45

01010-81245

Bolt

46

01643-31232

Washer

47

707-88-33050

Cap
