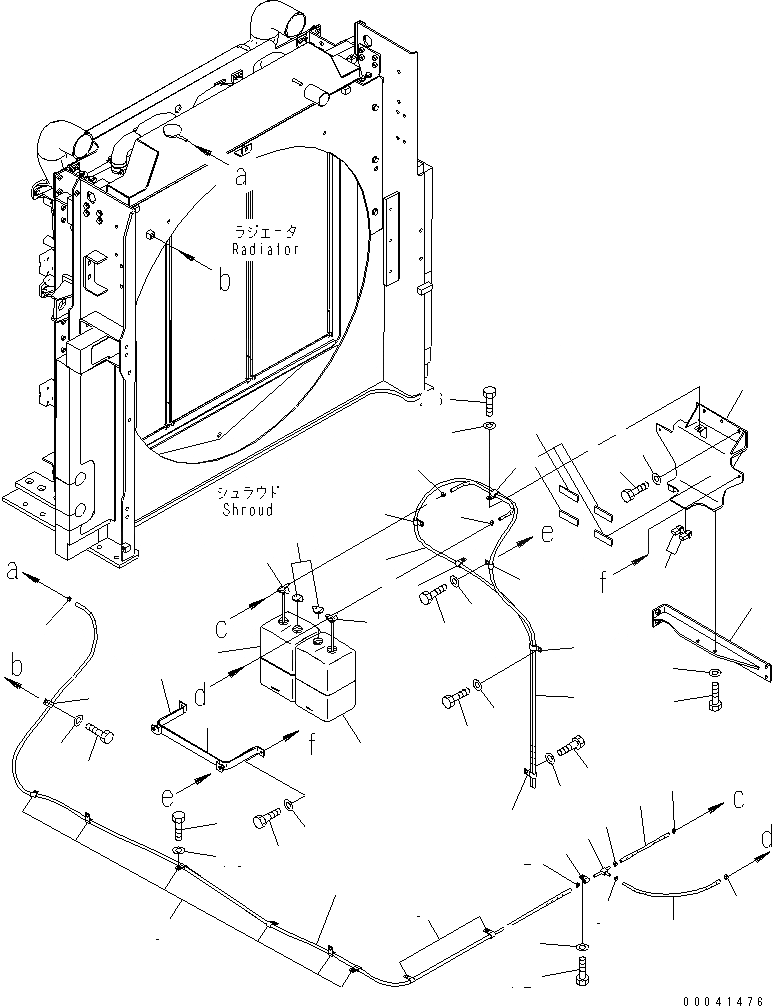

Запчасти Komatsu PC800LC-8K ОХЛАЖД-Е (ВТОРИЧН. БАК) C СИСТЕМА ОХЛАЖДЕНИЯ

1

209-03-41821

HOSE

2

20E-03-K1190

CLIP

|2

07285-00110

CLIP

3

21N-03-32210

JOINT

4

209-03-77430

HOSE, 450MM

5

20E-03-K1190

CLIP

|5

07285-00110

CLIP

6

209-03-77440

HOSE, 300MM

7

20E-03-K1190

CLIP

|7

07285-00110

CLIP

8

04434-51512

CLIP

|8

04434-51212

CLIP

9

01010-81220

BOLT

10

01643-31232

WASHER

11

04434-50812

CLIP

12

01010-81220

BOLT

13

01643-31232

WASHER

14

21N-03-31490

TANK

15

21N-03-32360

CAP ASSEMBLY

16

21N-03-32350

CAP ASSEMBLY

17

08055-00282

CONNECTOR

18

203-03-41260

HOSE

19

20E-03-K1190

CLIP

|19

07285-00110

CLIP

20

209-03-77420

HOSE, 2200MM

21

20E-03-K1190

CLIP

|21

07285-00110

CLIP

22

04434-51512

CLIP

|22

04434-51212

CLIP

23

01010-81220

BOLT

24

01643-31232

WASHER

25

04435-51512

CLIP

|25

04435-51212

CLIP

26

01010-81220

BOLT

27

01643-31232

WASHER

28

209-03-77340

BAND

29

01010-80820

BOLT

30

01643-30823

WASHER

31

209-03-77352

BRACKET

32

205-03-71440

SHEET

33

01010-81230

BOLT

34

01643-31232

WASHER

35

209-03-41991

BRACKET

36

01010-81230

BOLT

37

01643-31232

WASHER
