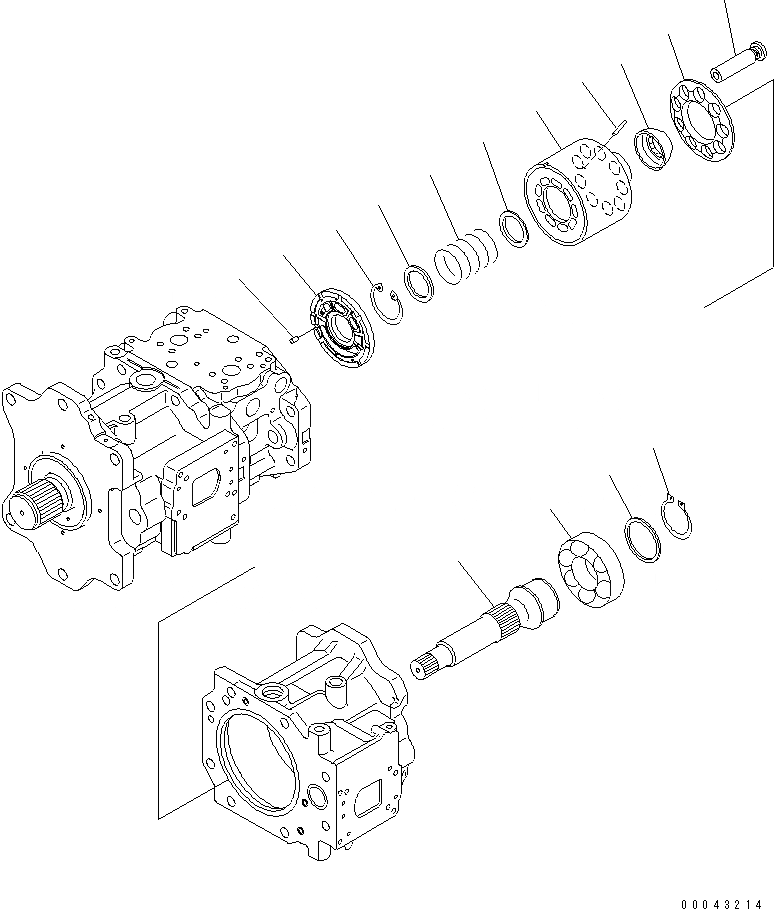

Запчасти Komatsu PC800LC-8K ОСНОВН. НАСОС (/) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-2K-00110

PUMP ASSEMBLY

|1

708-2K-01110

PUMP SUB ASSEMBLY

1

708-2K-12330

SHAFT,REAR

2

708-2K-12260

BEARING

3

708-2K-05050

WASHER KIT

|3

708-2K-12170

WASHER, 5.0MM

|3

708-2K-12180

WASHER, 5.1MM

|3

708-2K-12190

WASHER, 5.2MM

|3

708-2K-12380

WASHER, 4.8MM

|3

708-2K-12390

WASHER, 4.9MM

4

04064-09030

RING

|5

708-2K-04281

CYLINDER BLOCK ASSEMBLY,REAR

5

CYLINDER BLOCK

6

VALVE,PLATE

7

708-18-13230

PIN

8

708-2K-13361

PIN

9

708-2K-13130

SEAT

10

708-2K-13151

SPRING

11

708-2K-13140

SEAT

12

04065-08530

RING

13

708-2K-13350

GUIDE,RETAINER

14

708-2K-13371

RETAINER,SHOE

15

708-2K-13312

PISTON SUB ASSEMBLY
