Запчасти Komatsu PC800LC-8E0 ОСНОВН. ПОРШЕНЬ НАСОС, ВНУТР. ЧАСТИ, ОСНОВН. НАСОС (/) ОСНОВН. ПОРШЕНЬ НАСОС

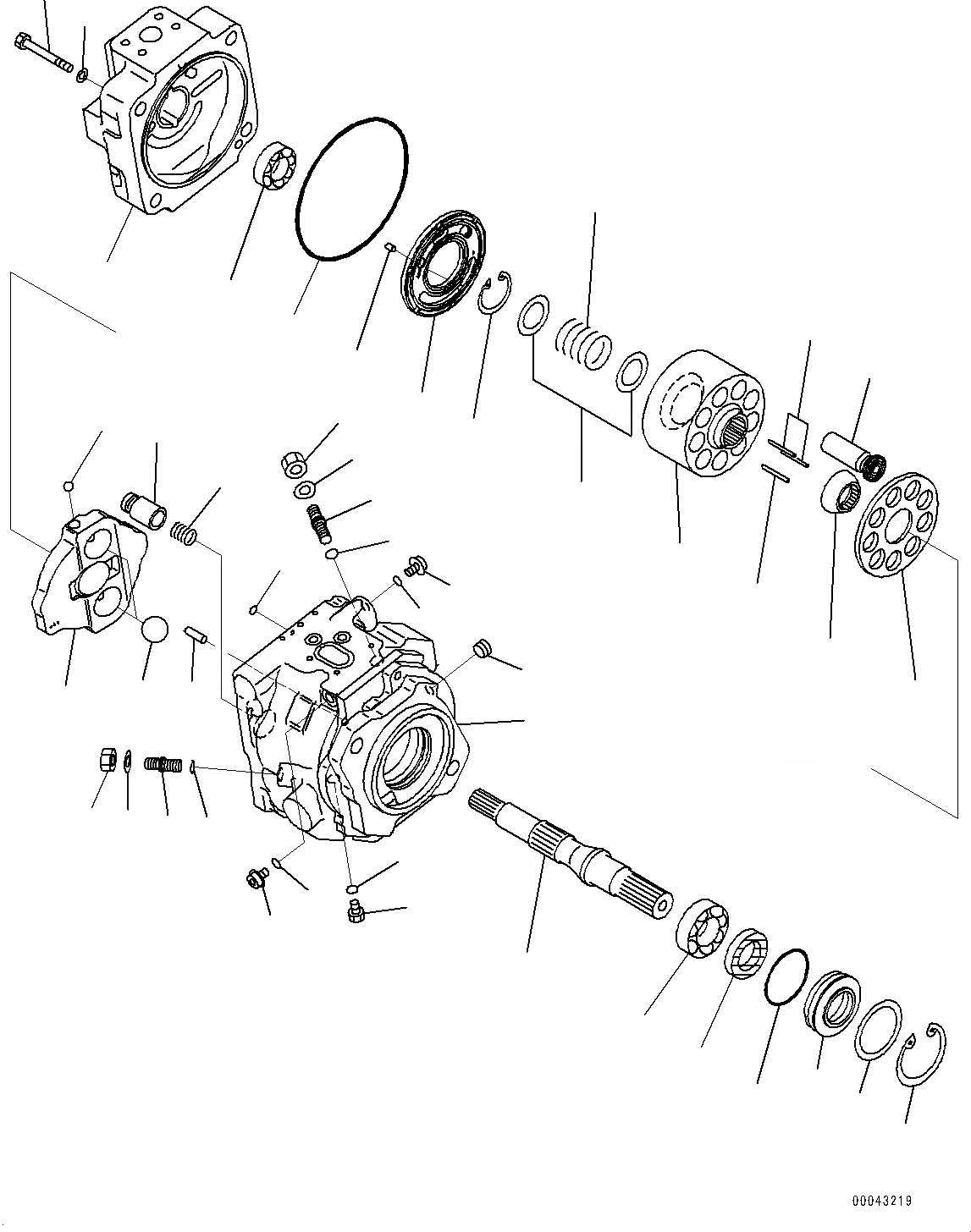

Схема запчастей Komatsu PC800LC-8E0 - ОСНОВН. ПОРШЕНЬ НАСОС, ВНУТР. ЧАСТИ, ОСНОВН. НАСОС (/) ОСНОВН. ПОРШЕНЬ НАСОС
28
25
29
26
7
13
12
10
11
16
34
35
39
38
36
37
3
4
2
1
27
24
31
31
15
14
9
8
39
38
36
37
3
4
6
5
17
18
20
21
19
30
32
23
22
33

Артикул

Название

Примечание

Количество

|$1

708-2K-00114

Pump Assembly

|$2

708-2K-00113

Pump Assembly

|$3

708-1W-00901

Pump Assembly

|$4

708-1W-00911

Pump Assembly

|$5

708-1W-01916

Pump Subassembly

|$6

708-1W-04961

Case Assembly

1

Case, Pump

2

Plug

3

708-8E-16160

Plug

4

07002-11023

O-Ring

5

07040-11409

Plug

6

07002-11423

O-Ring

7

706-73-42370

O-Ring

8

07000-B1009

O-Ring

9

04020-01024

Pin, Dowel

10

01010-61470

Bolt

11

01643-31445

Washer

12

708-1W-41541

Cap, End

13

708-1W-42120

Bearing

14

708-3T-13420

Ball

15

708-1W-43420

Cam, Rocker

16

04260-01270

Ball

17

708-1U-12120

Shaft

18

708-1W-42110

Bearing

19

708-1U-12320

Case

20

708-1W-42130

Seal, Oil

21

07000-B2065

O-Ring

22

708-1W-05811

Spacer Kit

22

708-1W-42330

Spacer, T=1.8mm

22

708-1W-42630

Spacer, T=1.85mm

22

708-1W-42340

Spacer, T=1.9mm

22

708-1W-42640

Spacer, T=1.95mm

22

708-1W-42350

Spacer, T=2.0mm

22

708-1W-42650

Spacer, T=2.05mm

22

708-1W-42360

Spacer, T=2.1mm

22

708-1W-42660

Spacer, T=2.15mm

22

708-1W-42370

Spacer, T=2.2mm

23

04065-07225

Ring, Snap

24

Block, Cylinder

25

Plate, Valve

26

720-68-19610

Pin

27

708-1W-43130

Seat

28

708-1W-43140

Spring

29

04065-04818

Ring, Snap

30

708-1W-43350

Guide, Retainer

31

708-3T-13360

Pin

32

708-1W-43341

Retainer, Shoe

33

708-1U-13310

Piston Subassembly

34

708-1W-44130

Piston

35

708-3T-14120

Spring

36

708-1U-14240

Screw

37

07000-12011

O-Ring

38

01643-31232

Washer

39

01582-11210

Nut

Выбрано товаров: 54
