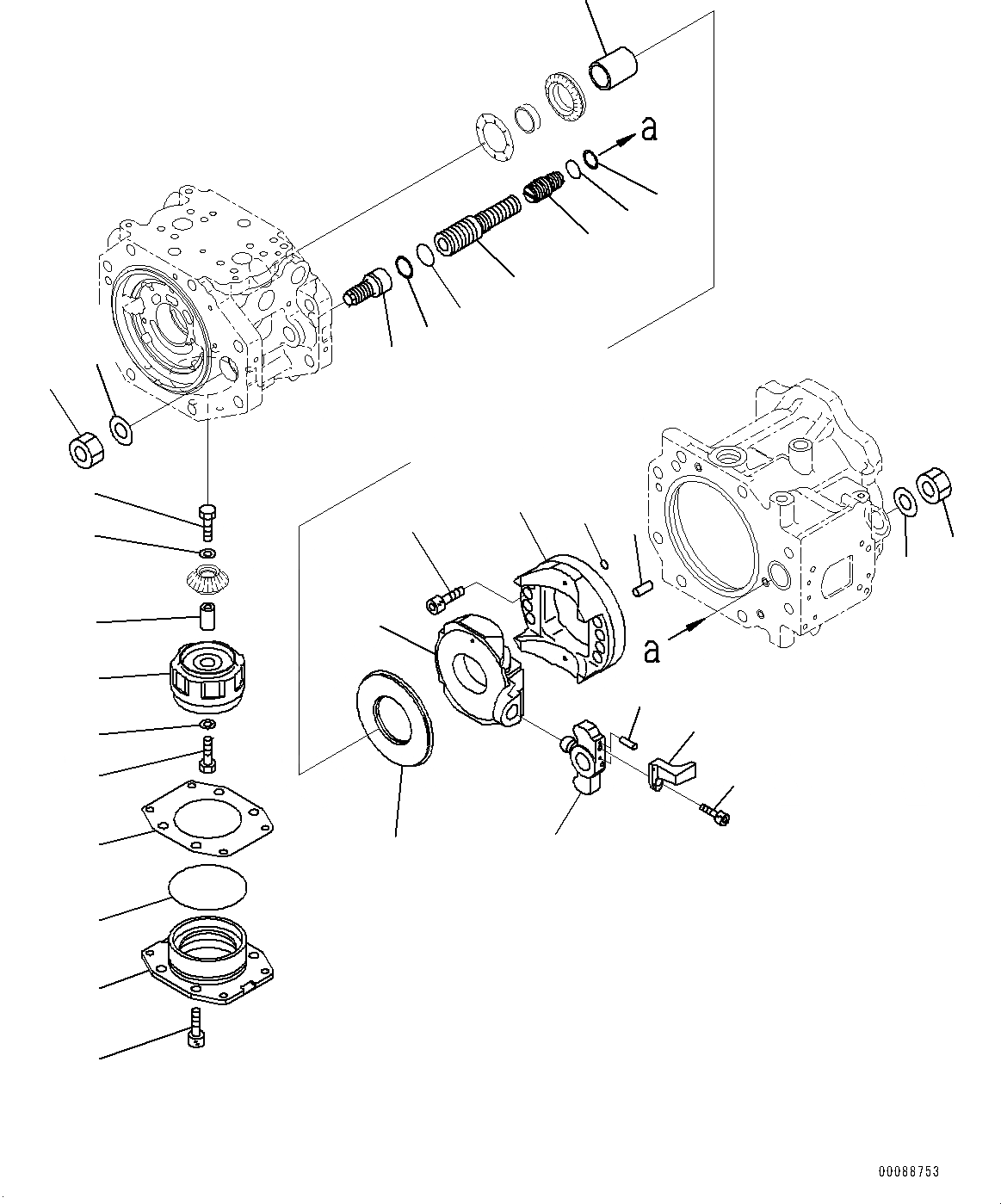

Запчасти Komatsu PC800LC-8E0 ОСНОВН. ПОРШЕНЬ НАСОС, ВНУТР. ЧАСТИ, ОСНОВН. НАСОС (/) ОСНОВН. ПОРШЕНЬ НАСОС

|$1

708-2K-00114

Pump Assembly

|$2

708-2K-00113

Pump Assembly

|$3

708-2K-01115

Pump Subassembly

|$4

708-2K-04260

Cradle Assembly

1

Cradle

2

Cam, Rocker

3

708-2K-13430

Plate

4

04020-01638

Pin, Dowel

5

708-2K-11170

O-Ring

6

01252-61445

Bolt

7

708-2K-14110

Piston

8

708-2K-14130

Rod

9

708-2K-15180

Cam

10

720-68-19610

Pin

11

01252-61030

Bolt

12

708-2K-14250

Screw

13

07000-B3039

O-Ring

14

07001-03039

Ring, Back-Up

15

01643-33080

Washer

16

01583-13018

Nut

17

708-2K-14230

Screw

18

07000-B3032

O-Ring

19

07001-03032

Ring, Back-Up

20

01643-33080

Washer

21

01583-13018

Nut

22

708-2K-12240

Coupling

23

708-2K-11730

Impeller

24

708-2K-11810

Shaft

25

01010-E1225

Bolt

26

708-2K-11820

Washer

27

708-2K-11740

Flange

28

07000-A5135

O-Ring

29

708-2K-05020

Shim Kit

29

708-2K-11750

Shim, T=0.1mm

29

708-2K-11760

Shim, T=0.2mm

29

708-2K-11770

Shim, T=0.5mm

30

01252-61230

Bolt
