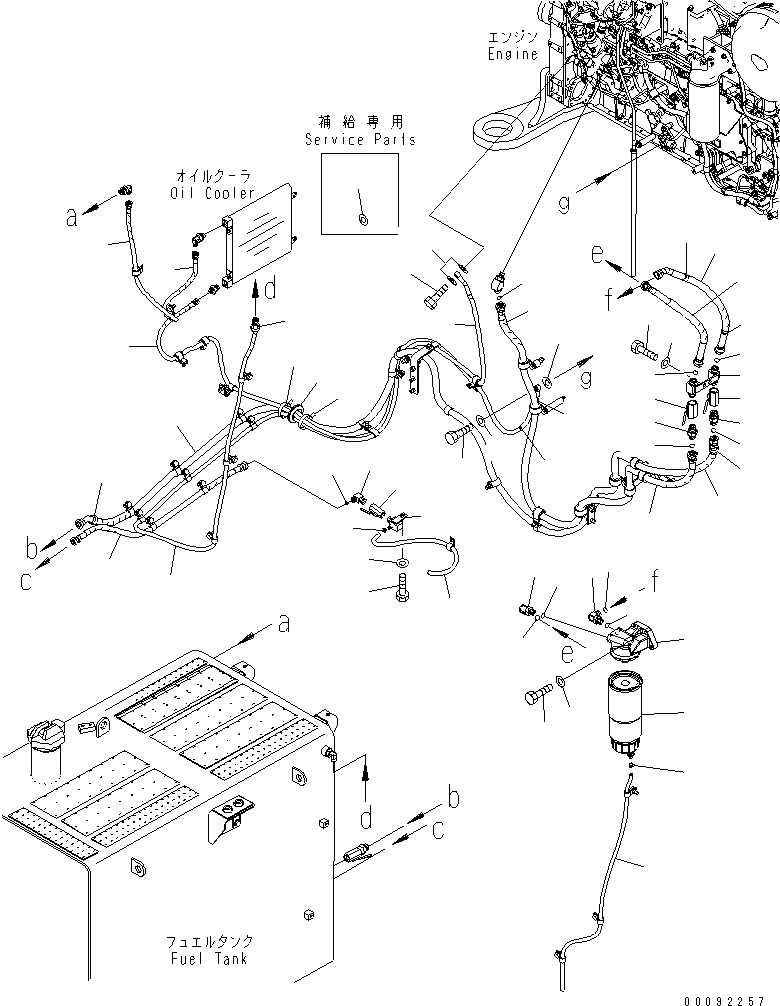

Запчасти Komatsu PC800LC-8 ТОПЛИВОПРОВОД. (ФИЛЬТР. И ШЛАНГИ)(№-) ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

1

6261-71-6430

HEAD

2

01010-81040

BOLT

3

01643-31032

WASHER

4

600-311-4500

FILTER ASS'Y

5

02782-10516

ELBOW

6

07002-12034

O-RING

7

02896-11015

O-RING

8

02764-00505

HOSE

9

02764-005A5

HOSE

10

20Y-62-22790

BAND, RED

11

209-04-41670

BRACKET

12

01010-81225

BOLT

13

01643-31232

WASHER

14

02896-11015

O-RING

15

07700-40661

VALVE

16

209-04-42150

UNION

17

02896-11015

O-RING

18

07287-00815

HOSE

19

07285-00125

CLIP

20

02764-00547

HOSE

21

20Y-62-22790

BAND, RED

22

209-04-42170

HOSE ASS'Y

23

02896-11015

O-RING

24

209-04-42290

HOSE ASS'Y

25

07206-31014

BOLT

26

07005-01412

SEAL, WASHER

27

07005-01412

SEAL, WASHER,SERVICE PARTS

28

209-04-42251

HOSE, 4200MM

29

20Y-62-22810

BAND, YELLOW

30

209-04-42242

HOSE ASS'Y

31

21T-06-73320

GROMMET

32

08034-20536

BAND

33

07700-40460

VALVE

34

209-04-41320

ELBOW

35

01010-81230

BOLT

36

01643-31232

WASHER

37

21N-64-36520

ELBOW

38

02896-11012

O-RING

39

02762-00409

HOSE

40

07270-61210

TUBE

41

07285-00125

CLIP
