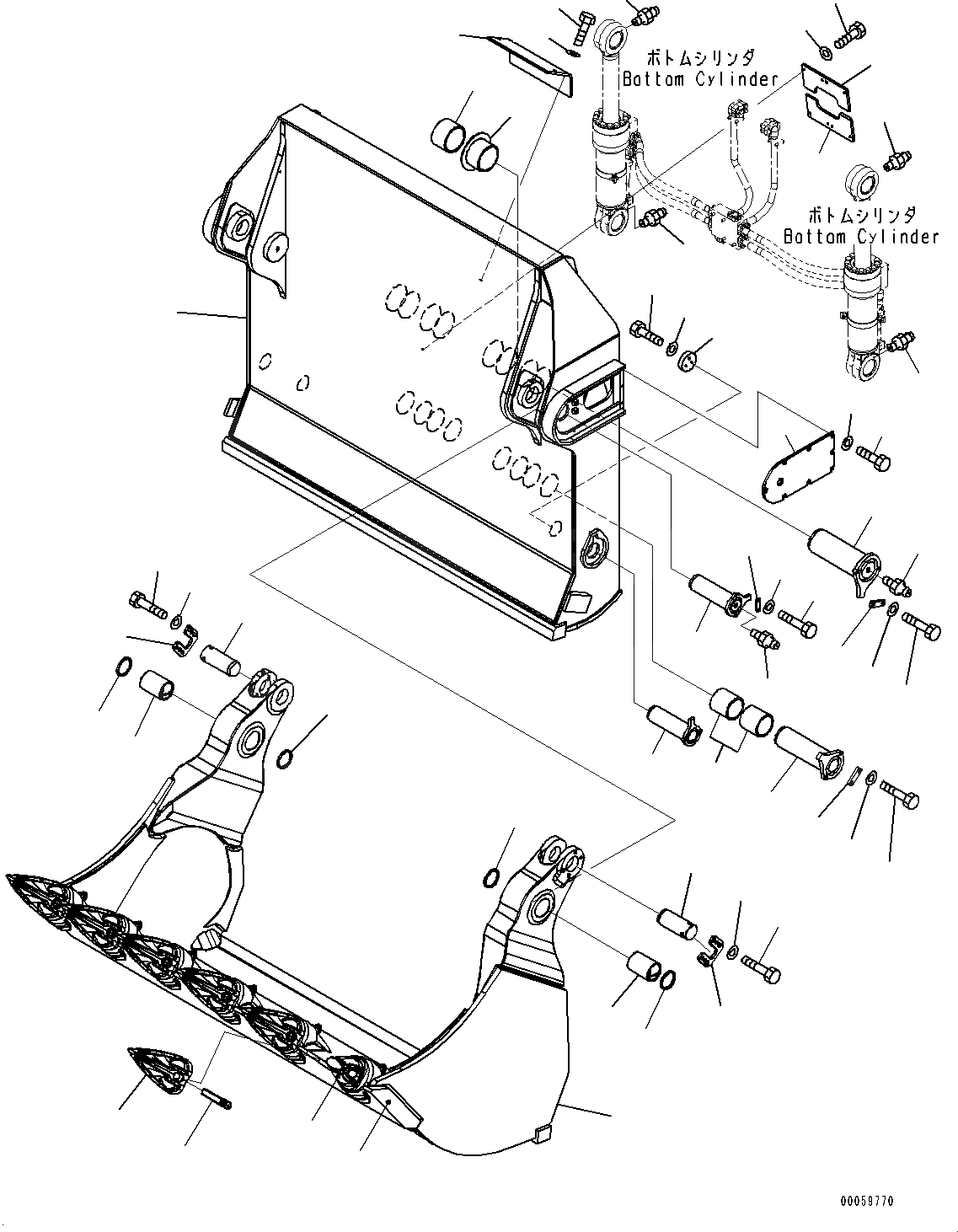

Запчасти Komatsu PC800-8R1 КОВШ (№7-) КОВШ, .M НИЖН. РАЗГРУЗКА, KMAX TOOTH, ПРЯМАЯ ЛОПАТА CONFIGURATION

1

209-72-41410

Bucket

2

209-72-41420

Plate,Welded

3

21N-70-37711

Adapter,Welded

4

209-72-14310

Bushing

5

209-72-14320

Seal

6

21N-70-37721

Tooth

7

21N-70-37731

Pin Assembly

8

209-72-75151

Bucket

9

209-72-54320

Cover

10

01010-81020

Bolt

11

01643-31032

Washer

12

209-72-54181

Bushing

13

209-72-54191

Bushing

14

209-72-75130

Bushing

15

209-72-54230

Pin

16

209-72-54390

Plate

17

01010-81230

Bolt

18

01643-31232

Washer

19

209-72-54261

Pin

20

209-72-14260

Lock

21

01010-82045

Bolt

22

01643-32060

Washer

23

209-72-54240

Pin

24

209-72-54250

Holder

25

01010-81235

Bolt

26

01643-31232

Washer

27

07020-00000

Fitting, Grease

28

07020-00000

Fitting, Grease

29

07020-00000

Fitting, Grease

30

209-72-53190

Pin

31

207-70-11230

Plate

32

01010-81640

Bolt

33

01643-31645

Washer

34

07020-00000

Fitting, Grease

35

209-72-54171

Pin

36

207-70-11230

Plate

37

01010-81640

Bolt

38

01643-31645

Washer

39

209-72-75170

Plate

40

01010-81040

Bolt

41

01643-31032

Washer

42

21M-72-11740

Plate

43

01010-81230

Bolt

44

175-54-34170

Washer
