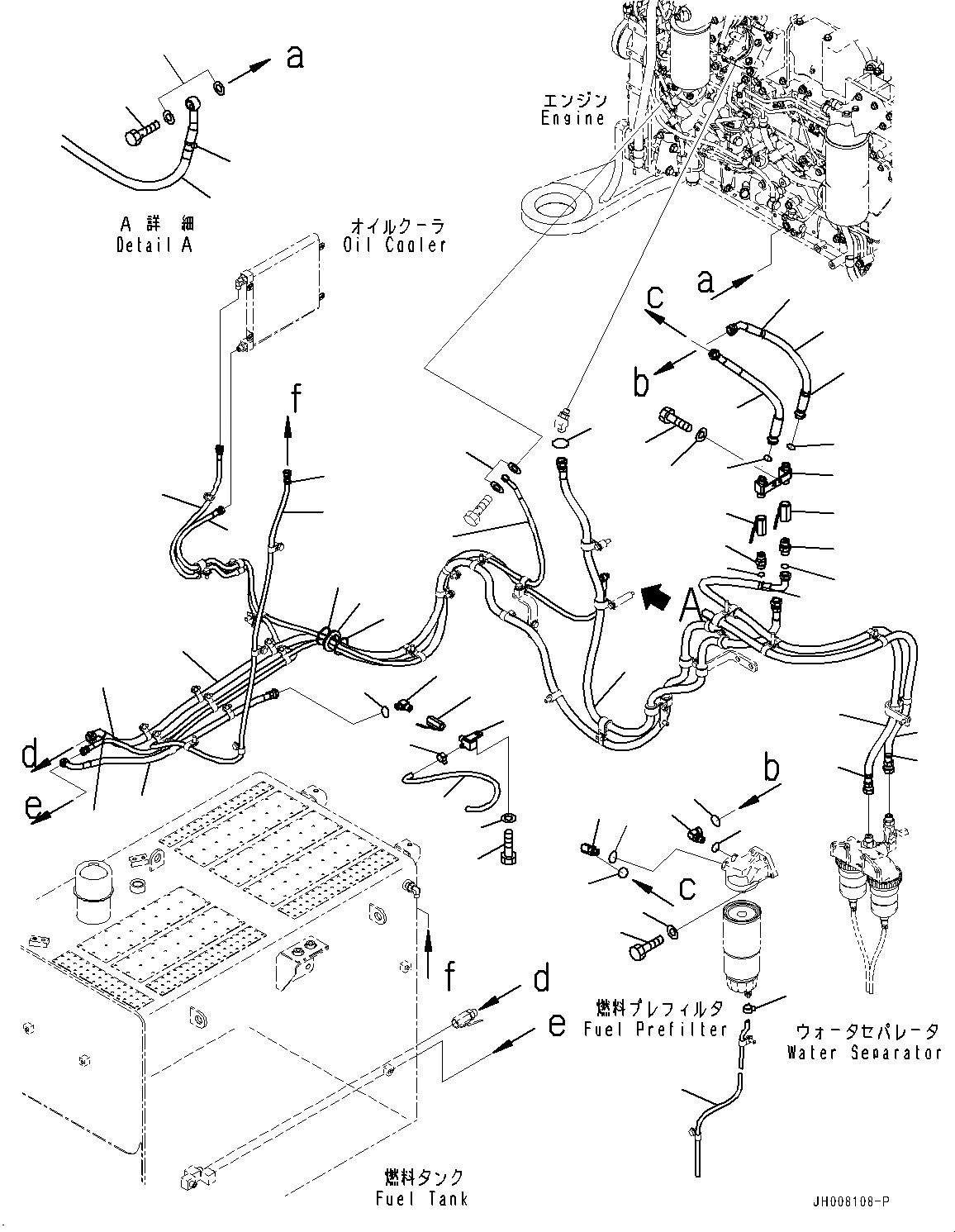

Запчасти Komatsu PC800-8R1 ТОПЛИВН. ПОДАЮЩ. ТРУБЫ, ФИЛЬТР. ТРУБЫ (№7-) ТОПЛИВН. ПОДАЮЩ. ТРУБЫ, EXTRA BAD ТОПЛИВН. И ПЛОХ. ТОПЛИВО СПЕЦ-ЯIFICATION, ВОДН.+DUST, ДОПОЛН. ФИЛЬТР.

1

01010-81040

Bolt

2

01643-31032

Washer

3

02782-10516

Elbow

4

07002-12034

O-ring

5

02896-11015

O-ring

6

02764-00505

Hose

7

209-04-42270

Hose

8

20Y-62-22790

Band, Red

9

209-04-41670

Bracket

10

01010-81225

Bolt

11

01643-31232

Washer

12

02896-11015

O-ring

13

07700-40661

Valve, Fuel Drain

14

209-04-42150

Union

15

02896-11015

O-ring

16

07287-00815

Hose

17

07285-00125

Clip

18

209-04-45610

Hose Assembly

19

20Y-62-22820

Band, Blue

20

209-04-41621

Hose Assembly

21

20Y-62-22790

Band, Red

22

209-04-42170

Hose Assembly

23

02896-11015

O-ring

24

209-04-41661

Hose Assembly

25

07206-31014

Bolt, Joint

26

07005-01412

Seal, Washer

27

209-04-45151

Hose

28

20Y-62-22810

Band, Yellow

29

209-04-45240

Hose Assembly

30

21T-06-73320

Grommet

31

08034-20536

Band

32

07700-40460

Valve, Fuel Drain

33

209-04-41320

Elbow

34

01010-81230

Bolt

35

01643-31232

Washer

36

21N-64-36520

Elbow

37

02896-11012

O-ring

38

02763-00410

Hose, Face Seal Type

39

07270-61210

Tube

40

07285-00125

Clip
