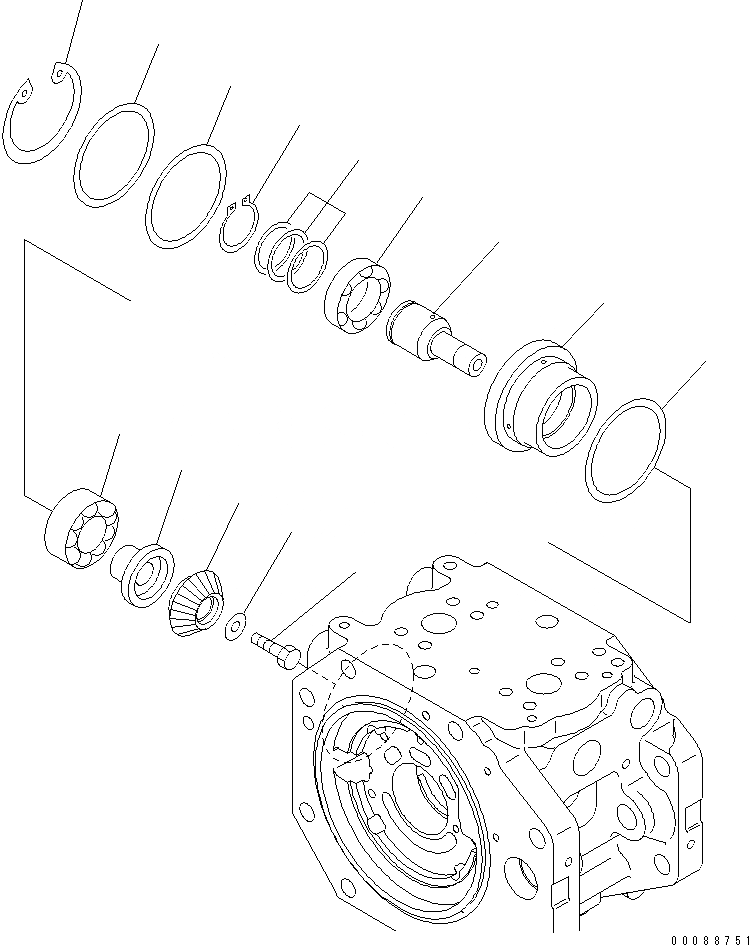

Запчасти Komatsu PC800-8R ОСНОВН. НАСОС (9/)(№-9) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$3

708-2K-00112

PUMP ASS'Y

|$4

708-2K-00111

PUMP ASS'Y

|$5

708-2K-00110

PUMP ASS'Y

|$7

708-2K-01114

PUMP SUB ASS'Y

|$8

708-2K-01113

PUMP SUB ASS'Y

|$9

708-2K-01112

PUMP SUB ASS'Y

|$10

708-2K-03320

CASE SUB ASS'Y

1

708-2K-12730

CASE

2

708-2K-12740

COLLAR

3

708-2K-12750

SHAFT

4

708-2K-12810

BEARING

5

708-2K-12820

BEARING

6

708-2K-05060

SPACER KIT

6

708-7L-12220

SPACER, 1.5MM

6

708-7L-12230

SPACER, 1.6MM

6

708-7L-12240

SPACER, 1.7MM

6

708-7L-12250

SPACER, 1.8MM

6

708-7L-12260

SPACER, 1.9MM

6

708-7L-12270

SPACER, 2.0MM

6

708-2K-12910

SPACER, 3.15MM

6

708-2K-12920

SPACER, 3.65MM

6

708-2K-12930

SPACER, 4.15MM

7

04064-05020

RING

8

708-2K-12690

PINION

9

01010-E1225

BOLT

10

708-2K-11820

WASHER

11

708-2K-05040

SHIM KIT

11

708-2K-12830

SHIM, 0.1MM

11

708-2K-12840

SHIM, 0.2MM

11

708-2K-12860

SHIM, 0.5MM

11

708-2K-12870

SHIM, 1.0MM

12

04065-01254

RING

13

708-2K-12850

SHIM, 0.3MM
