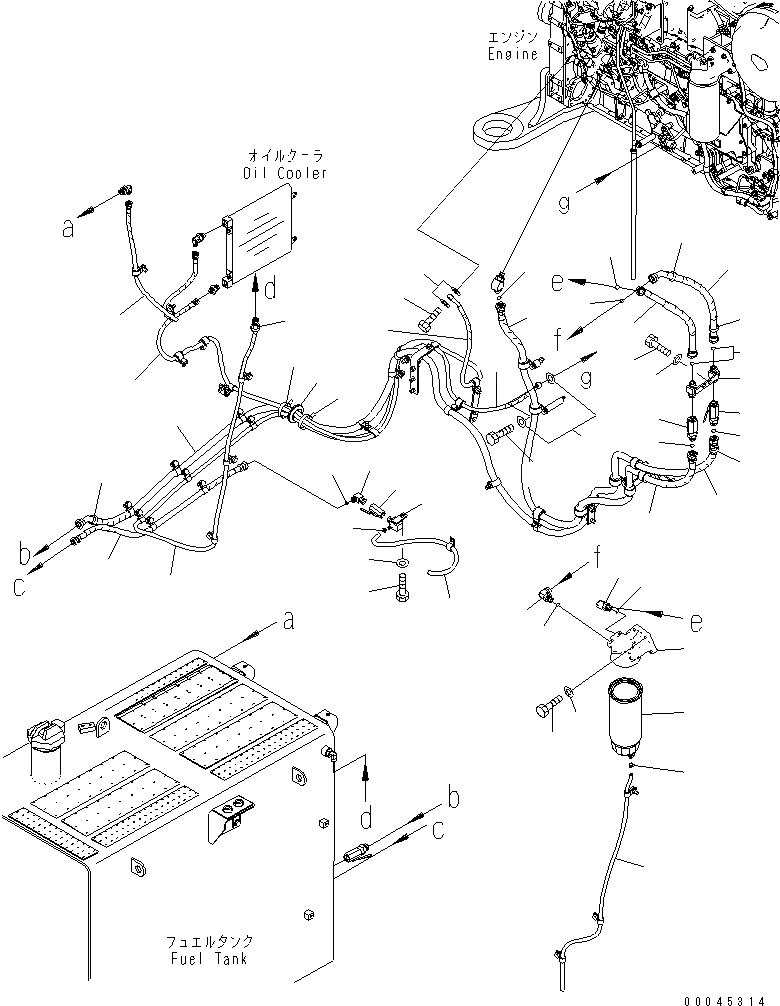

Запчасти Komatsu PC800-8K ТОПЛИВН. ЛИНИЯ (ФИЛЬТР. И ШЛАНГИ) D ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

1

6261-71-6430

HEAD

2

01010-81040

BOLT

3

01643-31032

WASHER

4

600-311-4500

CARTRIDGE, FUEL FILTER

|4

600-311-3400

CARTRIDGE, FUEL FILTER

5

02782-10516

ELBOW

6

07002-12034

O-RING

7

02896-11015

O-RING

8

02764-00505

HOSE

9

02764-005A5

HOSE

10

20Y-62-22790

BAND, RED

11

209-04-42141

BRACKET

12

01010-81225

BOLT

13

01643-31232

WASHER

14

02896-11015

O-RING

15

07700-40661

VALVE

16

209-04-42150

UNION

17

02896-11015

O-RING

18

07270-60815

TUBE

19

07285-00100

CLIP

20

02764-00547

HOSE

21

20Y-62-22790

BAND, RED

22

209-04-42170

HOSE ASSEMBLY

23

02896-11015

O-RING

24

209-04-42290

HOSE ASSEMBLY

25

07206-31014

BOLT

26

07005-01412

GASKET

27

209-04-42251

HOSE

28

20Y-62-22810

BAND, YELLOW

29

209-04-42242

HOSE ASSEMBLY

30

21T-06-73320

GROMMET

31

08034-20536

BAND

32

07700-40460

VALVE

33

209-04-41320

ELBOW

34

01010-81230

BOLT

35

01643-31232

WASHER

36

21N-64-36520

ELBOW

37

02896-11012

O-RING

38

02762-00409

HOSE

39

07270-61210

TUBE

40

07285-00125

CLIP
