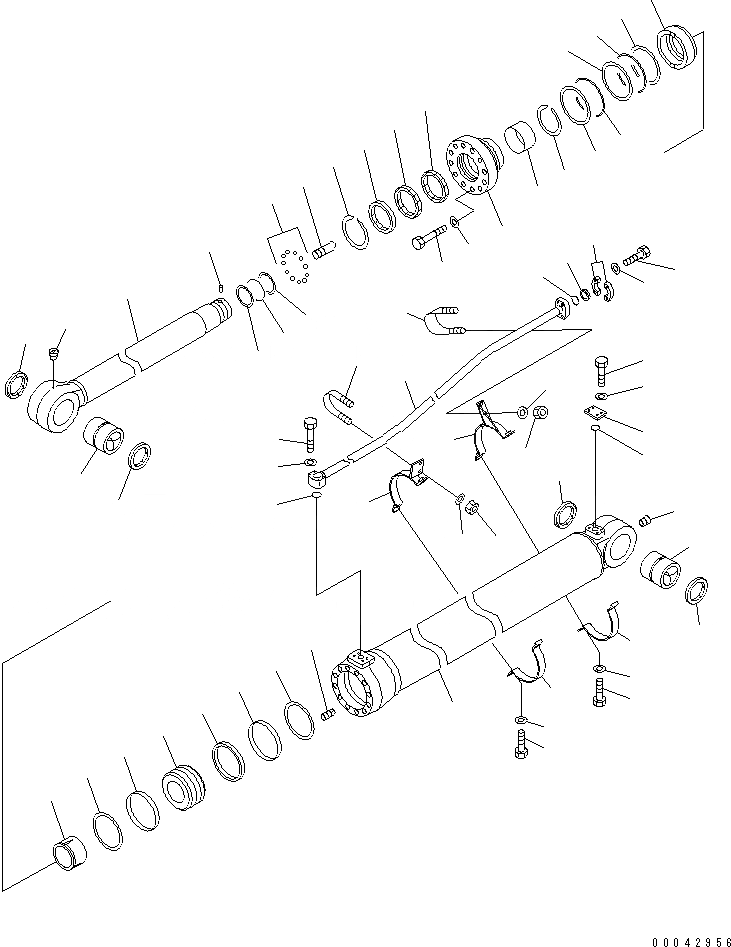

Запчасти Komatsu PC800-8K ЦИЛИНДР РУКОЯТИ(SE) (№K-K) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XP240

CYLINDER GROUP,L.H. (FINAL COATING)

G-2

707-01-XP250

CYLINDER GROUP,R.H. (FINAL COATING)

|1

707-01-0K240

CYLINDER ASSEMBLY

1

707-13-18980

CYLINDER

2

707-76-11130

BUSHING

3

07145-00110

SEAL,DUST (KIT)

4

07043-00108

PLUG

5

707-27-18930

HEAD,CYLINDER

6

707-51-12030

PACKING,ROD (KIT)

7

707-51-12650

RING,BUFFER (KIT)

8

707-52-90980

BUSHING

9

07179-13126

RING,SNAP

10

195-63-93170

SEAL,DUST (KIT)

11

07179-13136

RING,SNAP

12

07000-15175

O-RING (KIT)

13

707-35-91840

RING,BACK-UP (KIT)

14

07000-15175

O-RING (KIT)

15

707-35-91840

RING,BACK-UP (KIT)

16

707-71-32940

COLLAR

17

01011-82400

BOLT

18

707-88-75410

WASHER

19

707-58-12331

ROD,PISTON

20

707-76-11130

BUSHING

21

07145-00110

SEAL,DUST (KIT)

22

07043-00108

PLUG

23

707-36-18520

PISTON

24

07000-B5110

O-RING (KIT)

25

07001-05110

RING,BACK-UP (KIT)

26

707-44-18920

RING

27

707-39-18510

RING,WEAR (KIT)

28

707-44-18290

RING,PISTON (KIT)

29

707-71-91230

CAP

30

04260-00952

BALL

31

707-71-70330

PLUNGER

32

707-71-61330

PLUNGER

33

01310-01225

SCREW

34

707-86-13480

TUBE,L.H.

|34

707-86-13490

TUBE,R.H.

35

07000-13035

O-RING (KIT)

36

07372-21060

BOLT

37

01643-51032

WASHER

38

707-88-21880

BAND

39

707-88-28430

BRACKET

40

707-88-28410

BRACKET

41

07372-21240

BOLT

42

01643-51232

WASHER

43

07283-33442

CLIP

44

01597-01009

NUT

45

01643-31032

WASHER

46

07000-13038

O-RING

47

07378-11210

HEAD

48

07371-51260

FLANGE

49

01010-81245

BOLT

50

01643-31232

WASHER

51

07000-13032

O-RING (KIT)

52

707-88-84710

PLATE

53

01010-81025

BOLT

54

01643-51032

WASHER

|K

707-99-76150

SERVICE KIT
