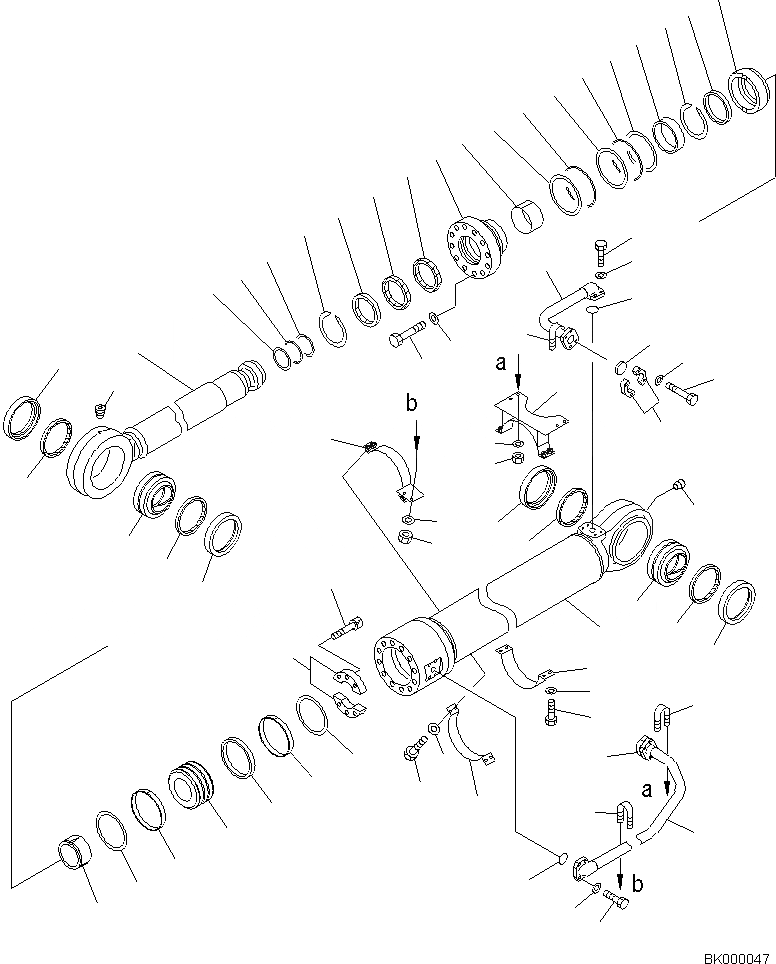

Запчасти Komatsu PC800-8E0 ЦИЛИНДР КОВША, 9MM РУКОЯТЬ, ВНУТР. ЧАСТИ, ЦИЛИНДР КОВША ЦИЛИНДР КОВША, 9MM РУКОЯТЬ

|$1

707-01-XZS00

Cylinder Assembly

1

707-13-22550

Cylinder

2

707-46-14010

Bushing

3

21T-72-15860

Bushing

4

21T-72-15870

Seal,Dust, (Kit : K10)

5

07043-00108

Plug

6

707-27-22720

Head,Cylinder

7

707-51-16030

Packing,Rod, (Kit : K10)

8

707-51-16650

Ring,Buffer, (Kit : K10)

9

707-52-91351

Bushing

10

707-56-16740

Seal, (Kit : K10)

11

07179-14180

Ring

12

07000-15220

O-Ring, (Kit : K10)

13

07001-05220

Ring,Back-Up, (Kit : K10)

14

07000-15220

O-Ring (Kit)

15

07001-05220

Ring,Back-Up, (Kit : K10)

16

707-71-31780

Collar

17

707-71-31430

Collar

18

707-71-11750

Ring

19

01011-83010

Bolt

20

01643-33080

Washer

21

707-58-16230

Rod,Piston

22

707-46-14010

Bushing

23

21T-72-15860

Bushing

24

21T-72-15870

Seal,Dust, (Kit : K10)

25

07043-00108

Plug

26

707-36-22300

Piston

27

07000-B5135

O-Ring, (Kit : K10)

28

707-35-91440

Ring,Back-Up, (Kit : K10)

29

707-44-22920

Ring

30

707-39-22800

Ring,Wear, (Kit : K10)

31

707-44-22250

Ring,Piston, (Kit : K10)

32

707-40-22870

Spacer

33

707-71-51760

Plunger

34

01252-61670

Bolt

35

707-75-16110

Ring, Snap

36

727-86-14340

Tube

37

209-63-73381

Tube

38

07000-13048

O-Ring, (Kit : K10)

39

01010-81450

Bolt

40

01643-31445

Washer

41

707-88-33050

Cap

42

07371-51260

Flange

43

01010-81245

Bolt

44

01643-31232

Washer

45

707-88-21070

Band

46

707-88-22090

Bracket

47

209-63-73391

Bracket

48

07372-21240

Bolt

49

01643-51232

Washer

50

07283-34346

Clip

51

01597-01009

Nut

52

01643-31032

Washer
