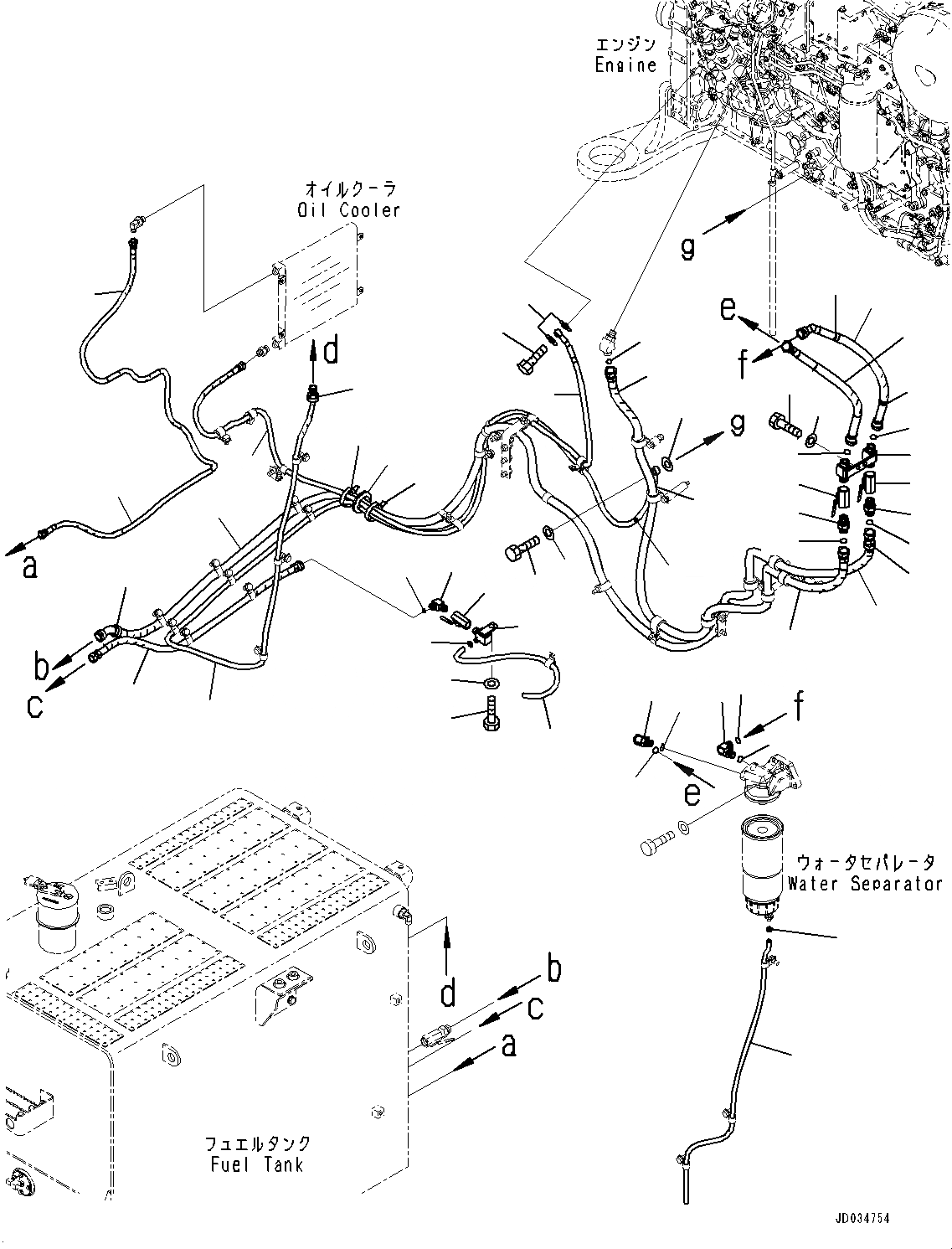

Запчасти Komatsu PC800-8E0 ТОПЛИВН. ПОДАЮЩ. ТРУБЫ, ФИЛЬТР. ТРУБЫ ТОПЛИВН. ПОДАЮЩ. ТРУБЫ

1

02782-10516

Elbow

2

07002-12034

O-Ring

3

02896-11015

O-Ring

4

02764-00505

Hose

5

02764-005A5

Hose, Face Seal Type

6

20Y-62-22790

Band, Red

7

209-04-41670

Bracket

8

01010-81225

Bolt

9

01643-31232

Washer

10

02896-11015

O-Ring

11

07700-40661

Valve, Fuel Drain

12

209-04-42150

Union

13

02896-11015

O-Ring

14

07287-00815

Hose

15

07285-00125

Clip

16

02764-00547

Hose, Face Seal Type

17

20Y-62-22790

Band, Red

18

209-04-42170

Hose Assembly

19

02896-11015

O-Ring

20

209-04-41661

Hose Assembly

21

07206-31014

Bolt, Joint

22

07005-01412

Gasket

23

209-04-42251

Hose

24

20Y-62-22810

Band, Yellow

25

209-04-45240

Hose Assembly

26

21T-06-73320

Grommet

27

08034-20536

Band

28

07700-40460

Valve, Fuel Drain

29

209-04-41320

Elbow

30

01010-81230

Bolt

31

01643-31232

Washer

32

21N-64-36520

Elbow

33

02896-11012

O-Ring

34

02763-00410

Hose, Face Seal Type

35

07270-61210

Tube

36

07285-00125

Clip
