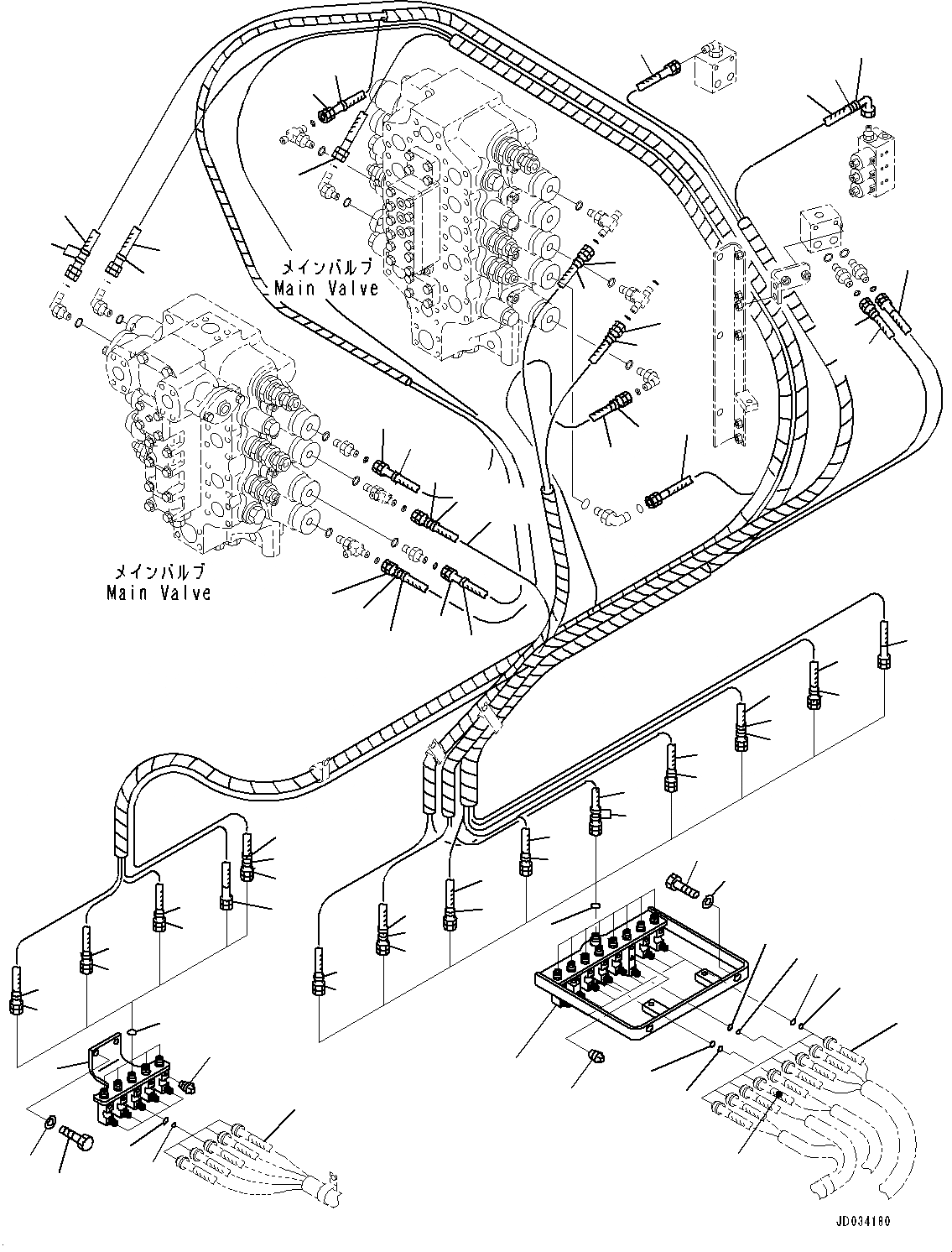

Запчасти Komatsu PC800-8E0 ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) ТРУБЫ СОЕД-Е, СОЕД-Е (№-) ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) ТРУБЫ СОЕД-Е, ДЛЯ ПРЯМАЯ ЛОПАТА CONFIGURATION

1

209-64-17560

Joint

2

201-60-11390

O-ring

3

20Y-62-19560

O-ring

4

201-60-11390

O-ring

5

20Y-62-19560

O-ring

6

201-60-11390

O-ring

7

20Y-62-19560

O-ring

8

02896-11009

O-ring

9

01010-81230

Bolt

10

175-54-34170

Washer

11

07042-30108

Plug

12

209-64-17580

Joint

13

201-60-11390

O-ring

14

20Y-62-19560

O-ring

15

02896-11009

O-ring

16

07042-30108

Plug

17

01010-81230

Bolt

18

01643-31232

Washer

19

02760-00314

Hose, Face Seal Type

20

02760-00313

Hose, Face Seal Type

21

20Y-62-22810

Band, Yellow

22

20Y-62-22860

Band, Brown

23

02760-00323

Hose, Face Seal Type

24

02760-00328

Hose, Face Seal Type

25

02760-00331

Hose, Face Seal Type

26

02760-00336

Hose, Face Seal Type

27

20Y-62-22790

Band, Red

28

20Y-62-22820

Band, Blue

29

20Y-62-22850

Band, Green

30

02760-00316

Hose, Face Seal Type

31

02760-00317

Hose

32

02760-00323

Hose, Face Seal Type

33

02760-00325

Hose

34

20Y-62-22820

Band, Blue

35

20Y-62-22830

Band, White

36

20Y-62-22840

Band, Black

37

20Y-62-22850

Band, Green

38

02760-00324

Hose, Face Seal Type

39

02760-00326

Hose, Face Seal Type

40

02760-00335

Hose, Face Seal Type

41

02760-00348

Hose, Face Seal Type

42

20Y-62-22790

Band, Red

43

20Y-62-22830

Band, White

44

20Y-62-22840

Band, Black

45

21M-62-14580

Hose

46

209-62-44310

Hose

47

209-62-45740

Hose
