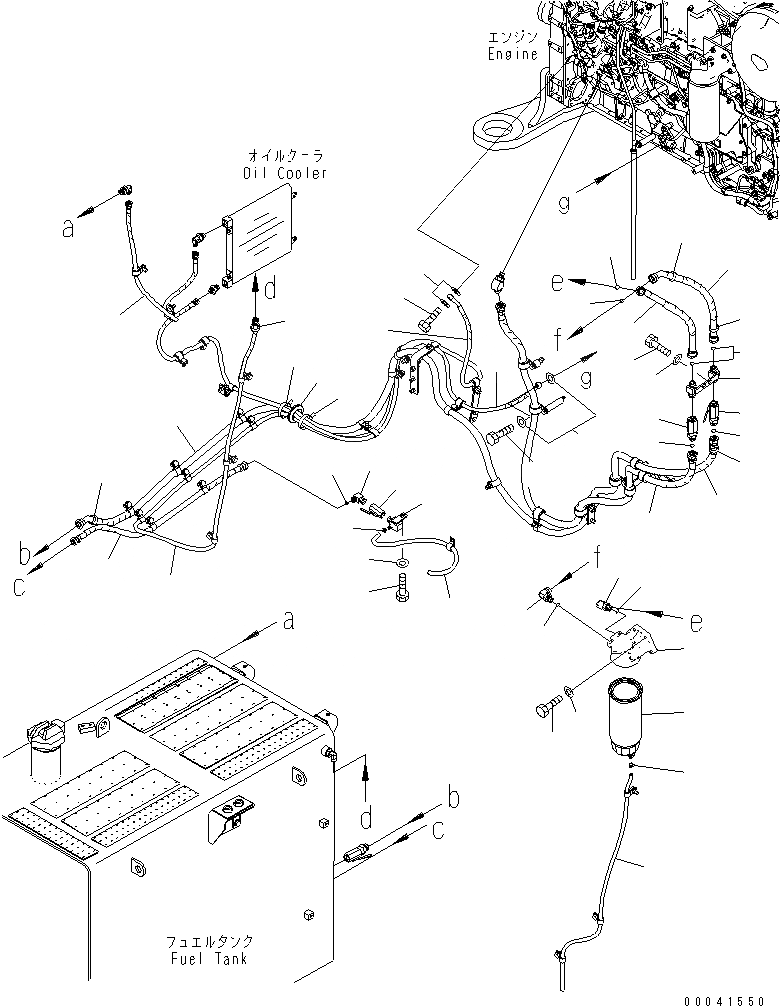

Запчасти Komatsu PC800-8 ТОПЛИВОПРОВОД. (ФИЛЬТР. И ШЛАНГИ)(№-) ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

1

6261-71-6430

HEAD

2

01010-81040

BOLT

3

01643-31032

WASHER

4

600-311-4500

FILTER ASS'Y

4

600-311-3400

FILTER ASS'Y

4

600-311-3200

SEPARATOR ASS'Y

5

02782-10516

ELBOW

6

07002-12034

O-RING

7

02896-11015

O-RING

8

02764-00505

HOSE

9

02764-005A5

HOSE

10

20Y-62-22790

BAND, RED

11

209-04-42141

BRACKET

12

01010-81225

BOLT

13

01643-31232

WASHER

14

02896-11015

O-RING

15

07700-40661

VALVE

16

209-04-42150

UNION

17

02896-11015

O-RING

18

07270-60815

TUBE

19

07285-00125

CLIP

20

02764-00547

HOSE

21

20Y-62-22790

BAND, RED

22

209-04-42170

HOSE ASS'Y

23

209-04-42290

HOSE ASS'Y

24

07206-31014

BOLT

25

07005-01412

SEAL, WASHER

26

209-04-42251

HOSE, 4200MM

27

20Y-62-22810

BAND, YELLOW

28

209-04-42241

HOSE ASS'Y

29

08037-05016

GROMMET

30

08034-20536

BAND

31

07700-40460

VALVE

32

209-04-41320

ELBOW

33

01010-81230

BOLT

34

01643-31232

WASHER

35

21N-64-36520

ELBOW

36

02896-11012

O-RING

37

02762-00409

HOSE

38

07270-61210

TUBE

39

07285-00125

CLIP
