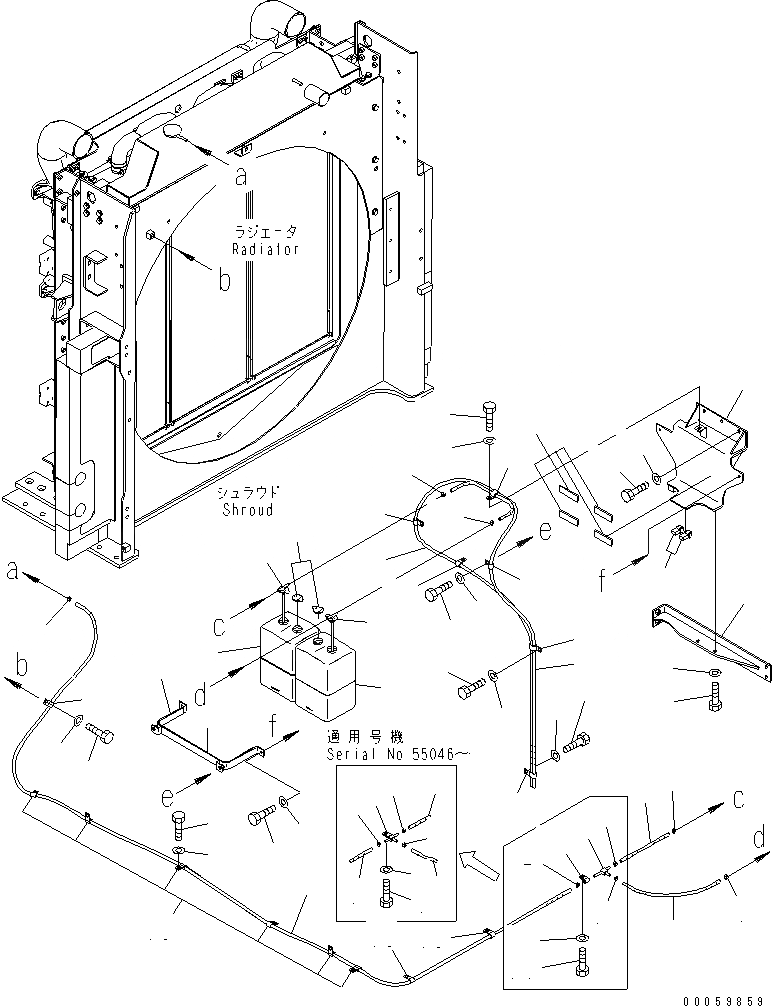

Запчасти Komatsu PC800-8 ОХЛАЖД-Е (SUB-БАК)(№-) СИСТЕМА ОХЛАЖДЕНИЯ

1

209-03-41821

HOSE

2

07285-00110

CLIP

3

198-03-79210

JOINT

3

21N-03-32210

JOINT

4

01010-81230

BOLT

5

01643-31232

WASHER

6

209-03-77430

HOSE, 450MM

7

07285-00110

CLIP

8

209-03-77440

HOSE, 300MM

9

07285-00110

CLIP

10

04434-51212

CLIP

11

01010-81220

BOLT

12

01643-31232

WASHER

13

04434-50812

CLIP

14

01010-81220

BOLT

15

01643-31232

WASHER

16

21N-03-31491

TANK

16

21N-03-31490

TANK

17

21N-03-32360

CAP ASS'Y

18

21N-03-32351

CAP ASS'Y

18

21N-03-32350

CAP ASS'Y

|$34

ND071370-0190

SWITCH

19

08055-00282

CONNECTOR

20

203-03-41260

HOSE

21

07285-00110

CLIP

22

209-03-77420

HOSE, 2200MM

23

07285-00110

CLIP

24

04434-51212

CLIP

25

01010-81220

BOLT

25

01010-81220

BOLT

26

01643-31232

WASHER

26

01643-31232

WASHER

27

04435-51212

CLIP

28

01010-81220

BOLT

29

01643-31232

WASHER

30

209-03-77340

BAND

31

01010-80820

BOLT

32

01643-30823

WASHER

33

209-03-77352

BRACKET

34

205-03-71440

SHEET

35

01010-81230

BOLT

36

01643-31232

WASHER

37

209-03-41991

BRACKET

38

01010-81230

BOLT

39

01643-31232

WASHER
