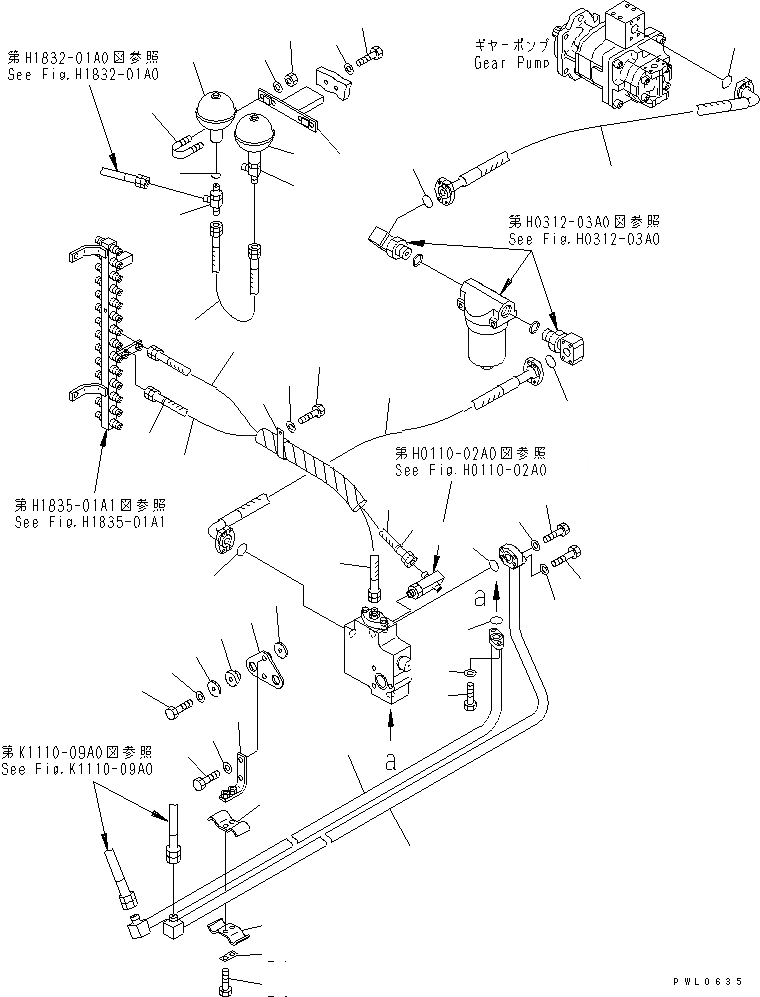

Запчасти Komatsu PC800-6 ЛИНИЯ НАСОСА PPC(№-7) ГИДРАВЛИКА

1

07298-01010

HOSE

2

07000-03032

O-RING

3

07298-01007

HOSE

4

07000-03032

O-RING

5

20Y-60-11430

ACCUMULATOR

6

201-62-72320

HOSE, 300MM

7

209-62-57210

TEE

8

07002-02034

O-RING

9

07283-23450

CLIP

10

01599-01011

NUT

11

01643-31032

WASHER

12

209-62-77630

BRACKET

13

01010-81245

BOLT

14

01643-31232

WASHER

15

20Y-62-22850

BAND, GREEN

16

203-62-52250

HOSE, 1200MM

17

20Y-62-22910

HOSE, 1050MM

18

04435-51512

CLIP

19

01010-81225

BOLT

20

01643-31232

WASHER

21

209-62-77161

TUBE

22

07000-03030

O-RING

23

07372-21040

BOLT

24

07372-21050

BOLT

25

01643-51032

WASHER

26

20Y-62-13710

CLAMP

27

20Y-62-13450

PLATE

28

01010-81240

BOLT

29

209-62-77170

BRACKET

30

01010-81230

BOLT

31

01643-31232

WASHER

32

209-62-78670

PLATE

33

195-03-41380

CUSHION

34

178-60-12250

COLLAR

35

01010-81050

BOLT

36

01643-31032

WASHER

37

209-62-77150

TUBE

38

07000-03028

O-RING

39

07372-21030

BOLT

40

01643-51032

WASHER
