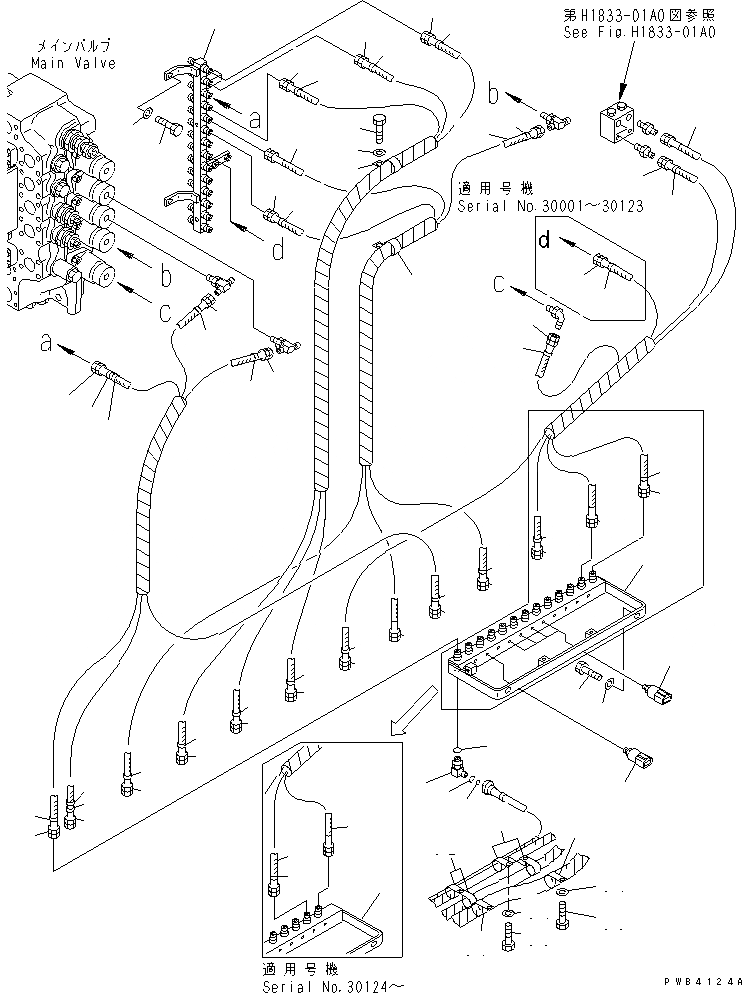

Запчасти Komatsu PC800-6 PPC ЛИНИЯ СОЕД-Е (СОЕД-Е)(№-7) ГИДРАВЛИКА

1

209-62-77512

JOINT

|1

209-62-77511

JOINT

2

01010-81230

BOLT

3

01643-31232

WASHER

4

209-62-79130

ELBOW

|4

209-62-79130

ELBOW

5

201-60-11390

O-RING

6

20Y-62-19560

O-RING

7

07002-01423

O-RING

|7

07002-01423

O-RING

8

20Y-62-22790

BAND¤ RED

9

20Y-62-22810

BAND¤ YELLOW

10

20Y-62-22830

BAND¤ WHITE

11

20Y-62-22860

BAND¤ BROWN

12

20Y-62-23510

HOSE¤ 1200MM

13

203-62-62790

HOSE¤ 1300MM

14

20Y-62-22790

BAND¤ RED

15

20Y-62-22840

BAND¤ BLACK

16

207-62-62880

HOSE¤ 1600MM

17

20Y-62-22820

BAND¤ BLUE

18

20Y-62-22830

BAND¤ WHITE

19

20Y-62-22850

BAND¤ GREEN

20

207-62-62880

HOSE¤ 1600MM

21

20Y-62-22790

BAND¤ RED

22

20Y-62-22820

BAND¤ BLUE

23

20Y-62-22850

BAND¤ GREEN

24

20Y-62-22910

HOSE¤ 1050MM

25

20Y-62-23510

HOSE¤ 1200MM

26

201-62-72370

HOSE

27

209-62-77682

JOINT

|27

209-62-77681

JOINT

28

01010-81230

BOLT

29

01643-31232

WASHER

30

113-899-7950

CLIP

31

20Y-62-15951

CLIP

32

113-899-7950

CLIP

33

01010-81230

BOLT

34

01643-31232

WASHER

35

206-06-61130

SWITCH

|35

20Y-06-21710

SWITCH

36

20Y-06-21710

SWITCH,(FOR TRAVEL)
