Запчасти Komatsu PC80-3 МОТОР ХОДА (/)(№8-) ГИДРАВЛИКА

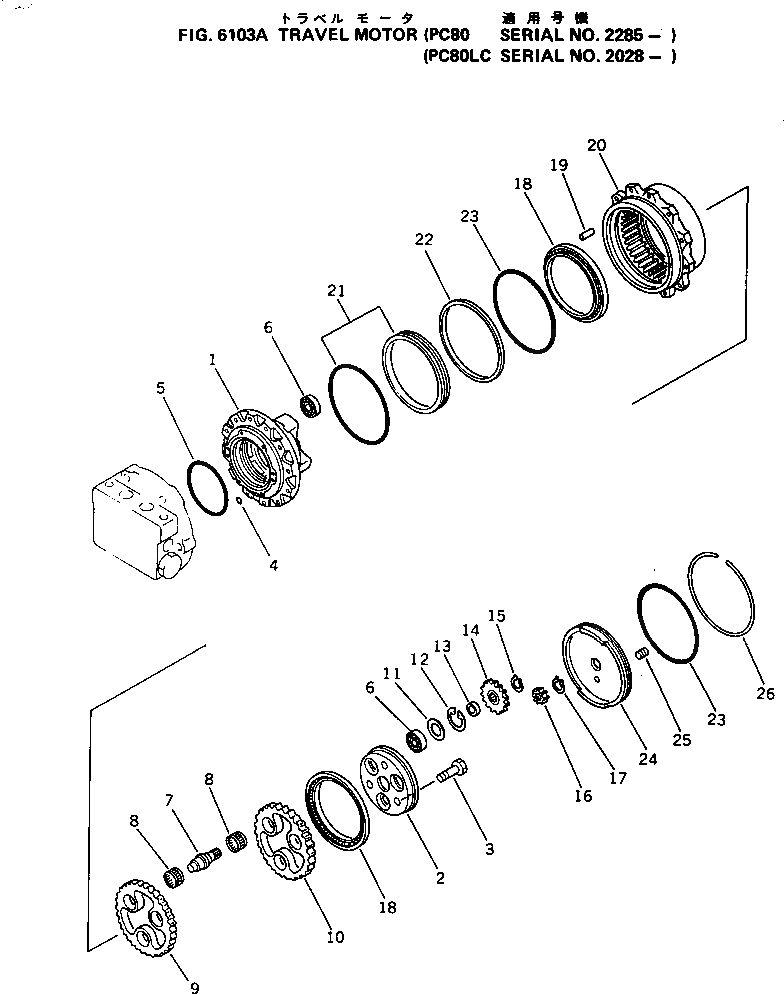

Схема запчастей Komatsu PC80-3 - МОТОР ХОДА (/)(№8-) ГИДРАВЛИКА

Артикул

Название

Примечание

Количество

|$0

20X-60-21101

TRAVEL MOTOR ASS'Y

|$$2

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6101AAND 6103A.

|$2

SPINDLE ASS'Y

|$3

SPINDLE ASS'Y

1

SPINDLE

2

FLANGE,HOLD

3

TZ100A1019-00

BOLT,REAMER

4

07000-11106

O-RING (KIT)

5

TZJW1516-G41-9

O-RING (KIT)

|$9

RV GEAR ASS'Y

6

SPINDLE

7

SHAFT,CRANK

8

BEARING,NEEDLE

|$13

RV GEAR SUB ASS'Y

9

GEAR

10

GEAR

11

PIECE ASS'Y,DISTANCE

12

04065-05220

RING,SNAP

13

TZ100A1014-00

PIECE,DISTANCE

14

TZ112A1107-00

GEAR

15

04064-02515

RING,SNAP

16

TZ112A1006-01

GEAR,INPUT

17

04064-02515

RING,SNAP

18

BEARING

19

TZ100A1017-00

PIN

20

HUB

21

TZES100-220-A

SEAL,FLOATING (KIT)

22

TZ100A1010-01

PIECE,DISTANCE

23

07000-15260

O-RING (KIT)

24

TZ100A1008-00

COVER

25

TZGM1-2

PLUG

26

TZ100A1018-00

RING

|$$33

SERVICE KIT

K1

TZ112A9000-00

SEAL KIT (KIT)

|$34

07000-15260

O-RING (KIT)

|$35

TZJW1516-G41-9

O-RING (KIT)

|$36

TZES100-220-A

SEAL (KIT)

|$37

07000-11106

O-RING (KIT)

|$38

TZTCN-32-52-11

SEAL (KIT)

|$39

07000-11009

O-RING (KIT)

|$40

07000-15145

O-RING (KIT)

|$41

07000-13032

O-RING (KIT)

|$42

07000-12020

O-RING (KIT)

|$43

07002-02034

O-RING (KIT)

|$44

07000-15170

O-RING (KIT)

|$45

TZSUN-2BG170

RING (KIT)

|$46

TZ231F2023-00

RING (KIT)

Выбрано товаров: 47
