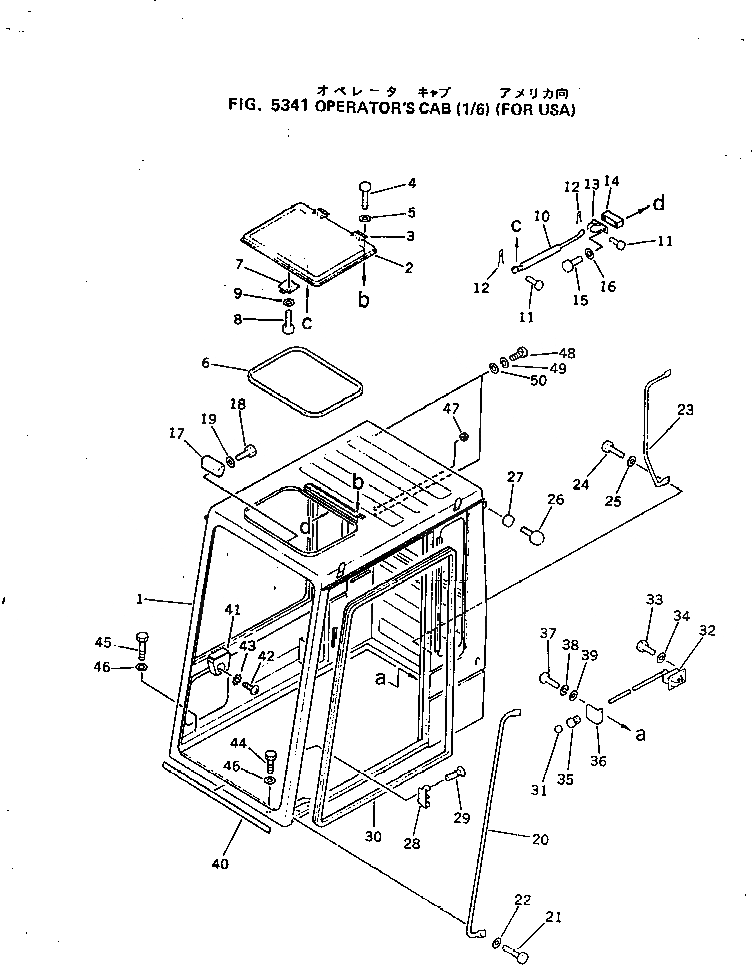

Запчасти Komatsu PC80-3 КАБИНА (/) (ДЛЯ U.S.A) ОСНОВНАЯ РАМА¤ ЧАСТИ КОРПУСА И КАБИНА

|$0

201-54-00510

OPERATOR'S CAB ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5341 TO 5351.

1

205-54-71114

CAB

2

205-54-71142

COVER

3

205-54-72680

HINGE (WELDED)

4

01010-50612

BOLT

5

01643-30623

WASHER

6

205-54-71551

SEAL

7

205-54-72470

LOCK ASS'Y

8

01010-50616

BOLT

9

01643-30623

WASHER

10

205-54-63650

GAS SPRING ASS'Y

11

04205-10825

PIN

12

04050-12012

PIN,COTTER

13

205-54-72511

BRACKET

14

205-54-72880

SEAT

15

01010-50635

BOLT

16

01643-30623

WASHER

17

205-54-72520

BRACKET

18

01010-50616

BOLT

19

01643-30623

WASHER

20

205-54-72531

GRIP

21

01010-51025

BOLT

22

01643-31032

WASHER

23

205-54-72541

GRIP

24

01010-51025

BOLT

25

01643-31032

WASHER

26

09453-00002

STOPPER

27

01580-11210

NUT

28

205-54-71731

STRIKER

29

01224-40820

SCREW

30

205-54-71560

TRIM

31

205-54-72840

KNOB

32

205-54-72810

LOCK ASS'Y

33

01010-50620

BOLT

34

01643-30623

WASHER

35

205-54-72830

GROMMET

36

205-54-72820

BRACKET

37

01220-40620

SCREW

38

01602-20619

WASHER,SPRING

39

01641-20608

WASHER

40

205-54-76480

PLATE

41

201-54-23220

ASHTRAY

42

01370-00410

SCREW

43

01611-04045

WASHER

44

01010-51250

BOLT

45

01010-51270

BOLT

46

01643-31232

WASHER

47

09415-00706

CAP

48

01220-40410

SCREW

49

01601-20410

WASHER,SPRING

50

01641-20405

WASHER
