Запчасти Komatsu PC80-3 ГУСЕНИЦЫ ХОДОВАЯ

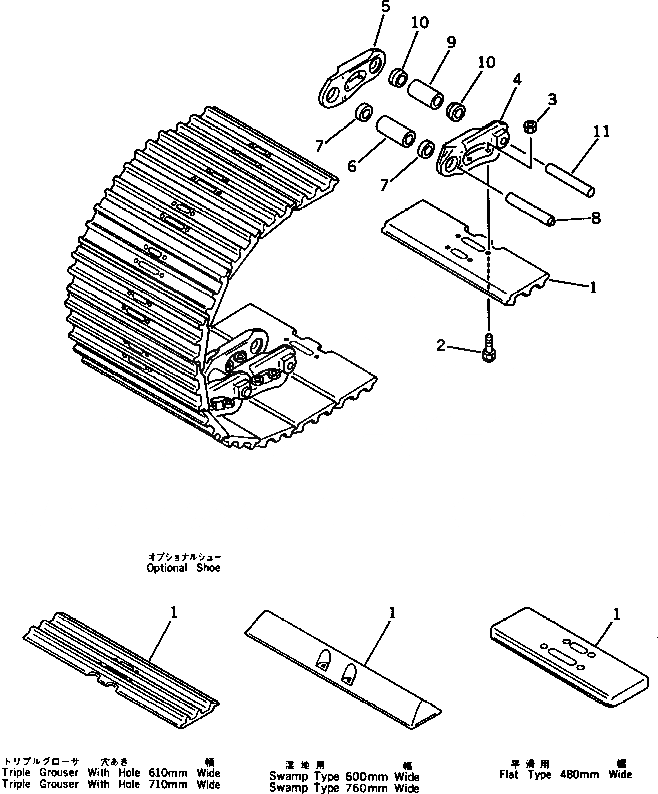

Схема запчастей Komatsu PC80-3 - ГУСЕНИЦЫ ХОДОВАЯ

Артикул

Название

Примечание

Количество

|$$1

TRIPLE 480MM,WITH HOLE

|$1

20X-32-01002

TRACK SHOE ASS'Y

|$2

20X-32-01001

TRACK SHOE ASS'Y

1

202-32-11112

SHOE,TRACK

2

203-32-21210

BOLT, SHOE (KIT)

3

01803-01420

NUT,SHOE (KIT)

|$6

20X-32-00012

TRACK LINK ASS'Y

|$7

20X-32-00011

TRACK LINK ASS'Y

4

110-32-11322

LINK,TRACK, L.H.

5

110-32-11332

LINK,TRACK, R.H.

6

203-32-11342

BUSHING,REGULAR

6

203-32-11341

BUSHING,REGULAR

7

203-32-11360

SEAL,DUST, REGULAR, W-TYPE

8

203-32-11351

PIN,REGULAR

9

203-32-11372

BUSHING,MASTER

9

203-32-11371

BUSHING,MASTER

10

203-32-11380

SEAL,DUST, MASTER, W-TYPE

11

203-32-11391

PIN,MASTER

|$$19

TRIPLE 610MM,WITH HOLE

1

20X-32-01012

TRACK SHOE ASS'Y

1

20X-32-01011

TRACK SHOE ASS'Y

1

202-32-11280

SHOE,TRACK

2

203-32-21210

BOLT, SHOE

3

01803-01420

NUT,SHOE

4

20X-32-00012

TRACK LINK ASS'Y

4

20X-32-00011

TRACK LINK ASS'Y

|$$27

TRIPLE 710MM,WITH HOLE

1

20X-32-01022

TRACK SHOE ASS'Y

1

20X-32-01021

TRACK SHOE ASS'Y

1

202-32-11292

SHOE,TRACK

2

203-32-21210

BOLT, SHOE

3

01803-01420

NUT,SHOE

4

20X-32-00012

TRACK LINK ASS'Y

4

20X-32-00011

TRACK LINK ASS'Y

|$$35

FLAT 480MM

1

20X-32-01122

TRACK SHOE ASS'Y

1

20X-32-01121

TRACK SHOE ASS'Y

1

202-32-11311

SHOE,TRACK

2

203-32-21210

BOLT, SHOE

3

01803-01420

NUT,SHOE

4

20X-32-00012

TRACK LINK ASS'Y

4

20X-32-00011

TRACK LINK ASS'Y

|$$43

SERVICE KIT

1

203-32-05010

SHOE BOLT AND NUT K.

2

203-32-21210

BOLT, SHOE

3

01803-01420

NUT,SHOE

|$$47

SWAMP 600MM

1

20X-32-01102

TRACK SHOE ASS'Y

1

20X-32-01101

TRACK SHOE ASS'Y

1

11G-32-21120

SHOE,TRACK

2

203-32-21220

BOLT, SHOE

3

01803-01420

NUT,SHOE

4

20X-32-00012

TRACK LINK ASS'Y

4

20X-32-00011

TRACK LINK ASS'Y

|$$55

SWAMP 760MM

1

20X-32-01112

TRACK SHOE ASS'Y

1

20X-32-01111

TRACK SHOE ASS'Y

1

202-32-11270

SHOE,TRACK

2

203-32-21220

BOLT, SHOE

3

01803-01420

NUT,SHOE

4

20X-32-00012

TRACK LINK ASS'Y

4

20X-32-00011

TRACK LINK ASS'Y

|$$63

SERVICE KIT

1

203-32-05020

SHOE BOLT AND NUT K.,(FOR SWAMP)

2

203-32-21220

BOLT, SHOE

3

01803-01420

NUT,SHOE

|$$67

OVERSIZE PARTS

|$$68

0.10MM OVERSIZE

6

202-98-09112

BUSHING,REGULAR

6

202-98-09111

BUSHING,REGULAR

8

202-98-09011

PIN,REGULAR

9

202-98-09142

BUSHING,MASTER

9

202-98-09141

BUSHING,MASTER

11

202-98-09041

PIN,MASTER

|$$75

0.18MM OVERSIZE

6

202-98-09132

BUSHING,REGULAR

6

202-98-09131

BUSHING,REGULAR

8

202-98-09031

PIN,REGULAR

9

202-98-09162

BUSHING,MASTER

9

202-98-09161

BUSHING,MASTER

11

202-98-09061

PIN,MASTER

Выбрано товаров: 81
