Запчасти Komatsu PC80-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) ГИДРАВЛИКА

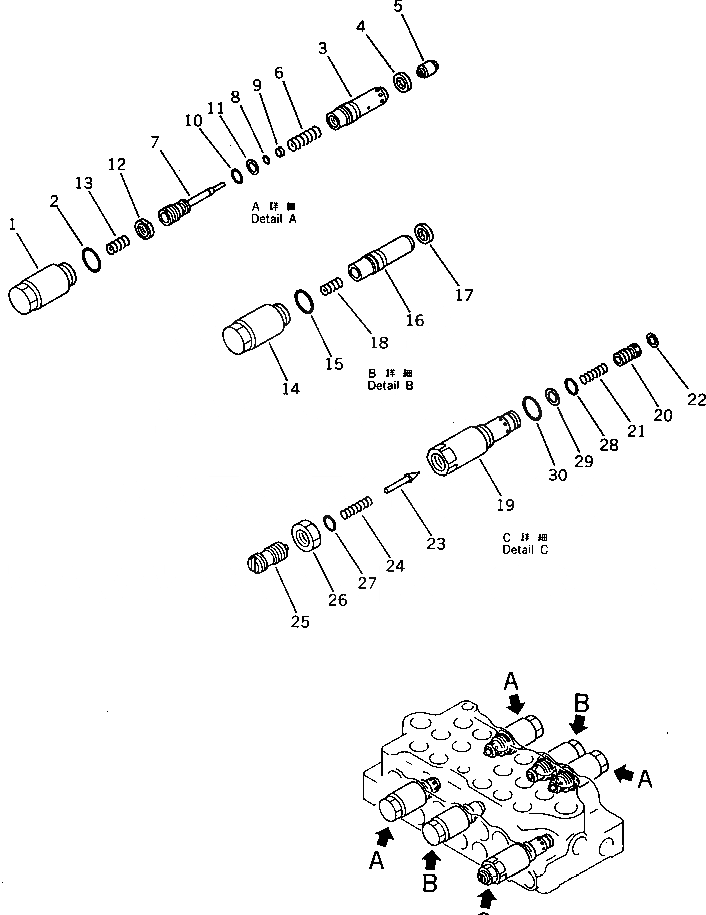

Схема запчастей Komatsu PC80-3 - УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) ГИДРАВЛИКА

Артикул

Название

Примечание

Количество

|1

709-26-11102

VALVE ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6501 TO 6505.

|1

709-20-61101

VALVE ASS'Y,SUCTION AND SAFETY (345KG/CM2)

|1

709-20-61300

VALVE ASS'Y,SUCTION AND SAFETY (270KG/CM2)

1

SLEEVE

2

709-25-11390

O-RING

3

VALVE

4

SEAL

5

POPPET

6

SPRING

7

PISTON

8

O-RING

9

SEAL

10

O-RING

11

RING,BACK-UP

12

NUT

13

SPRING

|14

709-20-81100

VALVE ASS'Y

14

SLEEVE

15

709-25-11390

O-RING

16

VALVE

17

SEAL

18

SPRING

|19

709-20-51103

VALVE ASS'Y,(300KG/CM2)

19

SLEEVE

20

VALVE

21

709-20-51270

SPRING

22

700-20-51240

RING

23

700-80-61190

POPPET

24

709-20-51231

SPRING

25

700-20-51340

SCREW

26

01583-11408

NUT

27

07000-02011

O-RING

28

700-22-11410

O-RING

29

700-80-64220

RING,BACK-UP

30

07002-02434

O-RING

Выбрано товаров: 36
