Запчасти Komatsu PC80-3 МОТОР ХОДА (/)(№8-) ГИДРАВЛИКА

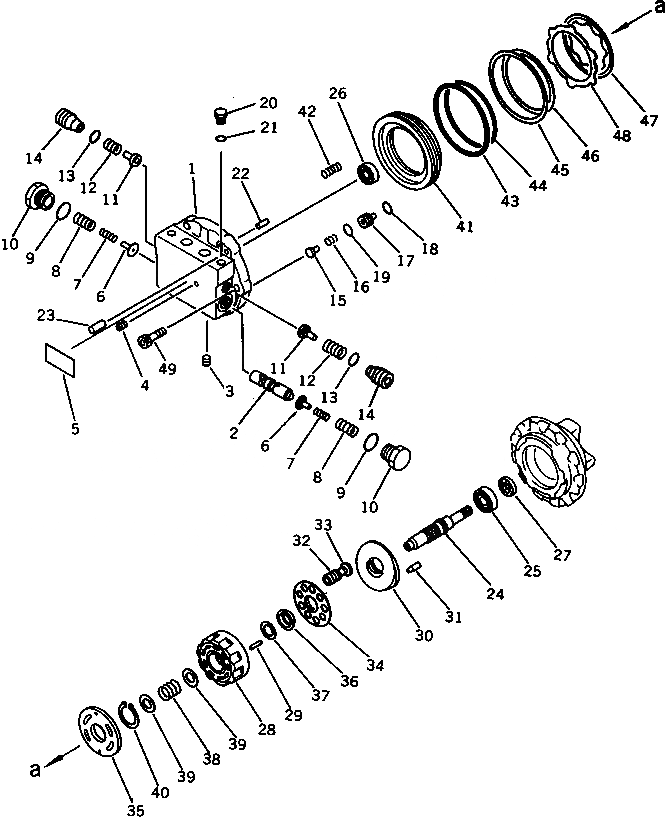

Схема запчастей Komatsu PC80-3 - МОТОР ХОДА (/)(№8-) ГИДРАВЛИКА

Артикул

Название

Примечание

Количество

|1

20X-60-21101

TRAVEL MOTOR ASS'Y

|$$2

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6101AAND 6103A.

|1

TZ110A210100-E

FLANGE SPOOL ASS'Y

1

FLANGE

2

SPOOL

3

TZMB700-050

PLUG

4

TZGM1-8

PLUG

5

TZ850A0006-00

PLATE¤ NAME

6

TZ200A2052-00

STOPPER

7

TZ200A2056-00

SPRING

8

TZ100A2055-00

SPRING

9

07000-13032

O-RING (KIT)

10

TZ100A2051-00

PLUG

11

TZ100A2054-01

VALVE

12

TZ100A2057-01

SPRING

13

07000-12020

O-RING (KIT)

14

TZ100A2053-01

PLUG

15

TZ430F2019-00

VALVE

16

TZ100A2020-00

SPRING

17

TZ100A2018-00

SEAT,VALVE

18

TZ100A2022-00

RING

19

07000-11009

O-RING (KIT)

20

TZ100A2021-00

PLUG

21

07002-02034

O-RING (KIT)

22

TZJB1354-5-12

PIN

23

TZJB1354-10-28

PIN

24

TZ110A2002-00

SHAFT

25

TZJB1521-62-32

BEARING

26

06000-06005

BEARING

27

TZTCN-32-52-11

SEAL,OIL (KIT)

28

BLOCK,CYLINDER

29

TZJB15063-16-8

ROLLER,NEEDLE

30

TZ100A200300-C

PLATE,SWASH

31

TZ100A2017-00

PIN

|32

PISTON SHOE ASS'Y

32

SHOE ASS'Y

33

SHOE,PISTON

34

PLATE,RETAINER

35

PLATE

36

BALL,THRUST

37

WASHER KIT

38

TZ100A2014-00

SPRING

39

TZ150A2010-00

WASHER

40

TZIRTW-55

RING,SNAP

41

TZ231F2012-00

PISTON

42

TZ100A2013-00

SPRING

43

07000-15170

O-RING (KIT)

44

07000-15145

O-RING (KIT)

45

TZSUN-2BG170

RING,BACK-UP (KIT)

46

TZ231F2023-00

RING,BACK-UP (KIT)

47

TZ100A2015-00

DISC

48

TA100A2016-00

PLATE

49

01252-31440

BOLT

Выбрано товаров: 53
