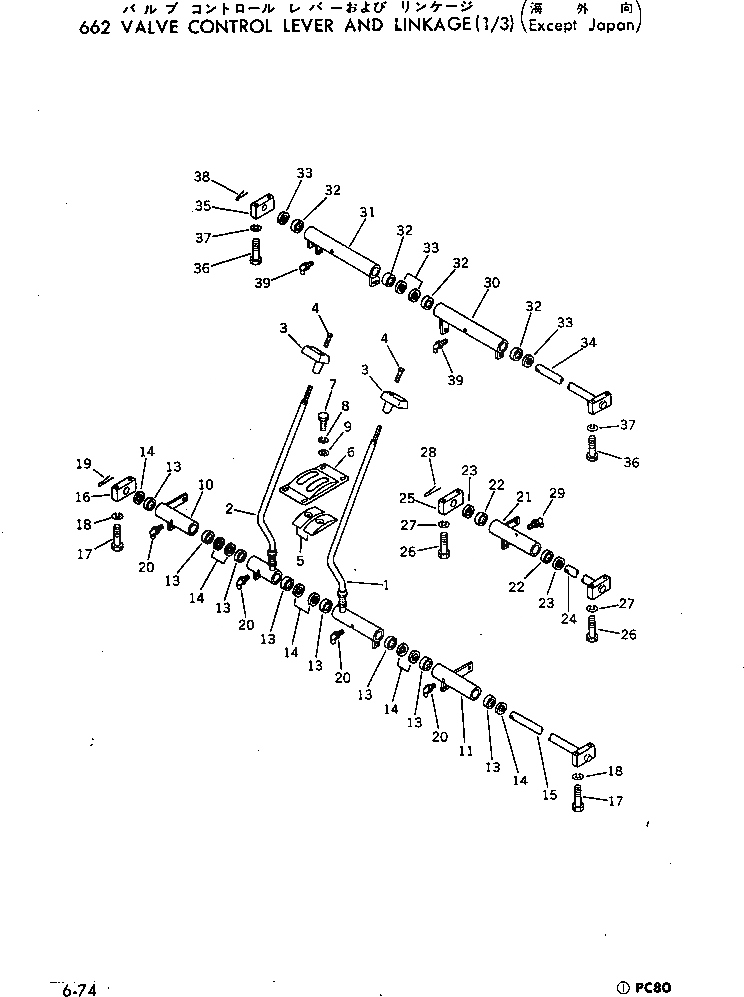

Запчасти Komatsu PC80-1 КЛАПАН РЫЧАГ УПРАВЛ-Я И МЕХАНИЗМ (/) (КРОМЕ ЯПОН.) ГИДРАВЛИКА

1

20X-43-11111

LEVER,L.H., PROPEL

2

20X-43-11121

LEVER,R.H., PROPEL

3

20X-43-11270

KNOB

4

01225-40625

SCREW

5

20X-43-11240

COVER

6

20X-43-11250

COVER

7

01010-30620

BOLT

8

01602-00619

WASHER,SPRING

9

01643-30623

WASHER

10

20X-43-11280

LEVER

11

20X-43-11411

LEVER

13

06120-02520

BEARING

14

06122-02504

SEAL,BEARING

15

20X-43-11141

SHAFT

16

201-43-21290

BRACKET

17

01010-31060

BOLT

18

01602-01030

WASHER,SPRING

19

04050-03045

PIN,COTTER

20

07020-00900

FITTING,GREASE

21

20X-43-11421

LEVER

22

06120-02520

BEARING

23

06122-02504

SEAL,BEARING

24

20X-43-11330

SHAFT

25

201-43-21290

BRACKET

26

01010-31060

BOLT

27

01602-01030

WASHER,SPRING

28

04050-03045

PIN,COTTER

29

07020-00900

FITTING,GREASE

30

20X-43-11440

LEVER

31

20X-43-11171

LEVER

32

06120-02520

BEARING

33

06122-02504

SEAL,BEARING

34

20X-43-11320

SHAFT

35

201-43-21290

BRACKET

36

01010-31060

BOLT

37

01602-01030

WASHER,SPRING

38

04050-03045

PIN,COTTER

39

07020-00900

FITTING,GREASE
