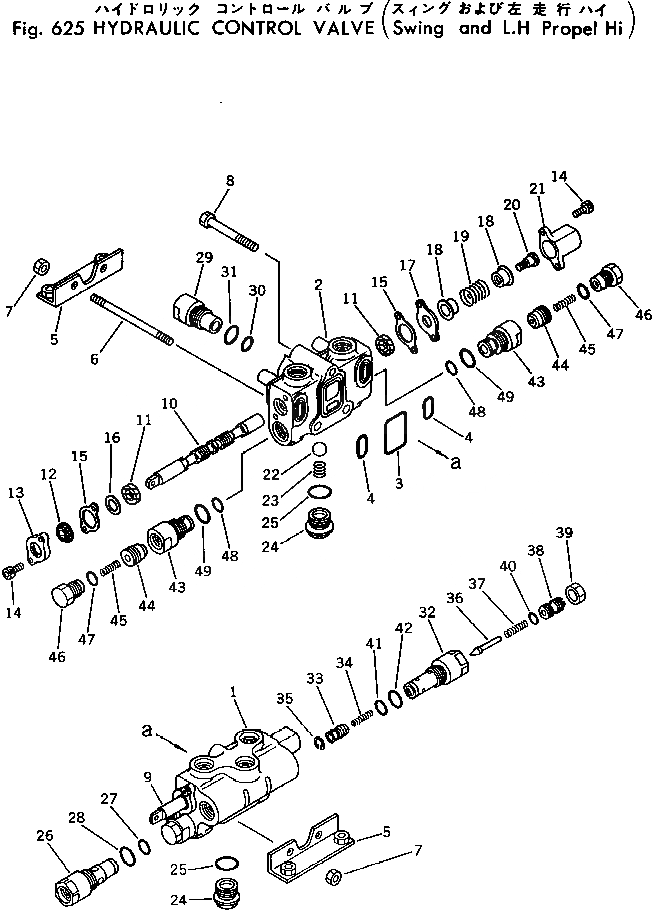

Запчасти Komatsu PC80-1 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (ПОВОРОТН. И ЛЕВ. PКАНАТL HI) ГИДРАВЛИКА

|$0

700-22-42000

VALVE ASS'Y

1

BODY

2

COVER

3

07000-13040

O-RING

4

700-22-11450

O-RING

5

700-26-11170

ANGLE

6

700-22-11211

STUD

7

01580-00806

NUT

8

700-22-11731

BOLT

9

SPOOL

10

SPOOL

11

700-22-11252

U-PACKING

12

700-22-11261

SEAL,DUST

13

700-22-11270

PLATE

14

01252-30616

BOLT

15

700-22-11420

GASKET

16

700-22-11430

COLLAR

17

700-22-11281

PLATE

18

700-22-11290

RETAINER

19

700-23-13130

SPRING

20

700-22-11320

PLUG

21

700-22-11331

COVER

22

700-22-12340

BALL

23

700-22-12350

SPRING

24

700-22-11351

PLUG

25

07002-12434

O-RING

26

700-22-11380

PLUG

27

07000-12014

O-RING

28

07002-02434

O-RING

29

700-22-11390

NIPPLE

30

700-22-11410

O-RING

31

07002-02434

O-RING

|$32

700-24-56000

VALVE ASS'Y,MAIN RELIEF

32

SLEEVE

33

VALVE

34

700-20-51430

SPRING

35

700-20-51240

RING,SNAP

36

POPPET

37

700-20-51350

SPRING

38

700-20-51340

SCREW

39

01583-01408

NUT

40

07000-02011

O-RING

41

700-22-11410

O-RING

42

07002-02434

O-RING

|$44

700-20-61002

VALVE ASS'Y,SUCTION

43

700-20-61111

SLEEVE

44

700-70-66122

VALVE

45

700-70-66130

SPRING

46

700-20-61140

PLUG

47

07002-11823

O-RING

48

07000-12014

O-RING

49

07002-02434

O-RING
