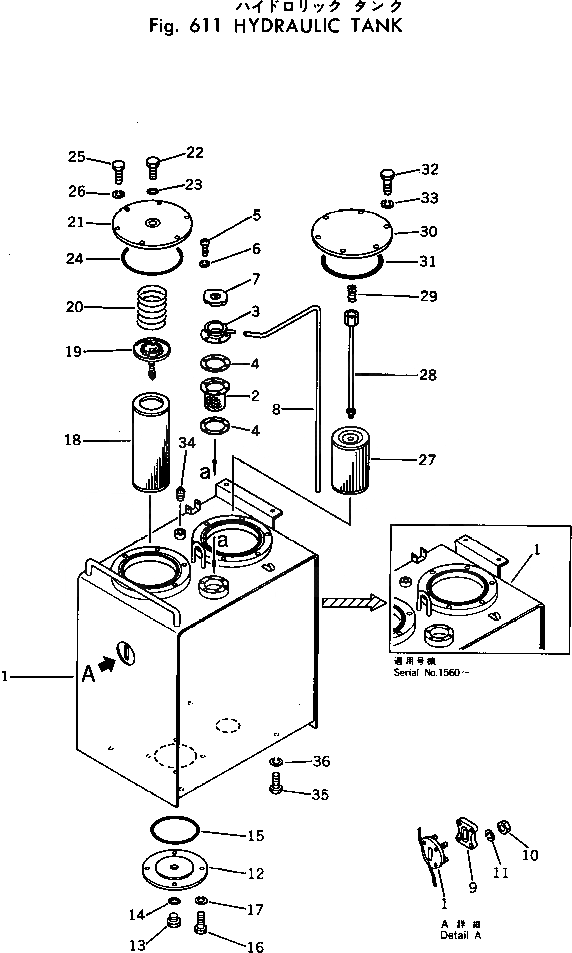

Запчасти Komatsu PC80-1 ГИДР. БАК. ГИДРАВЛИКА

|$0

20X-60-00011

TANK ASS'Y

|$1

20X-60-00010

TANK ASS'Y

1

20X-60-11111

TANK

1

20X-60-11110

TANK

2

205-60-51480

SCREEN

3

201-60-12171

FILLER,NECK

4

205-60-51460

GASKET

5

01220-40516

SCREW

6

01601-00513

WASHER,SPRING

7

201-60-12190

CAP ASS'Y

8

203-60-12170

TUBE

9

155-60-12300

LEVEL GAUGE ASS'Y,OIL LEVEL

10

01580-01008

NUT

11

01602-01030

WASHER,SPRING

12

20X-60-11120

COVER

13

07044-12412

PLUG

14

07002-02434

O-RING

15

07000-02140

O-RING

16

01010-31230

BOLT

17

01602-01236

WASHER,SPRING

18

203-60-12140

ELEMENT

19

203-60-12150

VALVE ASS'Y

20

154-60-12210

SPRING

21

203-60-21120

COVER

22

07060-11230

BOLT

23

07002-01223

O-RING

24

07000-05180

O-RING

25

01010-31030

BOLT

26

01602-01030

WASHER,SPRING

27

203-60-21140

ELEMENT

28

203-60-21130

ROD

29

144-854-1910

SPRING

30

205-60-12270

COVER

31

07000-05180

O-RING

32

01010-31030

BOLT

33

01602-01030

WASHER,SPRING

34

07042-20108

PLUG

35

01010-31230

BOLT

36

01605-11226

WASHER,LOCK
